Product Overview
SPECIFICATIONS
AC Output: 230V rated 320W Peak 600W
Application: Home Energy
Battery Capacity: 292Wh/80000mAh
Brand Name: LS
Charging Time: 6.5 hours with 15V/4A AC Adapter
Cycles: >800 times
DC Input: 5V-24V/5A
DC Output: 12V/10A(MAX)
High-concerned chemical: None
Model Number: FF Flashfish - A301
Nominal Capacity: 292WH(80000mAh)
Operation Temperature: -20°C~40°C
Origin: Mainland China
PD Type-C Output / Input: 100W
QC 3.0 Output: 18W
Set Type: Charger Sets

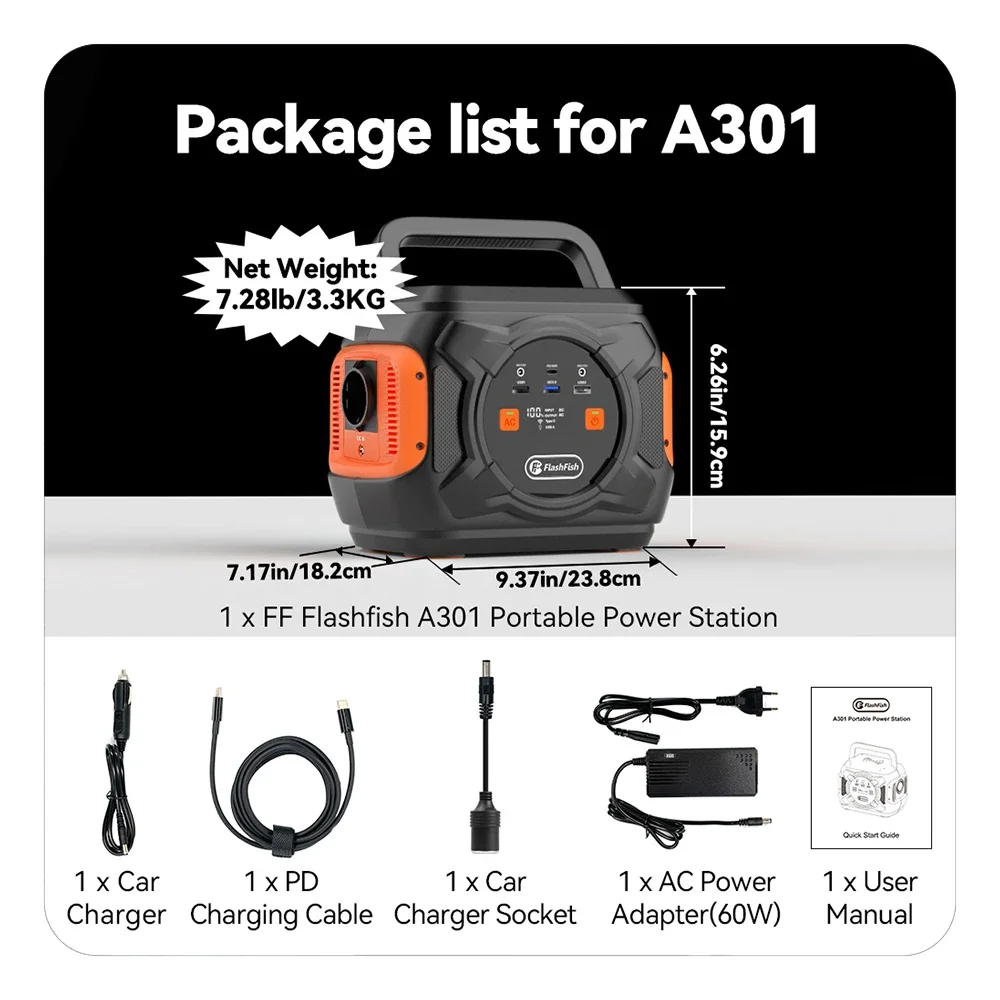

Size: 238*182*159mm
Solar Charging: 18V-24V/100W Recommended
Type: Li-Ion
USB-A Output: 5V/2.4A
Warranty: 12 months
Weight: 3.3KG
Wireless Charger: 10W

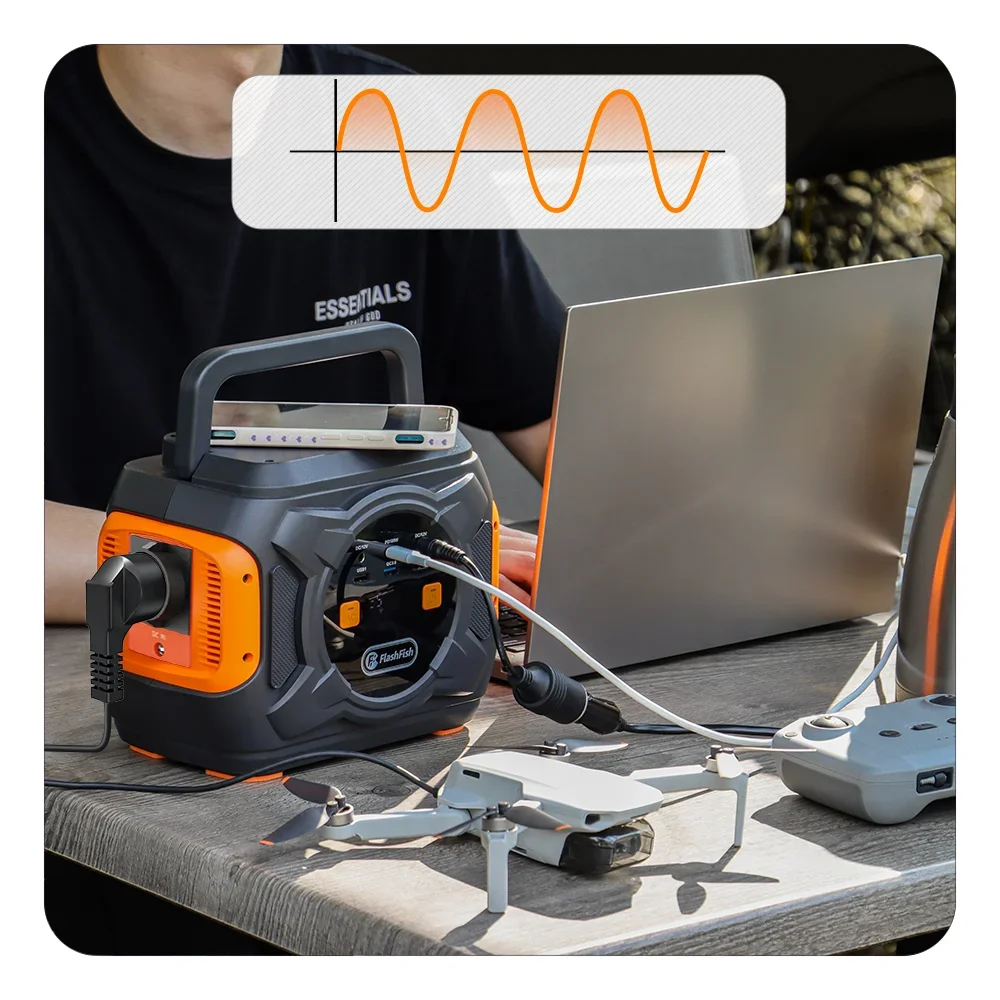

230V Pure Sine Wave
Pure Sine Wave Power Station is equivalent
to household AC, with the highest efficiency,
the strongest stability, and the best security.

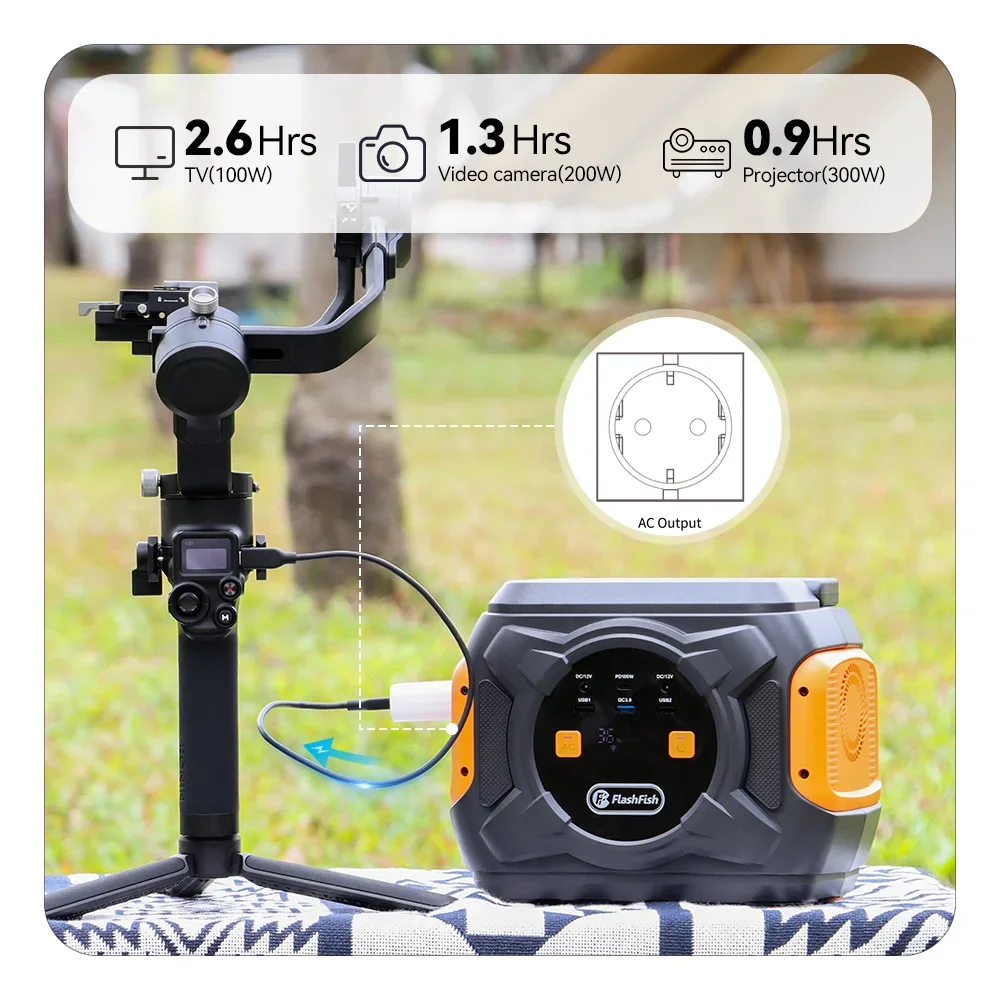

Total AC Continuous Output Power 320W
(Total Peak Output 600W:Only lasts about 30 seconds)
DC5521(x2) - 12V/10A, 120W
Max
Total 120W Max

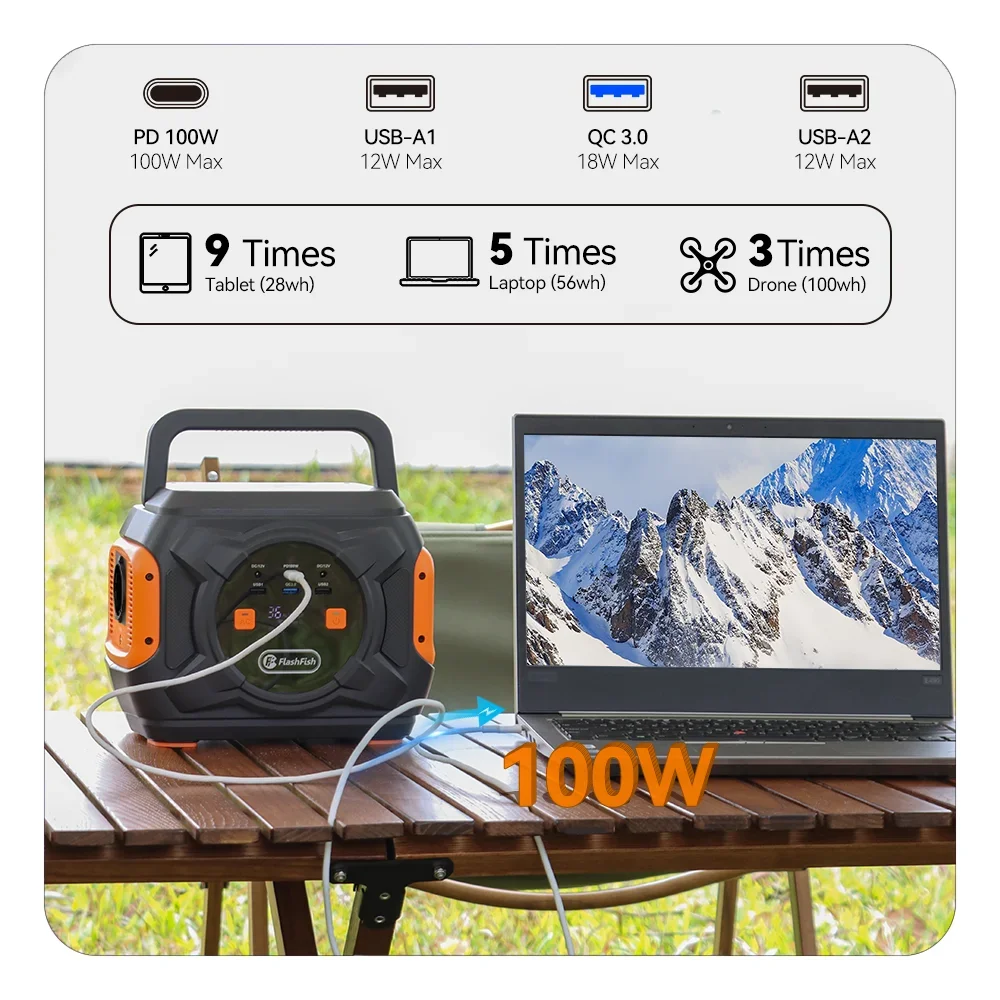

USB Output - Total 142W Max
USB-A1/A2: 12W Max
(5V/2.4A)
QC3.0: 18W Max
(5v3A/9v2A/12v1.5A)
PD Type-C: 100W Max
(PD3.0 5V3A/9V3A/12V3A/15V3A/
20V5A,100W Max;PPS 3.3-21V 5A)
Put It Down, Chage It Up!

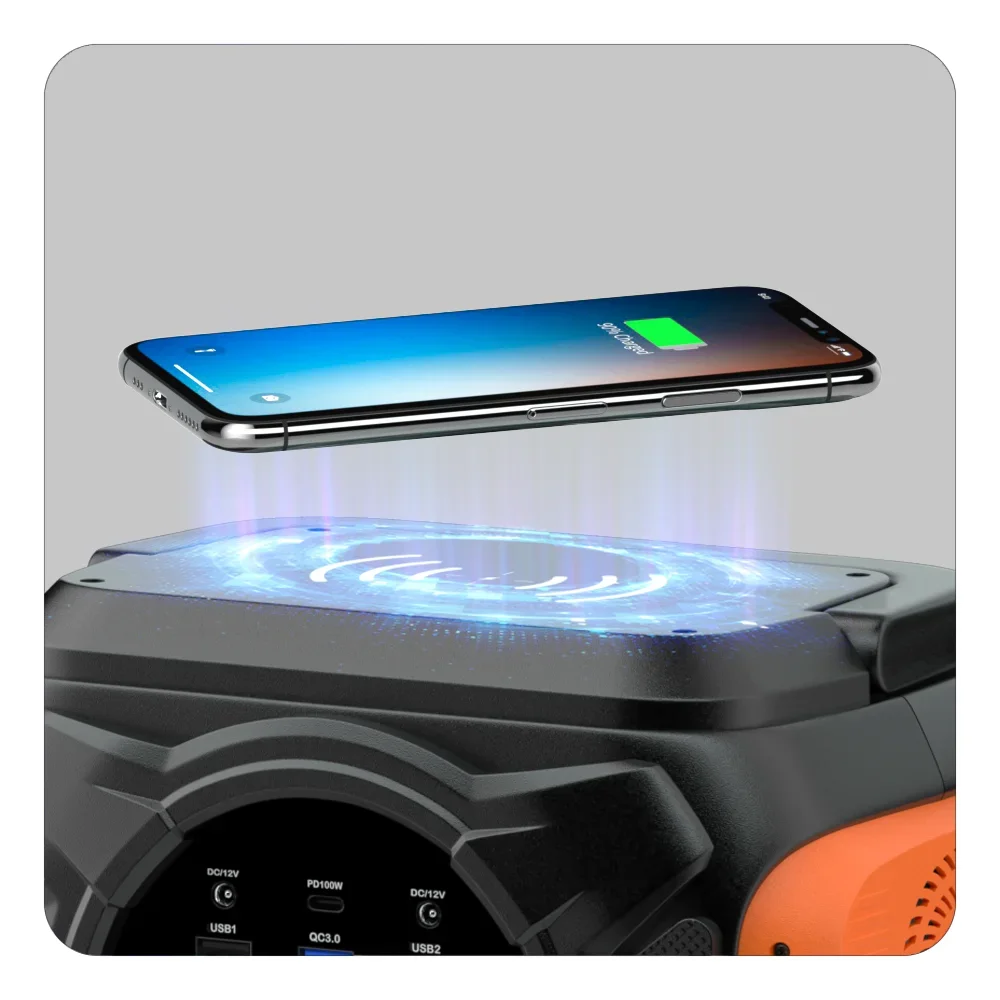

10W Wireless Charging

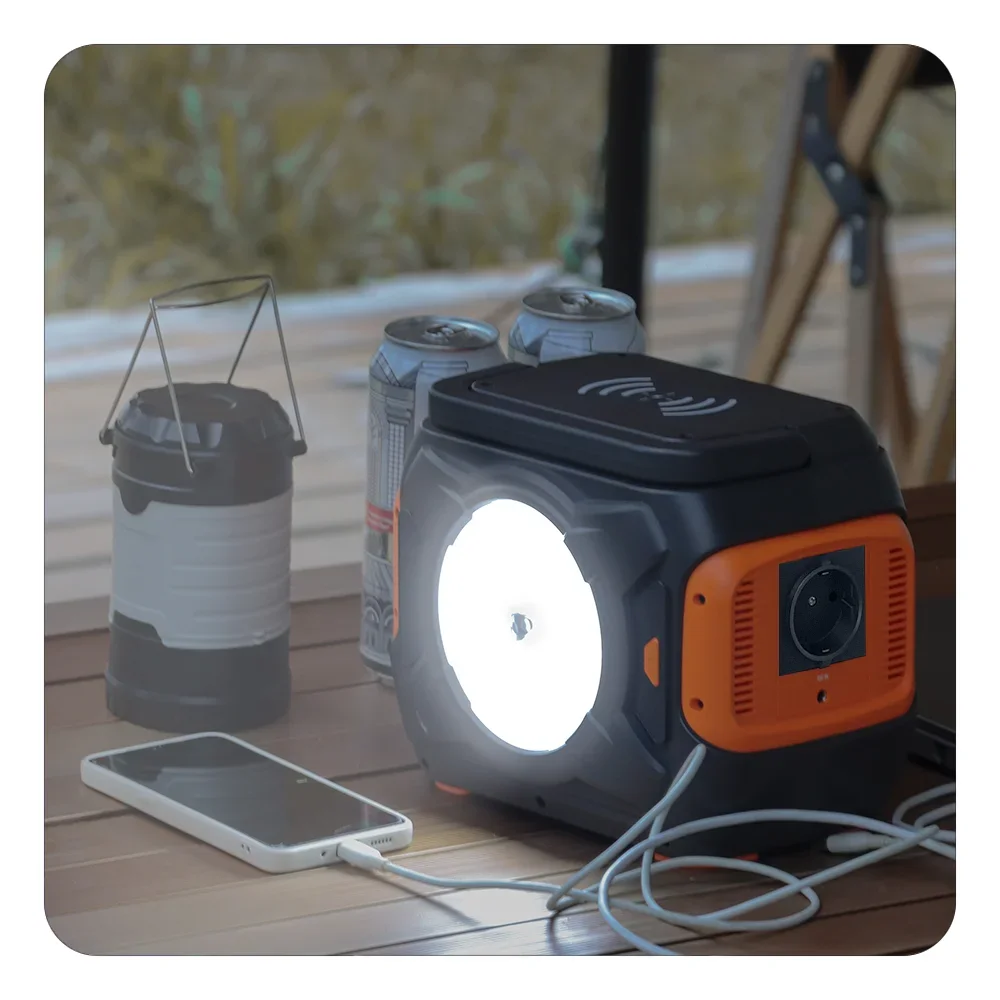

Helper in the dark - 6 Modes
Short Press: Weak/Medium/Strong/SOS/Strobe
Long press 3s: Spot Light mode
√ About DC Input(5.5*2.1mm port; 5V-24V/5A; 100W Max)

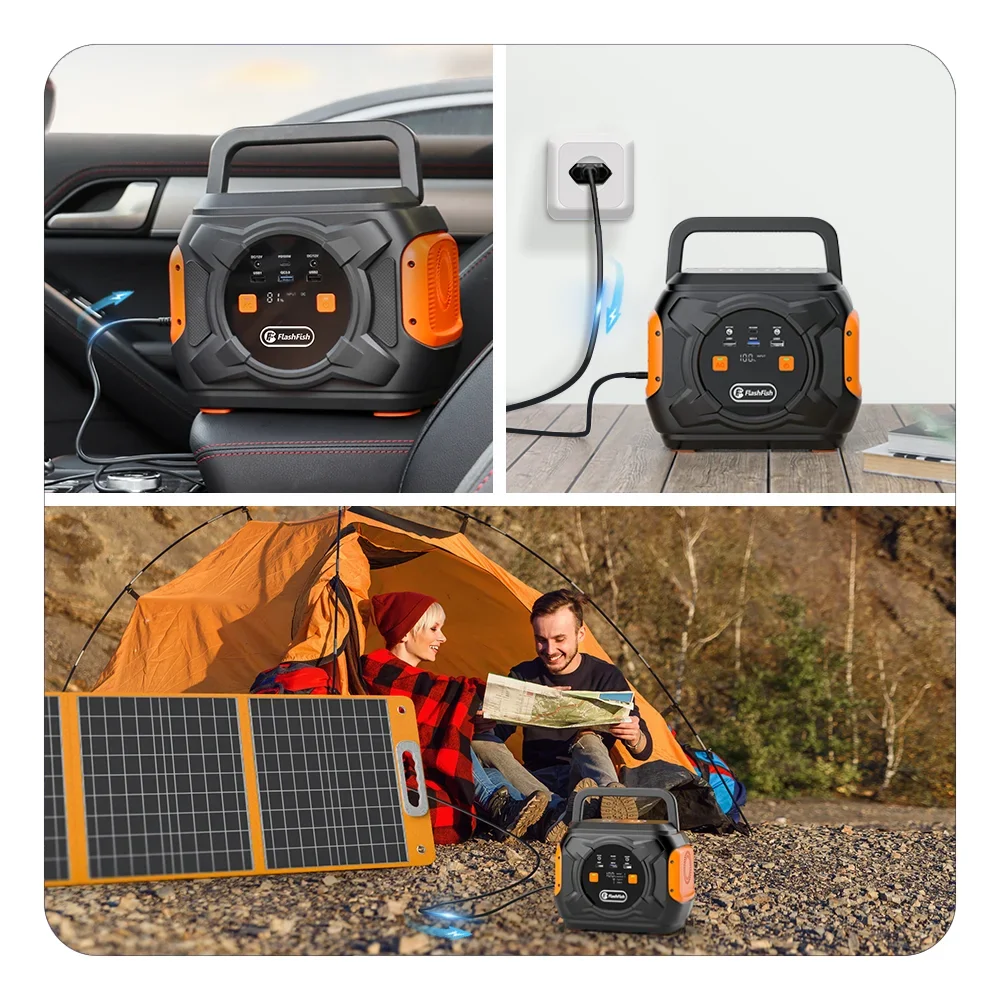

Three charging methods
1.Adapter (Package included)
DC15V/4A (Approx 6.5h)
2.12V Car Charger (Package included)
through 12V Car (Approx 5.9h)
3.Solar Panel (Package not included)
18-24V;100W~200W recommend
(≥166W Solar Panel,Approx 3.6h)

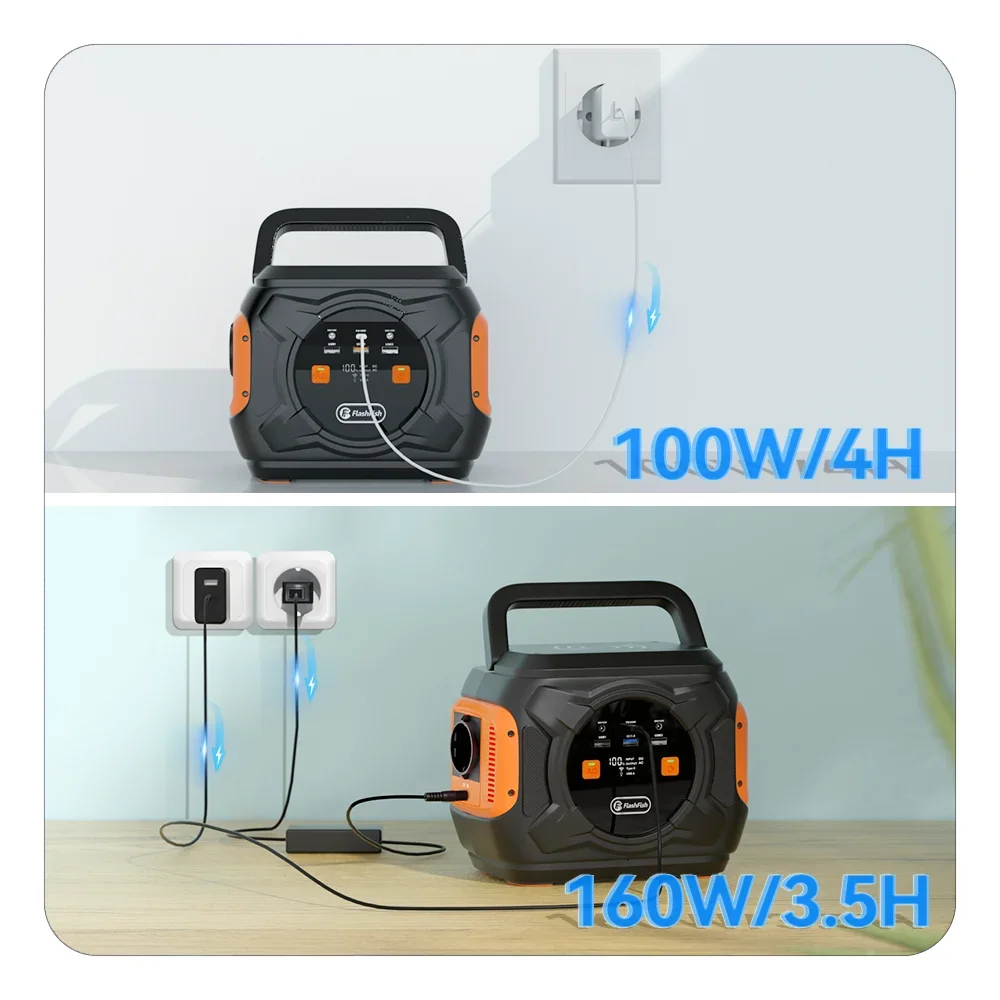

√ PD Type-C Input: 100W Max(Approx 4h)
(Package: PD Cable included, PD charging plug not included)
√ DC input(Adapter) + PD input: 160W Max(Approx 3.5h)

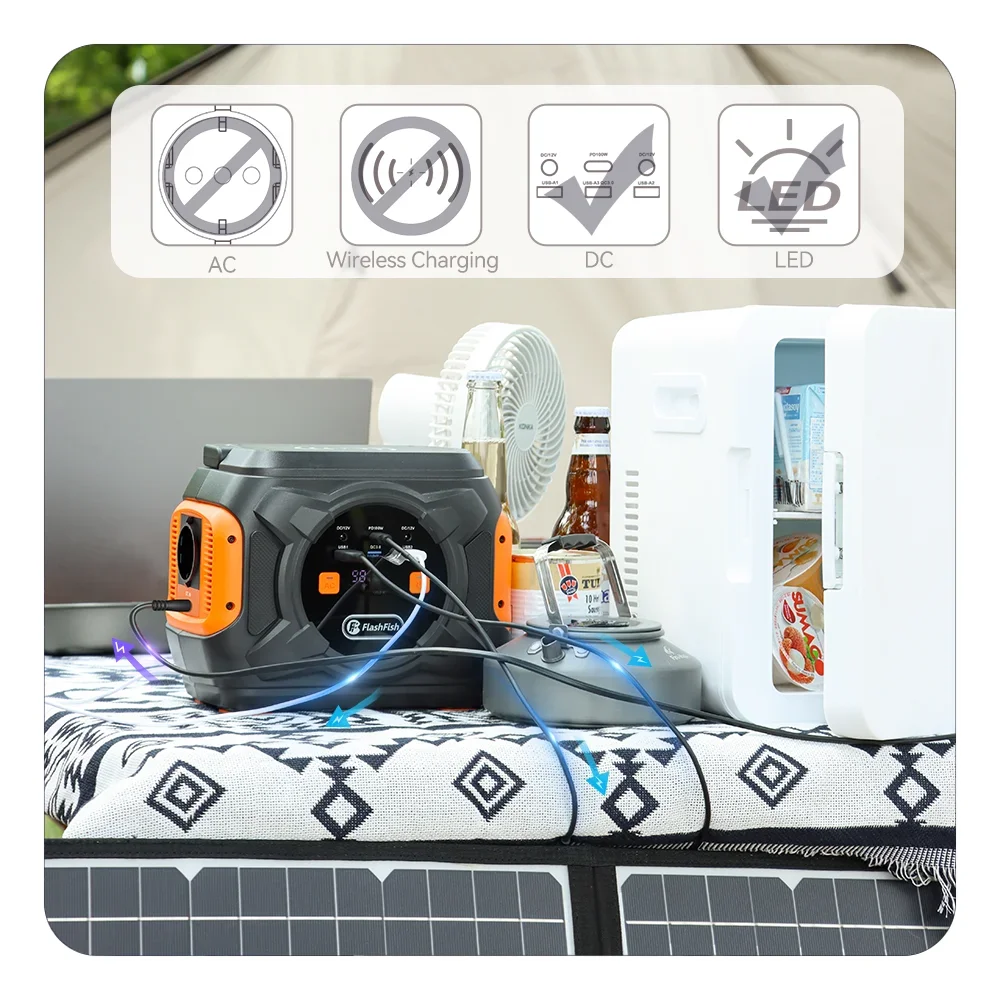

When charging, DC, USB and LED can be used normally,
but AC and wireless charging cannot be used.

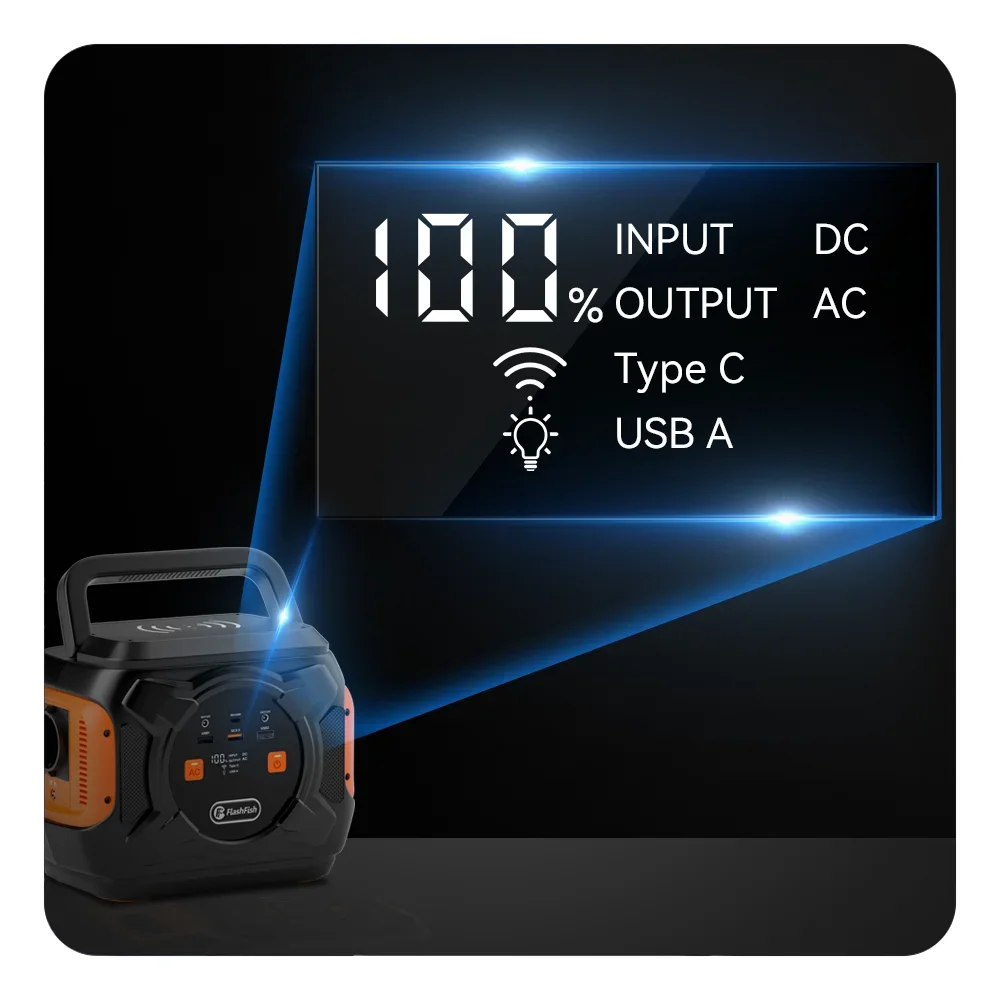

The LED screen clearly
displays All the parameters

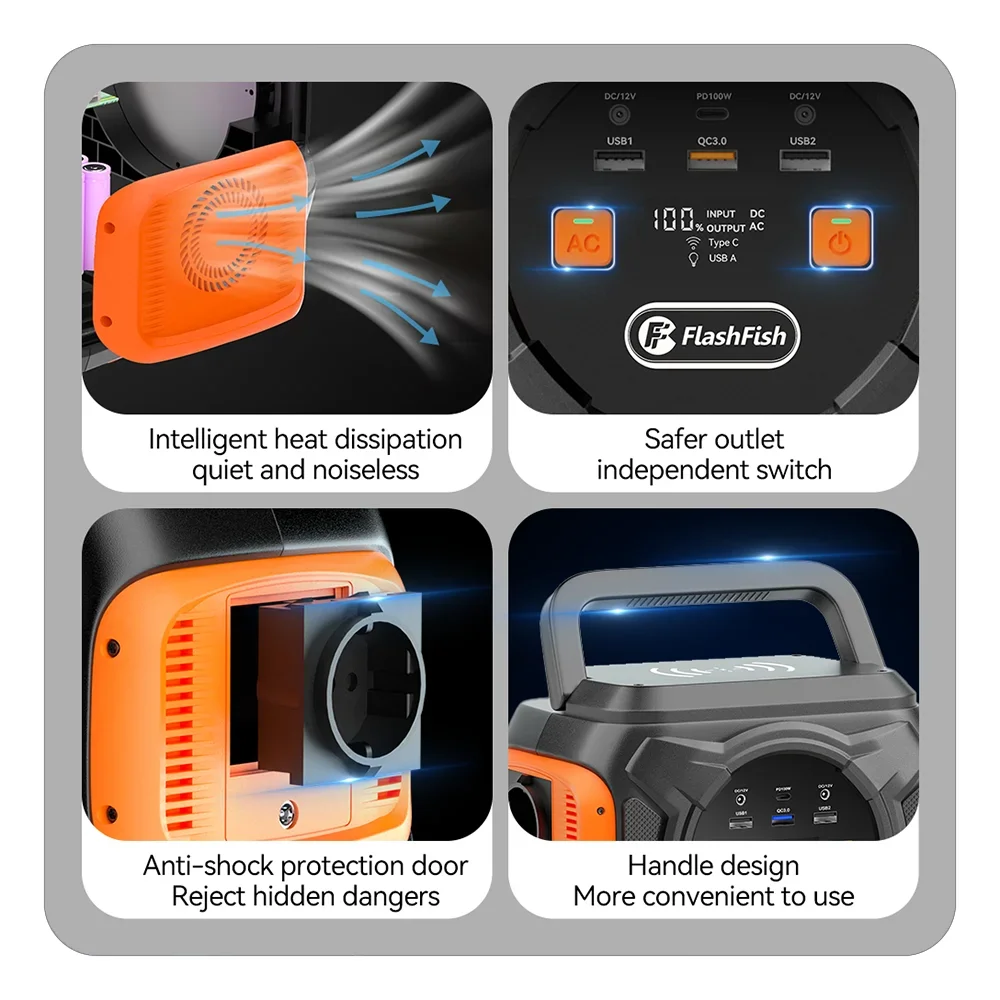

The details of ingenuity
FAQ:
Q1: What devices can use FF Flashfish A301?
A1:
Notice:
Rated power: The maximum output power that a mechanical device can achieve.
Peak power: The maximum power that can be achieved in a short period of time, usually only for about 30 seconds.
AC Output - Total Rated Power 320W Peak Power 600W
1. Only electrical appliances with a total rated power of less than 320W can be started (such as TVs, stereos, laptops)
2. It can only be started when the total starting power is less than 600W.

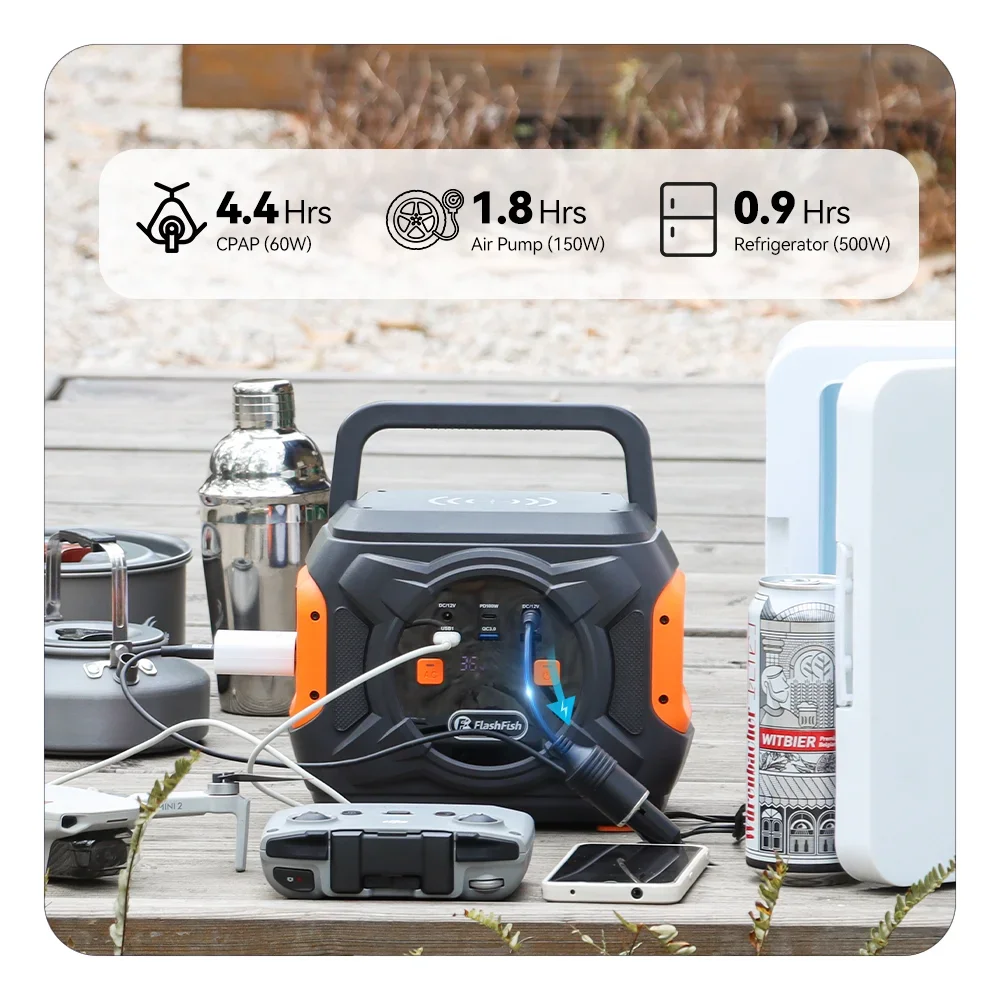

Appliances with motors need to take into account peak power (instantaneous power at start-up).
Such as refrigerators, soybean milk machines, air pumps, vacuum cleaners, printers, etc. Their peak power is generally "rated power *3 or *5". (for reference only; actual peak power: please refer to the equipment manual, or consult the equipment seller)
USB Output - Total 142W Max
USB-A1/A2: 12W Max (5V/2.4A)
QC3.0: 18W Max (5v3A/9v2A/12v1.5A)
PD Type-C: 100W Max (PD3.0 5V3A/9V3A/12V3A/15V3A/20V5A,100W Max;PPS 3.3-21V 5A)
DC Output - Total 120W Max
DC5521(x2): 12V 10A,120W Max
Once exceeded, the plant will be in protection mode. We need to charge it with a wall charger to reset it. (Multiple activations: full charge + full discharge)
If it exceeds the protection threshold too much, it may burn the fuse, and then burn the machine. It is recommended that you confirm the rated power and starting power of the device before plugging it in.
