Product Overview
SPECIFICATIONS
AC Output Frequency: 50Hz/60Hz±2Hz
AC Output Socket: Universal Socket
AC Output Voltage: 220V/110V±15%
Application: LED,Home&Outdoor&Emergency&Camping
Battery Type: Lead-Acid
Brand Name: ZRGAE,GREENMORE
Certification: FCC/CE/ROHs/UN38.3/MSDS
Charging time: the battery capacity reaches 100% after 6 hours of charging
Controller Type: MPPT
Cycle life: 3000 Times
DC Output Voltage: DC5V2.4A,2*USB:DC12V3A,2*DC5521
High-concerned chemical: None
Inverter Type: Modified Sine Wave
Model Number: 12.8V,GL0151/Eg008Pb
Nominal Capacity: 1440mAh
OEM/ODM: Accepatable
Place of Origin: Zhejiang, China
Power Source: AC Adaptor, Car, Solar Panel, Other

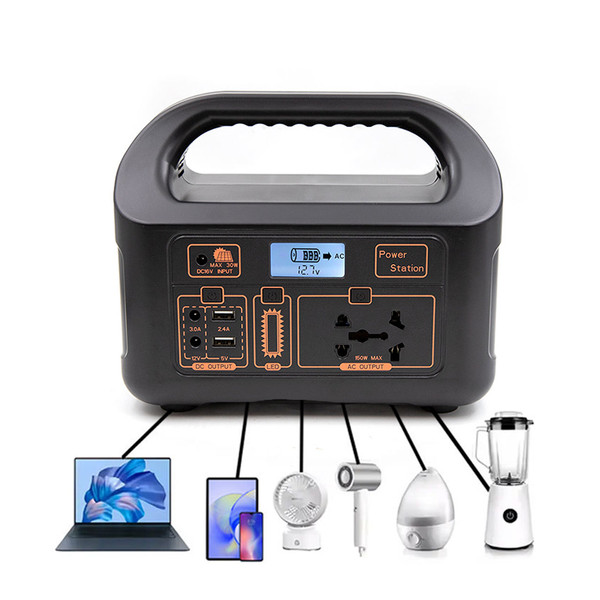

Product name: Backup Power Supply Emergency Silent Solar Electric Generator
Set Type: Charger Sets
Special Features: Type C, Flashlight
Type: Li-Ion
|
GL0151 Technical Parameter Table
|
|
|
|
|
||||
|
Model
|
GL0151
|
|
|
|
||||
|
Rated Power
|
200W
|
|
|
|
||||
|
Output Waveform
|
Modified Sine Wave
|
|
|
|
||||
|
AC Output Voltage
|
220V/110V±15%
|
|
|
|
||||
|
AC Output Frequency
|
50Hz/60Hz±2Hz
|
|
|
|
||||
|
Conversion Efficiency
|
Maximum Value>90%
|
|
|
|
||||
|

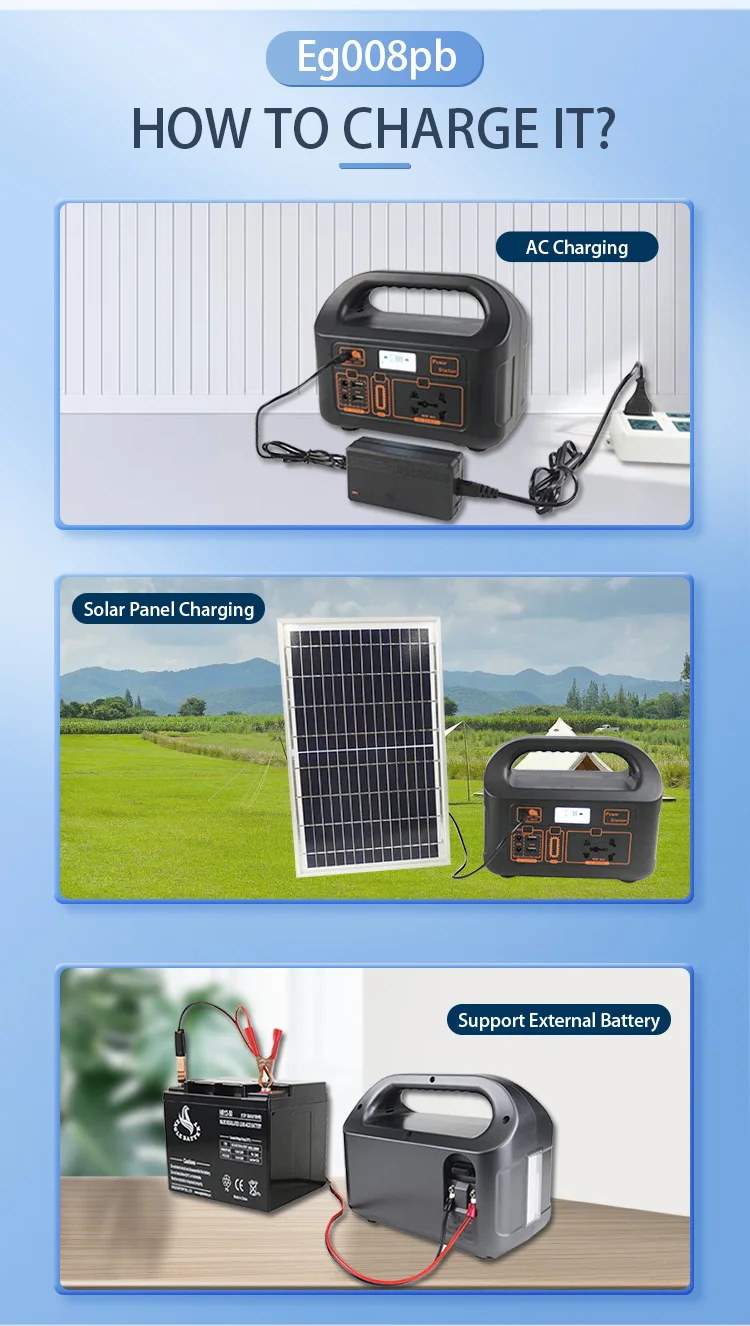

Charging Interface
|
External Charger Port and Solar Panel Charging Port DC5521* (Built in solar intelligent controller)
|
|
|
|
||||
|
AC Output Socket
|
Universal Socket
|
|
|
|
||||
|
DC Output Voltage
|
DC5V2.4A，2*USB:DC12V3A，2*DC5521
|
|
|
|
||||
|
LED Light States
|
1:100%Luminance 2:50%Luminance 3:Flashing 4:Off
|
|
|
|
||||
|
Battery Type
|
Lead-Acid Maintenance-Free Battery
|
|
|
|
||||
|
Battery Capacity
|
12V 12Ah
|
|
|
|
||||
|
SolarPanel Specifications (optional)
|
18V 30W(Optional)
|
|
|
|
||||
|
Charging Current
|
Maximum Value 2A
|
|
|
|
||||
|
AC Charger Specifications
|
14.4V1A
|
|
|
|
||||
|
Charging Time
|
After full discharge, the battery capacity reaches 80% after 10 hours of charging
|
|
|
|
||||
|
LCD
|
Battery Capacity, Battery Voltage, State of Charge, State ofDischarge
|
|
|
|
||||
|
Heat Dissipation
|
Intelligent Temperature Control Cooling Fan
|
|
|
|
||||
|
Noise
|
1 Meter Distance < 45 dB
|
|
|
|
||||
|
Protection Functions
|
Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit
|
|
|
|
||||
|

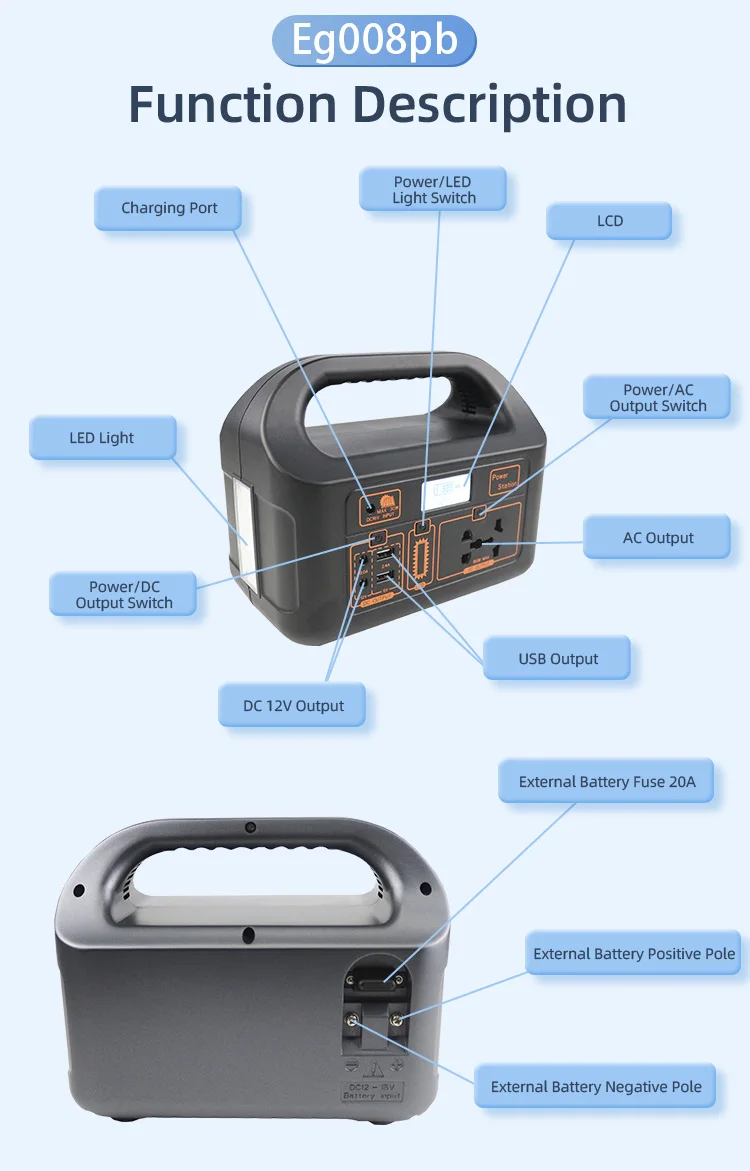

Product Features
|
1.DC/AC fully isolated
2.High frequency design, small size.
3.Pure copper transformer, high efficiency, low no-load loss 4.Microprocessor,digital control, all-round protection. 5.Built-in solar charger, intelligent charge and discharge management 6.AC output and DC output have independent switch fction |
|
|
|
||||
|
EnvironmentalCharacteristics
|
|
|
|
|
||||
|
Operating Ambient Temperature
|
-10~40℃
|
|
|
|
||||
|
Operating Environment Humidity
|
10~85%
|
|
|
|
||||
|
Storage Ambient Temperature
|
-20~70℃ Without Condensation
|
|
|
|
||||
|
Storage Environment Humidity
|
5-90%
|
|
|
|
||||
|
Structural Characteristics
|
ABS Fireproof Enclosure
|
|
|
|
||||
|
Net Weight(kg)
|
≈4.2kg
|
|
|
|
||||
|

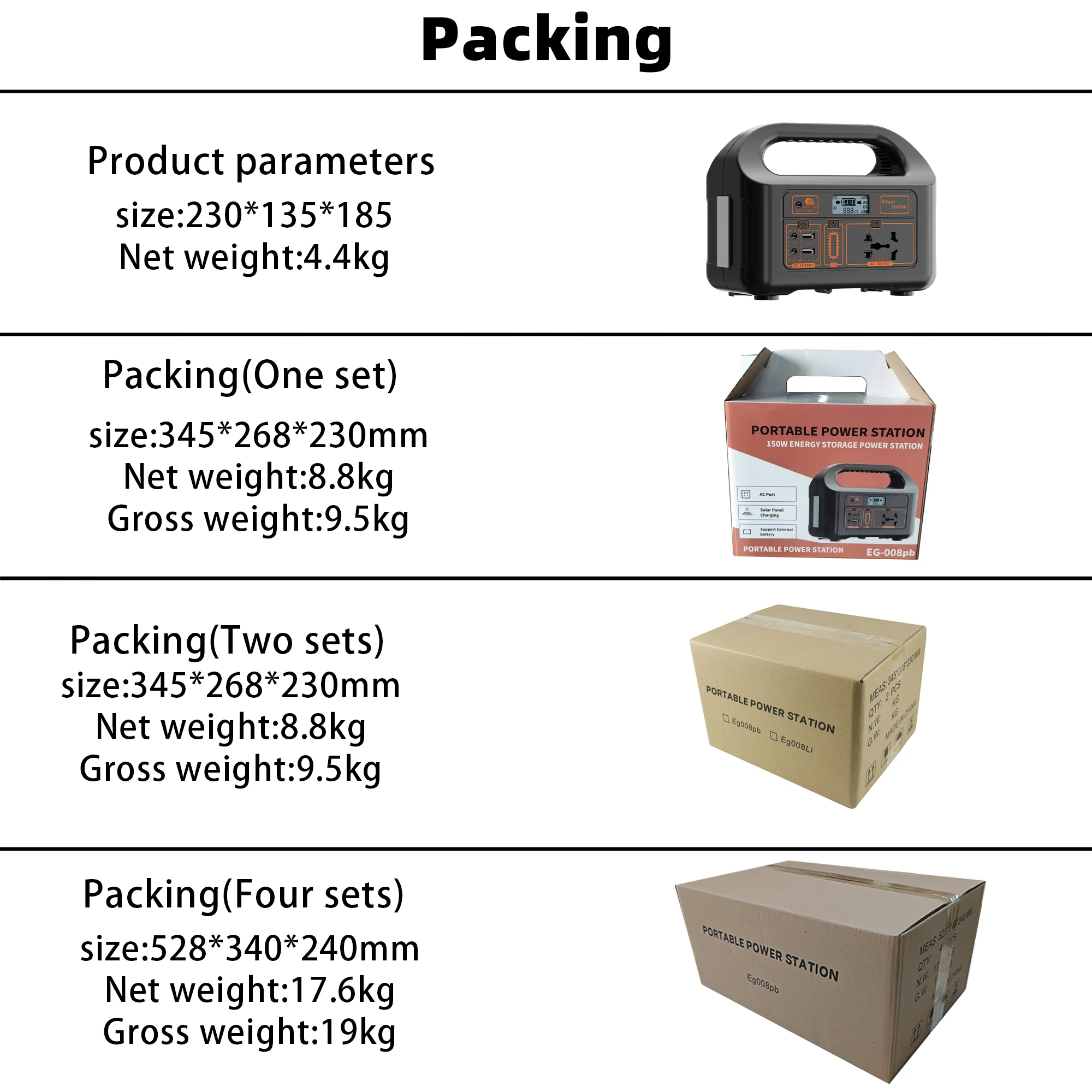

Product Size W*D*H(mm)
|
230*135*185
|
|
|
|
||||
