SPECIFICATIONS

Battery: 2 * CR123

Brightness Levels: good

Camera Frame Rate: FOM1300

Display: 800x600 px

E-zoom: 1x, 2x, 4x

Function: Day & night outdoor observation

Fused working time: 2h

Gen2 image tube: 45-58 lp/mm

Magnification: 1x

Objective focus: 26mm

Polarity control: white hot, black hot, multiple color mode

Resolution: 45-58 lp/mm

Thermal sensor: 384 x 288 px

Waterproof rate: IP67 (optional)

brand name: Roevision

customized support: OEM,ODM

magnification: 1x

measure range: 500M

place of origin: Guangdong, China

size: 160x68x101

type: Low light & thermal fusion scope

warranty: 1 Year

weight: 480g

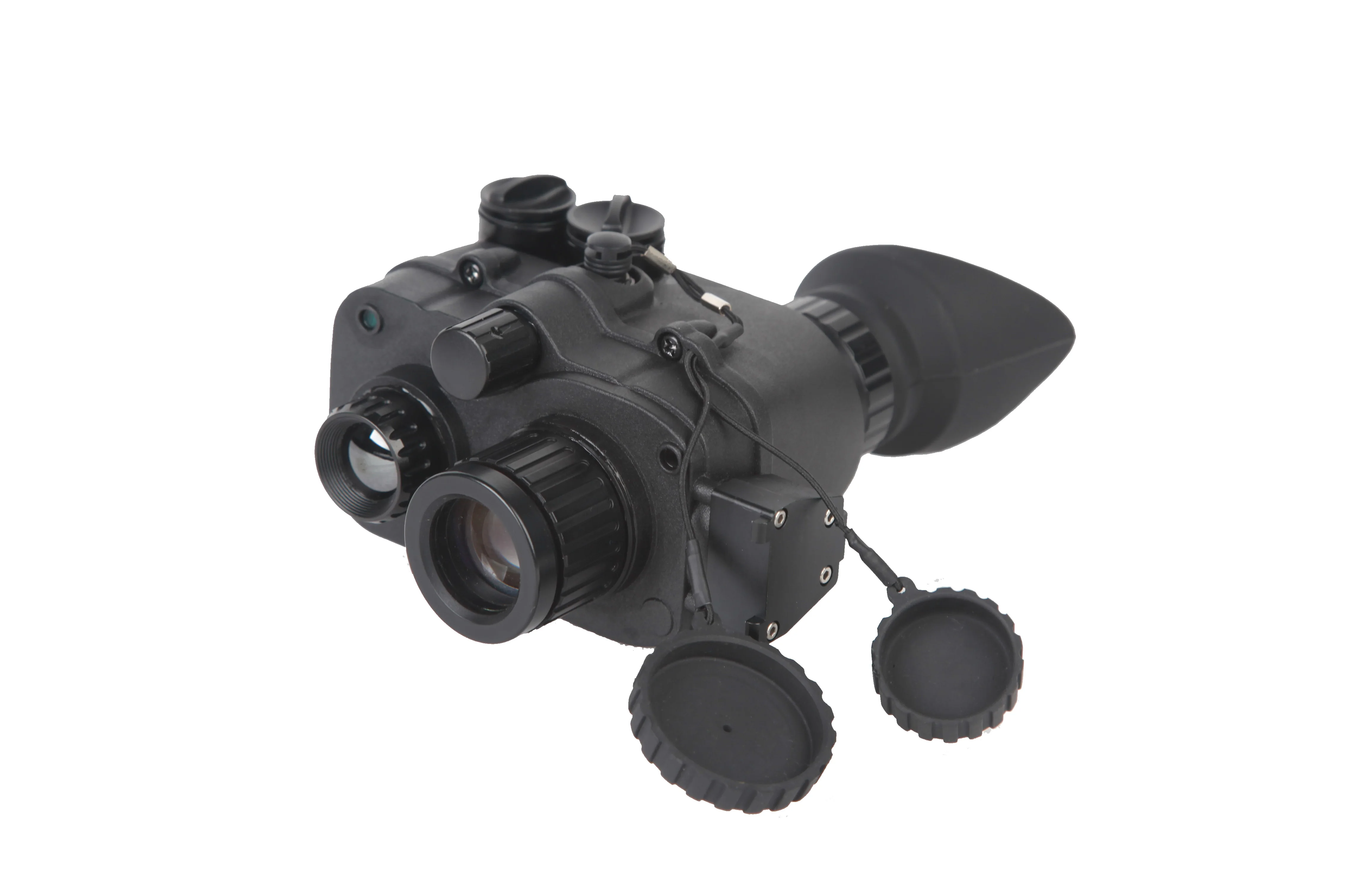

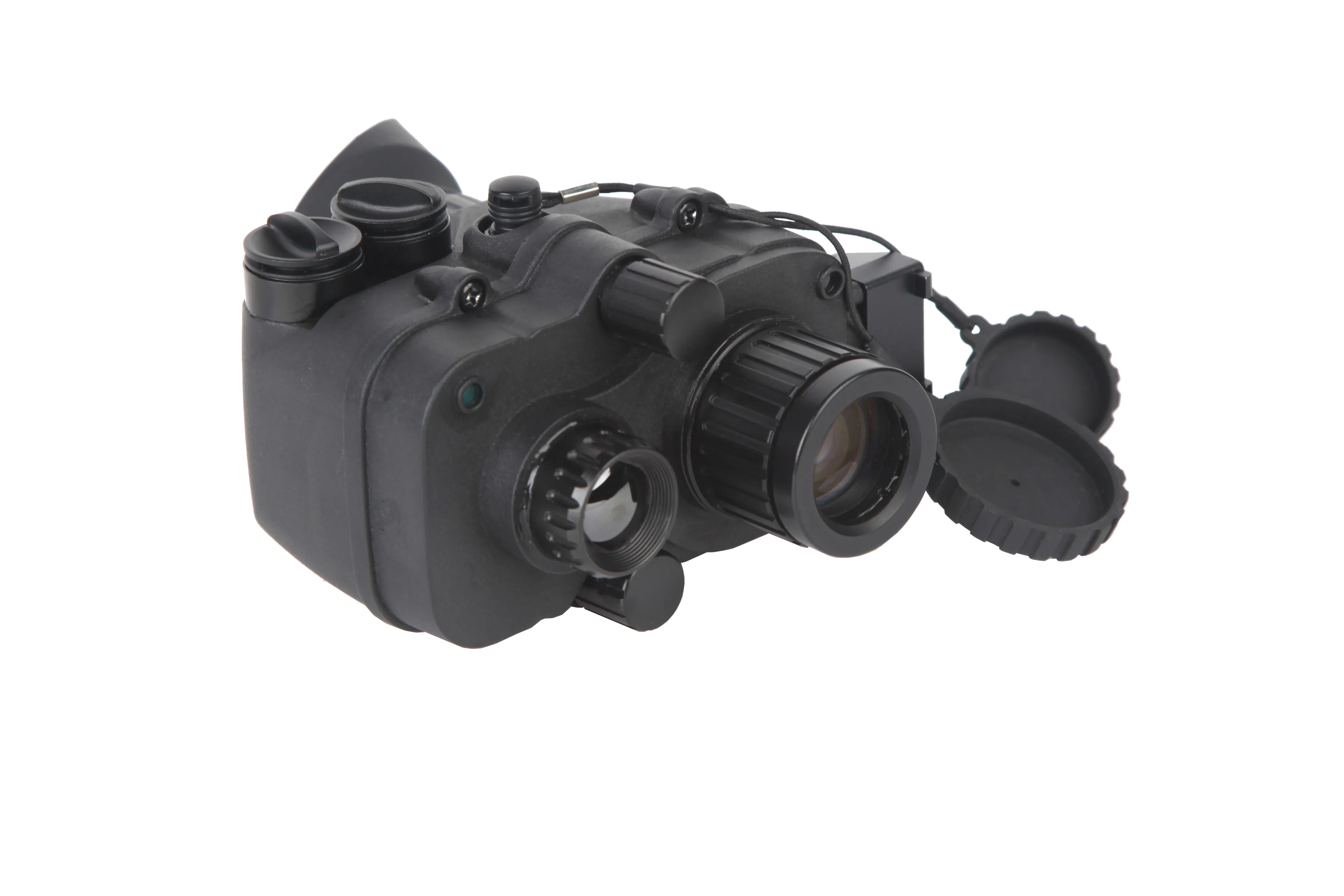

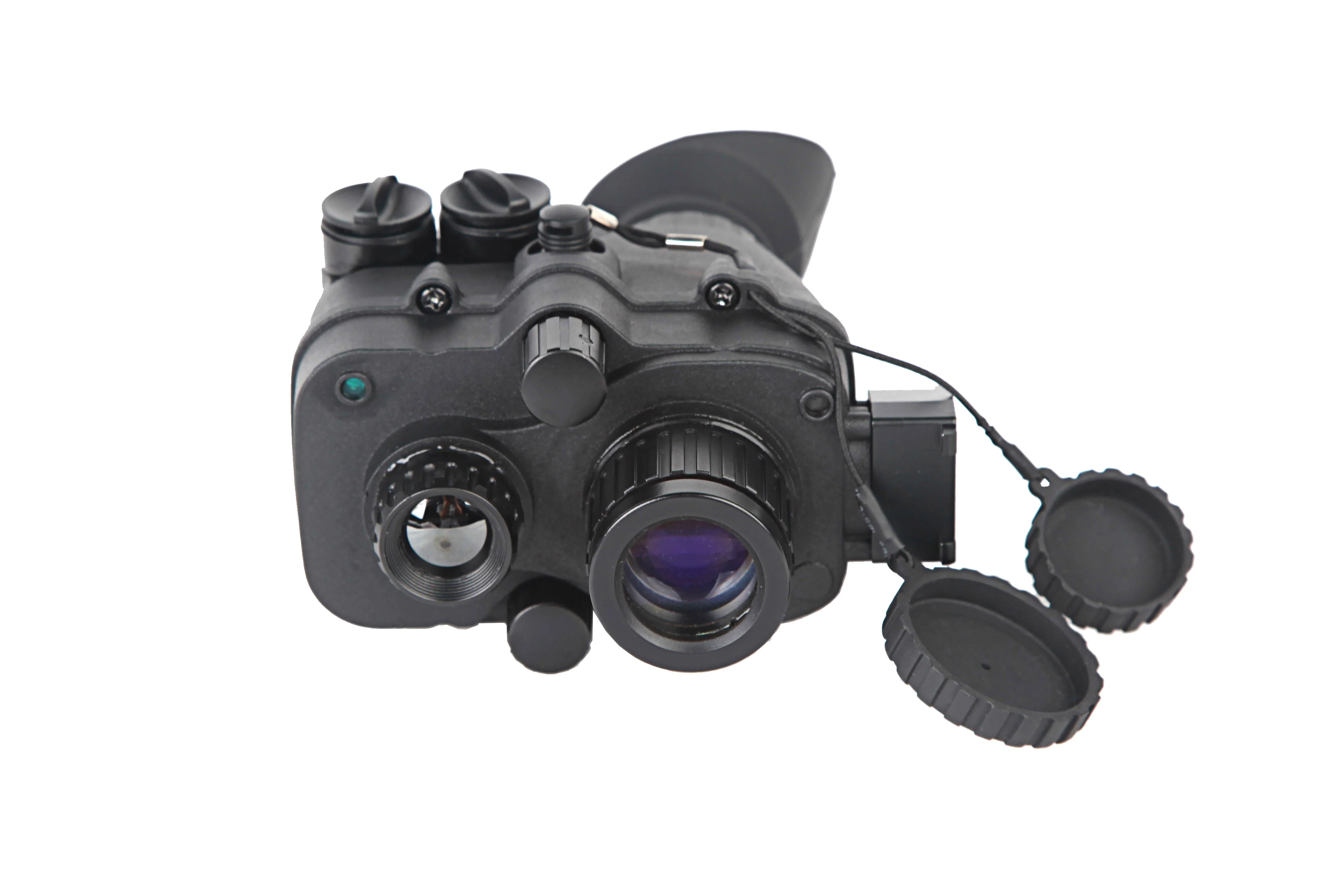

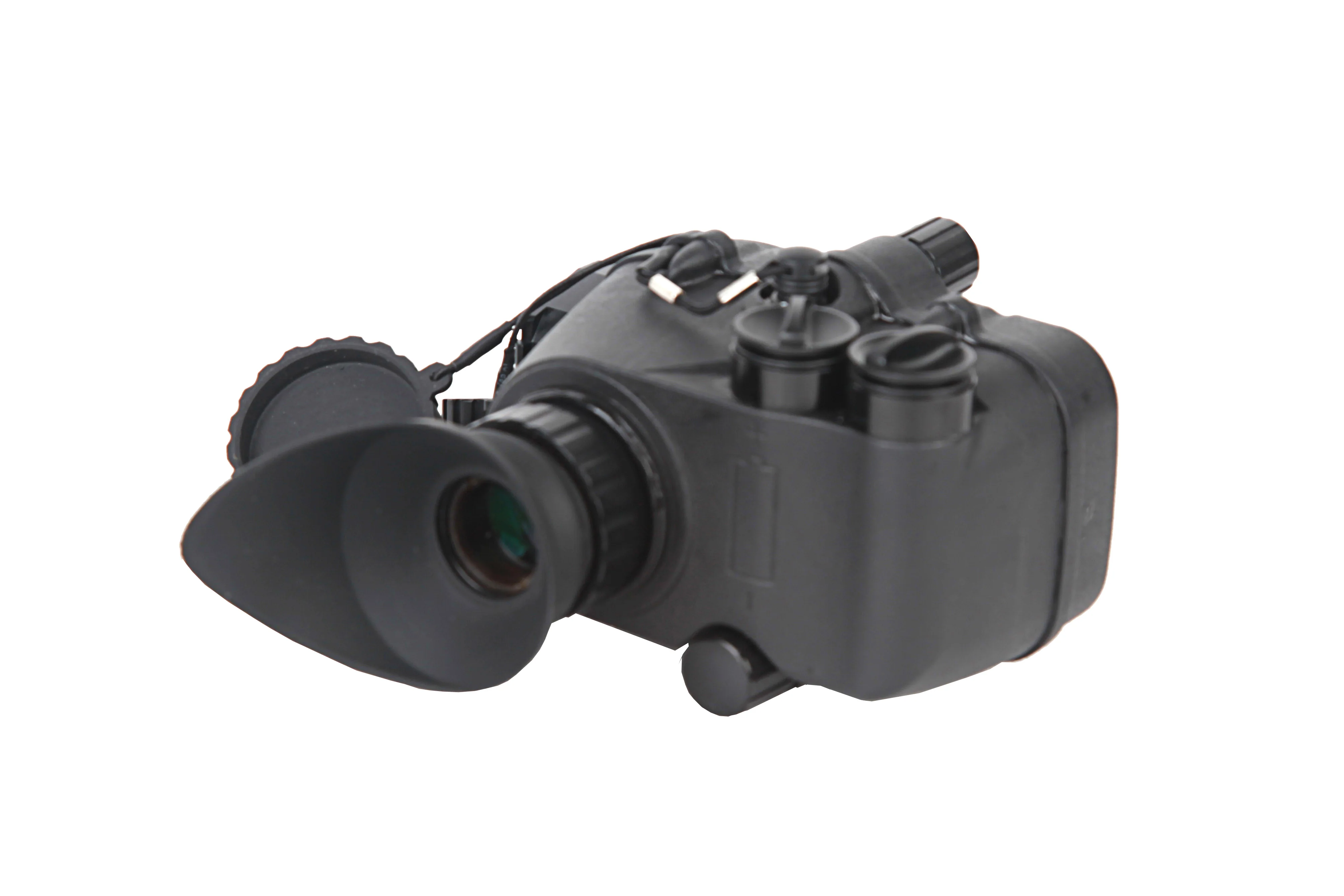

Handhold head-mounted thermal and low-light coupling is a small-sized monocular. It is a technology that use uncooled thermal and low-light to make image coupling by combined mirror , with small in size, light weight, easy to carry etc features.

By using the low light and infrared thermal image coupling, it can highly enhance the detective and identify ability of the night vision devices.

Features

Hand held or head/helmet mountable

lmages from NV or TI channels can be used separately or dichoptically fused

High quality optics

Can be attached to the optional helmet mount

Waterproof
