SPECIFICATIONS

AC Charging Input: > 3000W

Application: Home Energy

Brand Name: ChinTiyan

Certification: CE,RoHS,FCC

Connection: Other

Display screen: Yes

High-concerned chemical: None

Model Number: BH0404A

Net Weight: > 50Kg

Nominal Capacity: 3840Wh

Origin: Mainland China

Replacement Battery: No

Set Type: Charger Sets

Size: 58*36*49CM

Solar Charging Input: 500W - 1000W

Type: LiFePO4

SPECIFICATIONS

Nominal Output Power: 3600 W

Surge Output Power: 5700 W

Wave Form: Pure Sine Wave

Output Frequency and Voltage: 50/60Hz, 220/230/240V; L+N+PE

Overload Capacity (Battery Mode): 60s@120%~110% load; 10s@130%~150% load; 0.2s>150% load

Battery Mode Energy: 384 Wh

Battery Type: LiFePO4

Cycle Life: >6000 Cycles (Test conditions: 0.5C Charging/Discharging @25°C)

Max.AC Input Power: 2800 W

Max.PV Input Power: 3000 W

Max.PV Input Current: 18 A

MPPT Range @Operating Voltage: 40-430 V

Switch Time: 10 ms (normal mode) / 10 ms (UPS mode)

Output Jack: Waterproof 10A, Waterproof 16A

HM(Smart): LCD

Dimensions(W*H*D): 574*351*487 mm

Net Weight: 48 kg

Charging Temperature Range: 0-55°C

Discharging Temperature Range: -20-55°C

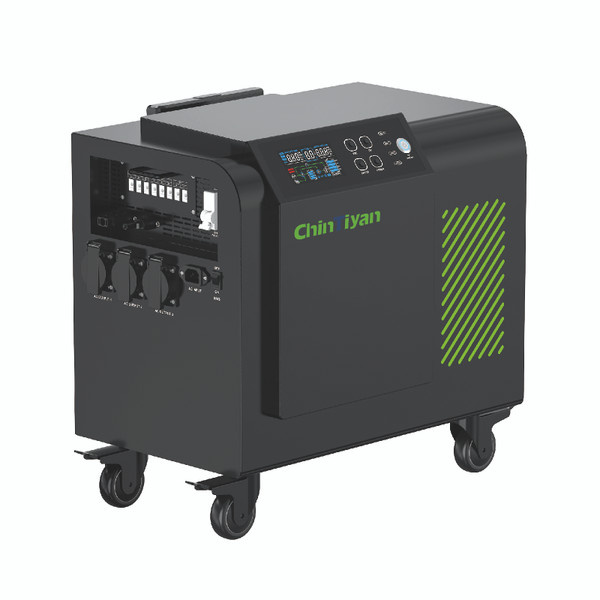

Package: 1pcs BH0404A 3600W 3840Wh Trolley Portable Energy Storage Station
