Product Overview
SPECIFICATIONS
Bore*Stroke: 62*46mm
Brand Name: YAMABISI
Condition: New,New
Control system: Tiller
Cylinder: 1
Cylinders: 1
Dimensions (L x W x H) (mm): 625*333*1043mm
Displacement: 139cc
Engine: 4 Stroke
Engine Position: OUTBOARD
Fuel Type: Gasoline
Fuel tank capacity: 1.1L
Full throttle operating range: 4500~5500r/min
Gear positions: Forward-neutral-Reverse
Idling speed: 1400-1600r/min
Maximum output: 4.4KW (6HP)@5000r/min
Model Number: AYF6
Place of Origin: Jiangsu, China
Purpose: power for boat
Starting System: Manual tilt

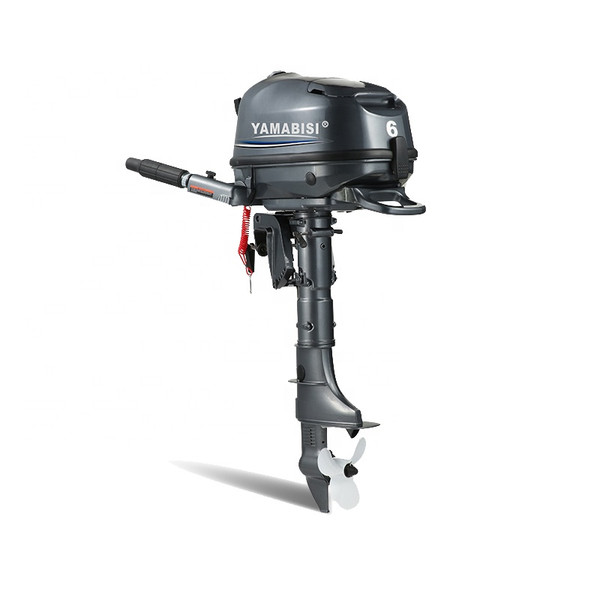

4 stroke 6HP 9.8HP 9.9HP 15HP 20HP 60HP Outboard Motor Marine Engine

Name | 4 stroke 6HP 9.8HP 9.9HP 15HP 20HP 60HP Outboard Motor Marine Engine | |
Type | water cooled gasoline outboard motor | |
Model | AYF6 | |
Transom height | 433mm | |
Net Weight: | S: 27KG | |
Full throttle operating range: | 4500-5500r/min | |
Maximum output: | 4.4KW (6HP)@5000r/min | |
Idling speed: | 1400-1600r/min | |
1 Cylinders | ||
Displacement: | 139cc | |
Bore×Stroke: | 62*46mm (2.44*1.81in) | |
Control system: | Tiller | |
Starting System: | Manual | |
Gear positions: | Forward-neutral-Reverse | |
Gear ratio: | 2.08(27/13) | |
Trim and tilt system: | Manual tilt | |
Fuel tank capacity | 1.1L | |
Engine oil | 0.6L | |
Gear oil | 100ml | |
Propeller spec | 3-7 1/7" x 8” | |
Size | 1115*635*460mm | |

















Q1. Are you original for Yamabisi boat engine?
A1. Yes, we are original Yamabisi and more than 8 years golden supplier on Alibaba.
Q2. Does one sample acceptable?
A2. Yes, MOQ is 1 set.
Q3. Does the motor can choose Long shaft or Short shaft?
A3. Yes, you can tell us you need long or short shaft before you place the order.
Long shaft is 560mm for the transom height
Short shaft is 433mm for the transom height
Q4. Does the motor can choose electric start?
A4. Yes,
recoil manual start, electric start
Tiller control or remote control,
can choose.
Q5. Do you provide OEM service? can we put our own logo on the machine?
A5. Yes, we offer OEM service. We can customize the logo carton design, user manual, etc.
Q6. What's the lead time?
A6. One sample is 1-5 days.
Mass production 7-15 days.
Q7. How is about warranty?
A7. Warranty is 2 year.
we have all spare parts,
and parts list for each motor.
Q8. What shipping methods do you offer?
A8. we can ship by sea, to sea port, or to door service. CIF or DDP
By air to door. DAP
Q9. What's your supply capability for outboard motor?
A9. 100pcs per day.
Q10. What is your advantage?
A10. 15 years machine production experience.
8 years service for exporting to all of the world.
9 persons team for design, research and development.
95% parts are developed and produced by ourselves.
12-18 tests for each separate parts.
5-8 program Match testing
