SPECIFICATIONS

Flight control: UMI BL F405

Frame: 10 Inches

Image Capture Resolution: 1500TVL low-latency FPV camera

Material: 3K T300 carbon fiber

Motor: 2807 1350KV

Net Weight: 540g

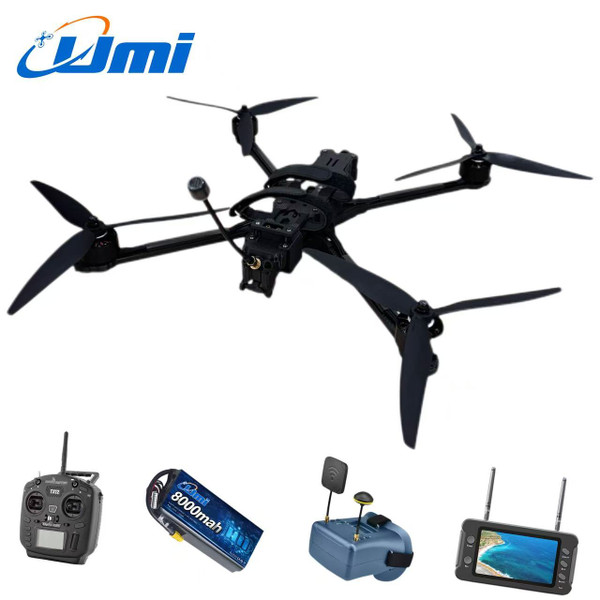

Product name: Rtf Rc Setup Fpv Drone

Propeller: 7035 (carbon fiber nylon)

Rated load endurance time: 14min 20s

Size: 276*242*45mm

Wheelbase: 312mm

battery type: 8000mah

brand name: UMI

channel: FPV

control type: Remote Control

drone type: Racing FPV Drone

function: With Camera

gyro: Customize

image transmission distance: 20KM

material: Carbon Fiber

maximum flight time: 14 min 6s

motor: Brushless Motor

place of origin: Guangdong, China

private mold: Yes

radio control style: Racing FPV Drone

video capture resolution: Other

Products Description

Description:

FPV Drones: Pilot Your Own Perspective.
First-Person View (FPV) drones are high-performance aircraft that put you in the cockpit. Wearing a headset, you see a live video feed from the drone's camera as if you were on board. This immersive experience, combined with acrobatic agility, allows for breathtaking maneuvers, high-speed racing, and capturing dynamic, cinematic footage that traditional drones can't match.

First-Person View (FPV) Drones: The Ultimate Fusion of Man and Machine.
An FPV drone is not just a flying camera; it's a high-speed, highly maneuverable RC aircraft designed for an immersive piloting experience. The core system consists of:

* The Drone: A lightweight, durable frame housing a powerful flight stack, high-KV motors, and a specialized FPV camera. Unlike camera drones, FPV drones are built for agility and speed, not stability.
* The Video Transmitter (VTX): On the drone, this broadcasts a low-latency analog or digital video signal to the pilot.
* The Goggles: The pilot wears FPV goggles, which receive the live video feed, creating a true "in-the-cockpit" feeling with an ultra-wide field of view.
* The Radio Transmitter: A handheld controller that the pilot uses to fly, often in a manual "acro" mode where the drone has no auto-leveling, granting complete control for complex tricks.

FPV drones are primarily used for:
* Freestyle: Performing flips, rolls, and dives in complex environments like forests or abandoned buildings.
* Racing: Competing at high speeds through intricate courses with other pilots.
* Cinematography: Capturing smooth, flowing, and dramatic shots for movies, commercials, and action sports.

Details Images

UMI 7Inch FPV

1. Net Weight: 540g 2. Frame: 7-inch frame 3. Wheelbase: 312mm 4.Size: 276mm*242mm*45mm 5. Material: 3K T300 carbon fiber 6. Flight control: UMI BL F405 (optional) 7. ESC: UMI 50A 4-in-1 8. Image transmission: UMI 5.8G 3W image

transmission (optional) 9. Camera: UMI1500TVL low-latency FPV

10. camera (optional) 11. Motor: UMI 2807 1350KV 12. Propeller: 7035 (PC) 13. Recommended battery: 6S 8000 10-50C XT60 plug

UMI 10inch FPV

1. Net Weight: 793g 2. Size Inch (mm): 420*420*60 3. Frame: 10Inch Frame 4. Wheelbase: 396mm 5. Flight Control: UMI BL F405 (Optional) 6. ESC: UMI 60A 4-in-1 7. Video Transmission: UMI 5.8G 3W Video

8. Transmission (Optional) 9. Camera: UMI1800TVL Low Latency FPV Camera (Optional) 10.Motor: UMI 3115 900KV 11.Propeller: 1050 (carbon fiber nylon) 12.Recommended battery: 6S 10000 10-45C XT60 plug

UMI 13inch FPV

1. Net Weight: 1950g 2. Frame: 13Inch frame 3. Wheelbase: 593mm 4. Size: 489*489*80mm 5. Material: 3K T300 carbon fiber 6. Flight control: DroView BL F405 (optional) 7. ESC: DroView 80A single ESC 8.Image transmission: DroView 5.8G 3W image transmission (optional) 9. Camera: DroView1800TVL night vision FPV camera (optional) 10.Motor: DroView 4214 440KV 11.Propeller: 1310 (glass fiber nylon) 12 Recommended battery: 8S 8000 10-50C XT60 plug * 2

UMI 15inch FPV

1. Net Weight: 2080g 2. Frame: 15Inch frame 3. Wheelbase: 647mm 4. Size Inch: 517*517*80mm 5. Material: 3K T300 carbon fiber 6. Flight control: DroView BL F405 (optional) 7. ESC: DroView 80A single ESC 8. Image transmission: DroView 5.8G 3W image transmission (optional) 9. Camera: DroView1800TVL night vision FPV camera (optional) 10. Motor: DroView 4214 380KV 11. Propeller: 1507 (glass fiber nylon) 12. Recommended battery: 8S 8000 10-50C XT60 plug*2

UMI X6-10Inch FPV

1. Net Weight: 1750g 2. Inch (mm): 456*456*60 3. Frame: 484mm wheelbase 10Inch six-axis frame 4. Flight control: DroView BL F405 (optional) 5. ESC: DroView 80A single ESC 6. Image transmission: DroView 5.8G 3W image transmission (optional) 7. Camera: DroView1800TVL low-latency FPV camera (optional) 8. Motor: DroView 3115 900KV 9. Propeller: 1050 (carbon fiber nylon) 10. Recommended battery: 6S 6000 10-50C XT60 plug * 2

UMI X6-15Inch FPV

1. Net Weight: 540g 2. Frame: 7-inch frame 3. Wheelbase: 312mm 4. Size: 276mm*242mm*45mm 5. Material: 3K T300 carbon fiber 6. Flight control: UMI BL F405 (optional) 7. ESC: UMI 50A 4-in-1 8. Image transmission: UMI 5.8G 3W image transmission (optional) 9. Camera: UMI1500TVL low-latency FPV camera (optional) 10. Motor: UMI 2807 1350KV 11. Propeller: 7035 (PC) 12. Recommended battery: 6S 8000 10-50C XT60 plug
