SPECIFICATIONS

Aperture: 90mm

Barlow: 3x Barlow

Eyepiece: 1.25" Kellner 25, Plossl 10mm

Field of View: 2.6°-4.6°

Finderscope: Red Dot Finder

Focal Length: 900mm

Lens Coating: Multi-Coating

Model: KTA90090KM-EQ2

Objective diameter: 90mm

Type: Refractor Telescope

Weights: 9.5kg

brand name: Kson

customized support: OBM

model number: KTA90090KM-EQ2

place of origin: Guangdong, China

type: Astronomical Telescope

warranty: 1 Year

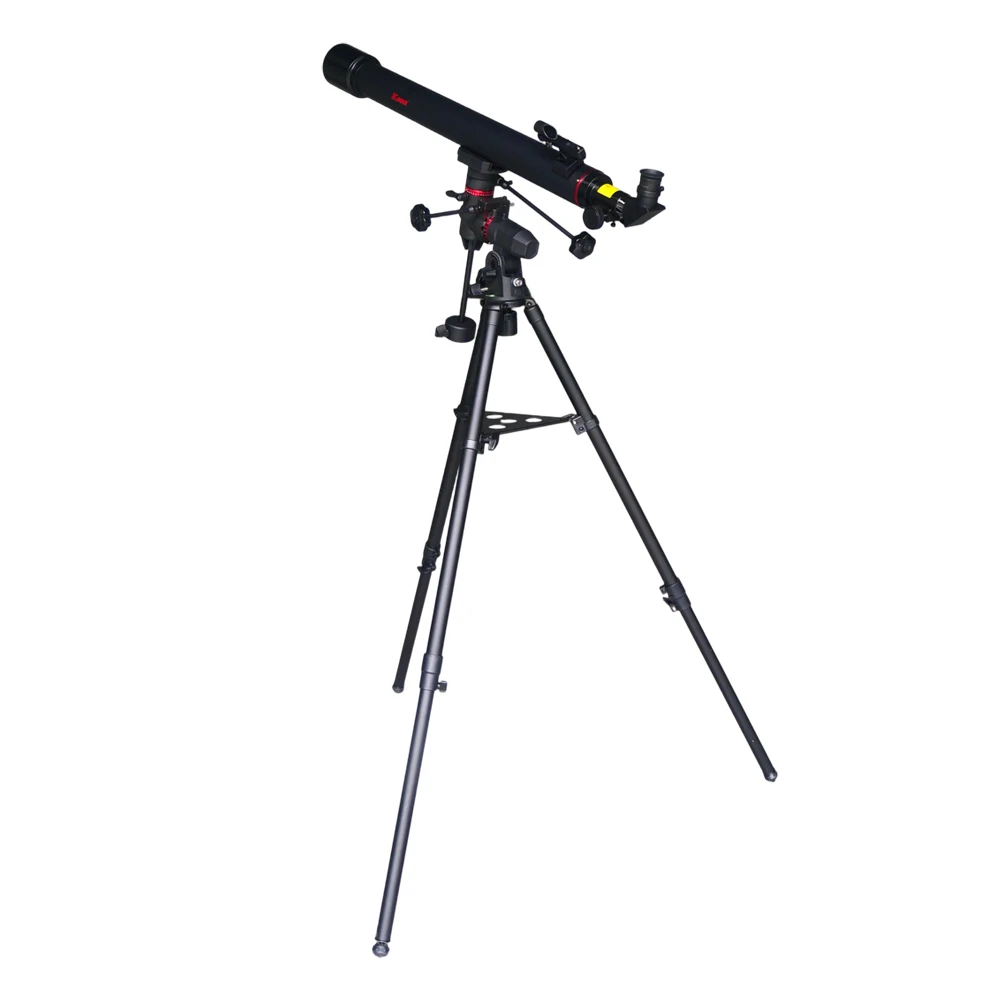

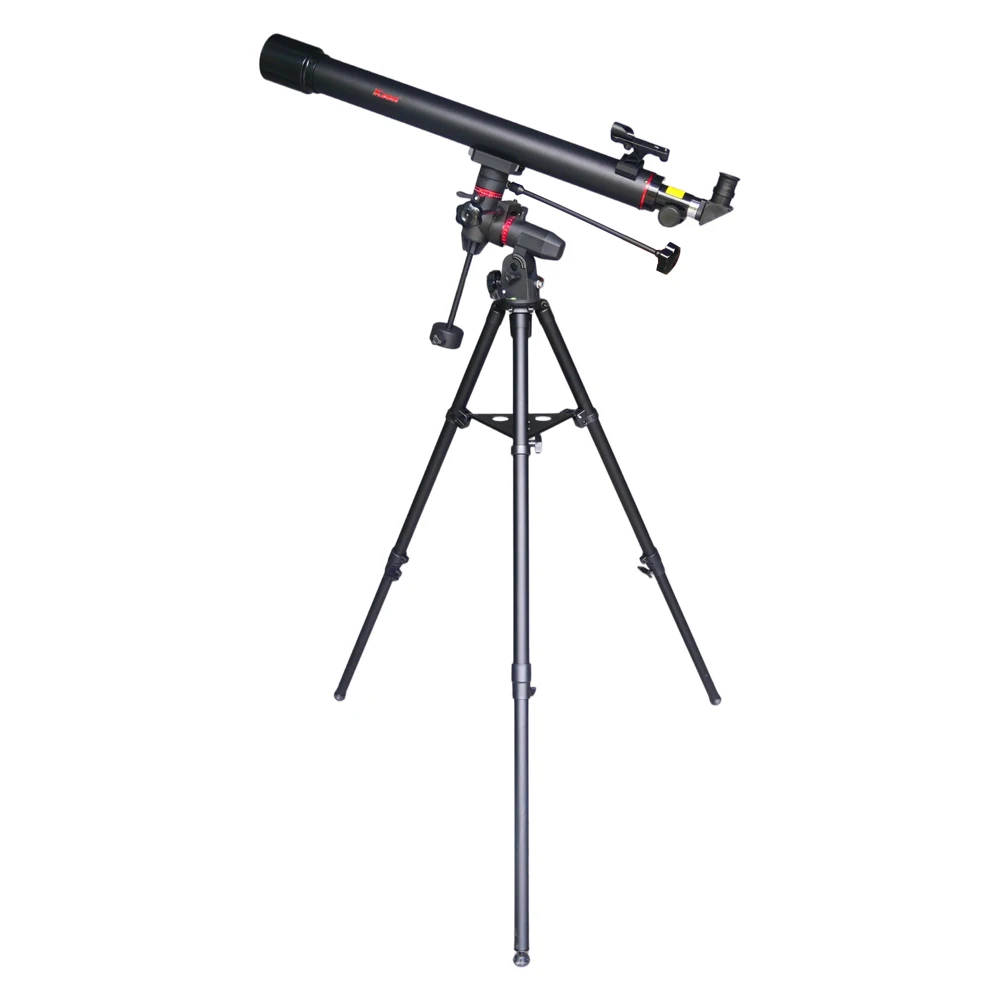

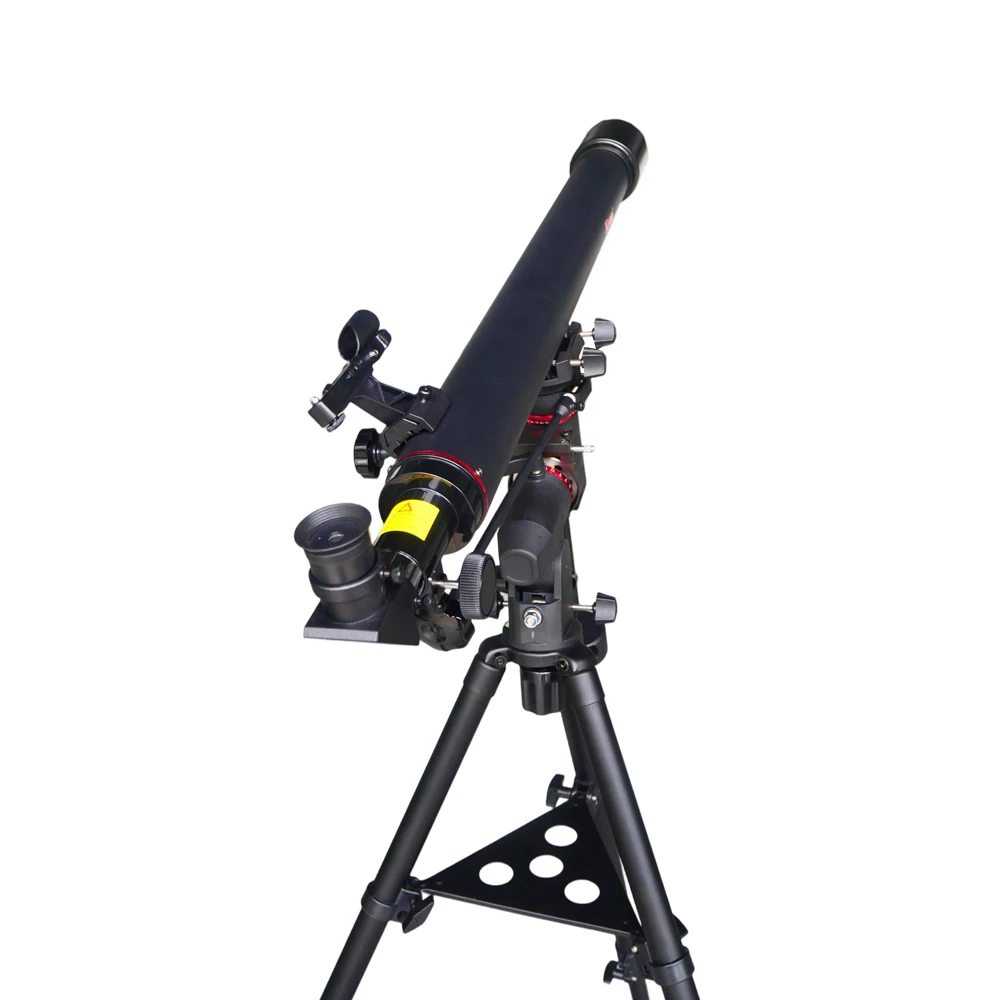

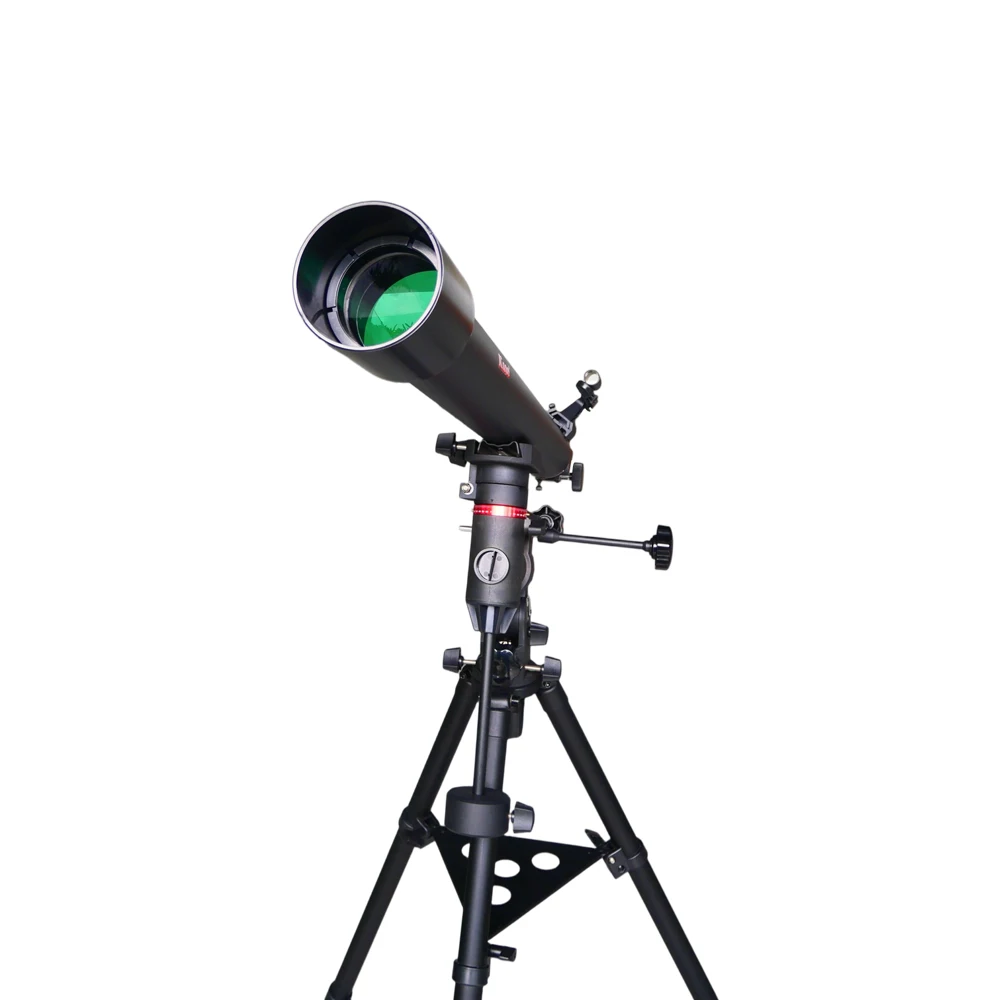

The Kson KTA90090KM-EQ2 Telescope features an Equatorial Mount design, delivering stable tracking performance to help observers maintain consistent stability when viewing targets. Whether you're eager to explore the mysteries of the starry sky, this telescope allows you to observe the true appearance of the Moon, Saturn's rings, and Jupiter's atmospheric cloud bands. Ideal for beginners and intermediate astronomy enthusiasts alike, it stands as a powerful tool for stargazing adventures.

Model	KTA90090KM-EQ2
Optical Design	Refractor
Aperture	90mm
Focal Length	900mm
Focal Ratio	f/10
Coating	Fully coated
Resolution(Dawes Limit)	1.65"
Limiting Magnitude	11.3
Lightgathering Power(vs naked eye)	100x

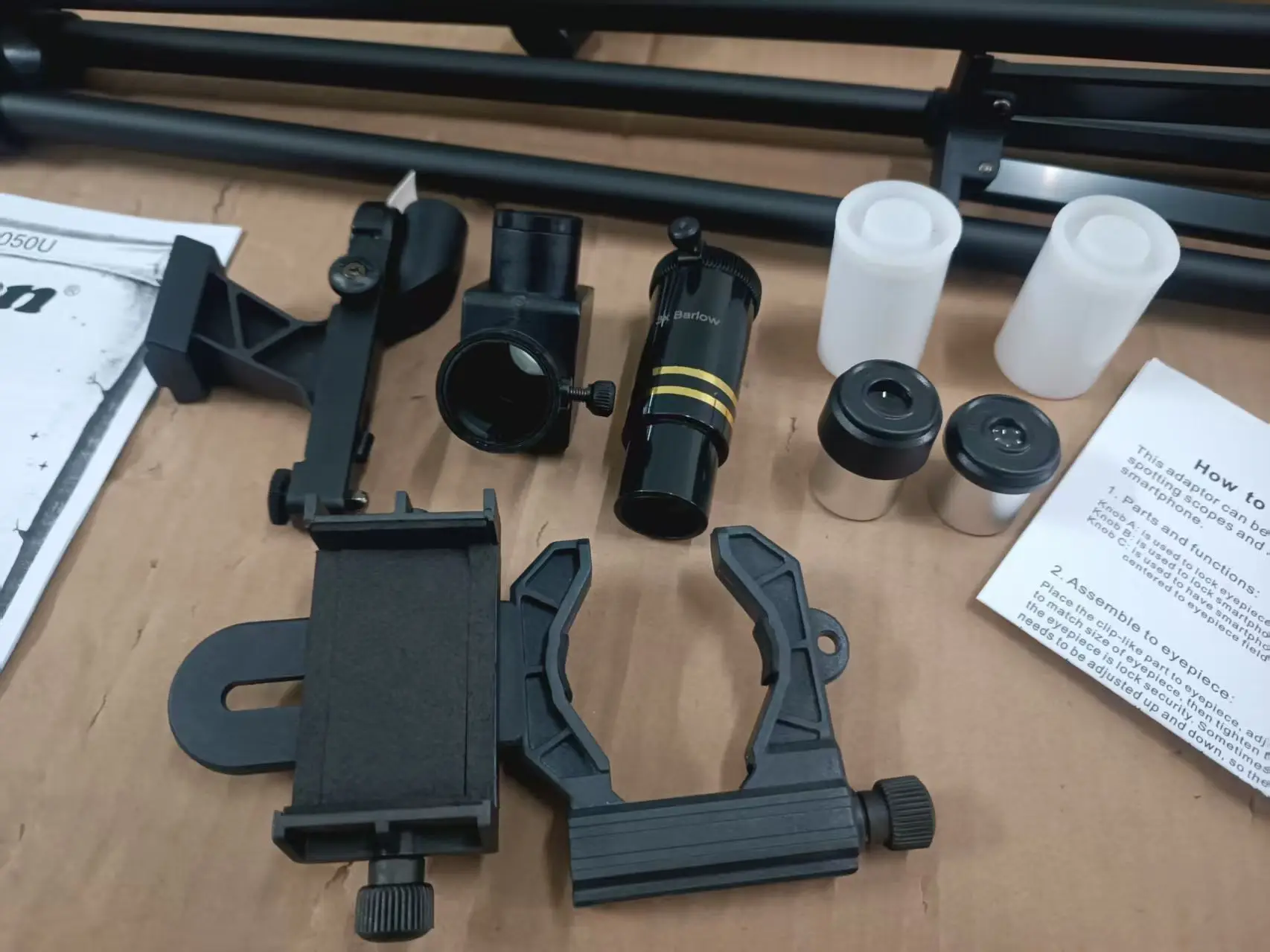

Eyepiece	1.25“ Kellner 25, Plossl 10mm
Barlow	3X
Tube	CNC machined Aluminum w/dew shield, Vixen dovetail
Tripod	Reinforced KT4 pre-assembled Ultra sturdy all metal tripid, Full Length
Mount	Newly designed precision KM-EQ2 Equatorial Mount, with flexible cable, Azimuth micro-adjustment, ready-made function for illuminated Polar Scope and Motor Drive (optional).
Finder scope	Red Dot Finder
Focuser	1.25" helical-rack pinion
Gross Weight (Kg)	10kg
Dimensions	131X34X18.5cm

The KSON KM-EQ2 Mount, is designed and manufactured for 4kgs payload with smooth movement and sturdy performance. The 63mm diameter RA worm and worm gear are CNC-machined with very high quality to ensure the smooth tracking. Vixen style dovetail adaptor is a standard part and is suitable for scope with Vixen dovetail plate.

With 25x2.5mm diameter steel tube RA shaft, it is stable enough for 4kgs OTA.

Tripod uses 28mm/25mm steel tubes, adjustable height from 70 to 120cm, with the triangle-shaped tray accessory forced with three connectors on the tripod top tubes makes the tripods very stable.
The EQ mount is only 1.5kgs, with 1.1kgs of counterbalance and 210mm long 12mm diameter shaft and KSON KT4 tripod it is less than 5kgs.
