SPECIFICATIONS

Aerial Photography: Yes

Aircraf Operating Frequency: 5.8 GHz

Brand Name: IFLIGHT

Camera Features: 4K HD Video Recording

Camera Integration: Camera Included

Camera Mount Type: Other

Category: Camera Drone

Connectivity: Remote Control

Display Control: Yes

Drone Weight: 480±5g

Equipped with Aerosol Spraing System/Spread Tank Volume: No

Field of View[°]: 155°

Flight Time: others

Fps: 120*fps

GPS: No

High-concerned chemical: None

Integrated propeller guard: Not Include

Max Takeoff Weight: <1kg

Max Wind Speed Resistance: < 10 KM/H

Maximum Horizontal Speed[m/s]: 190 km/h

Motor Type: Brushless Motor

Obstacle avoidance types: No support

Operating Temperature[°C]: -10° to 40° C

Origin: Mainland China

Recommended age[Years]: 14+

Remote Distance: 8 km

Removable/Replaceable Battery: Yes

Sensor Size: None

Transmission Range: 8km

Video Format[Name/Type]: MP4

Video Maximum Resolution[Pixel X Pixel]: 1080i/P（1920*1080）

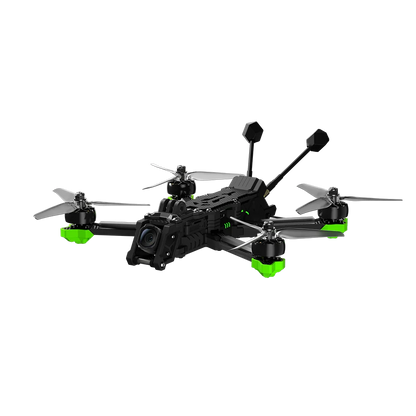

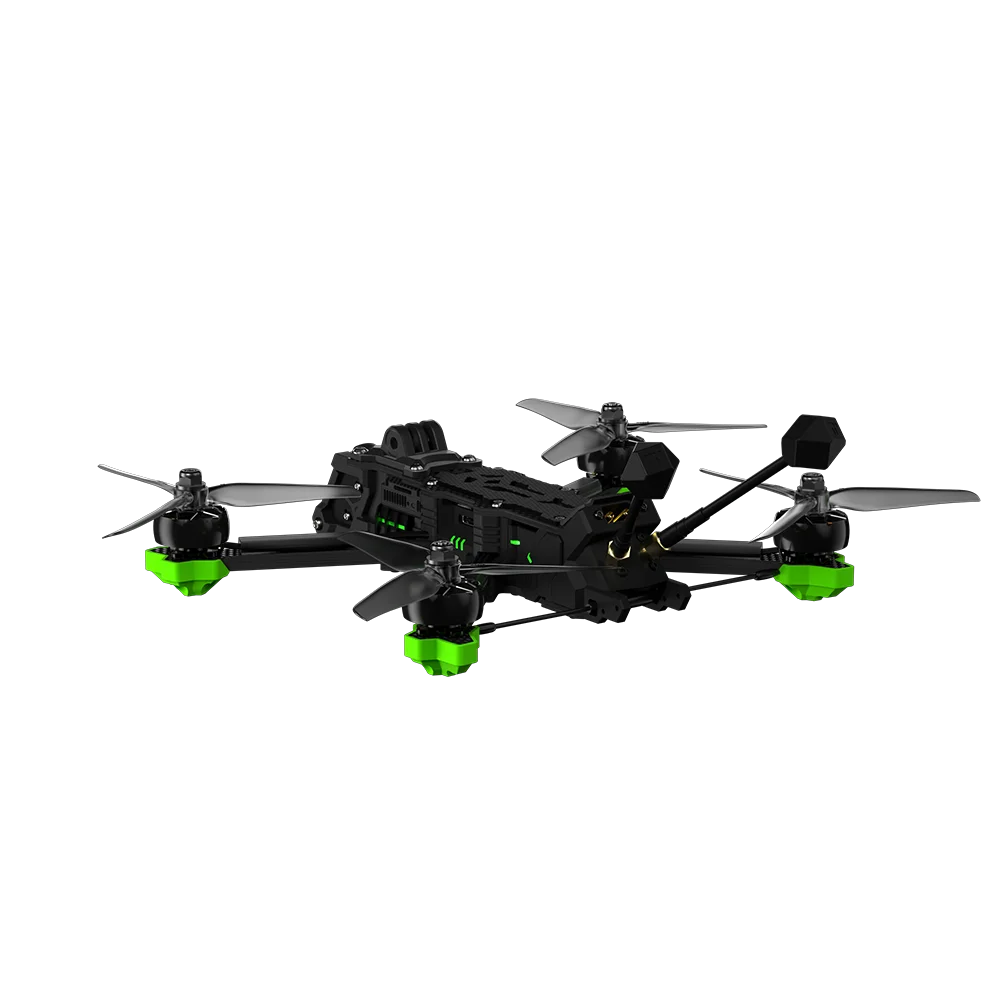

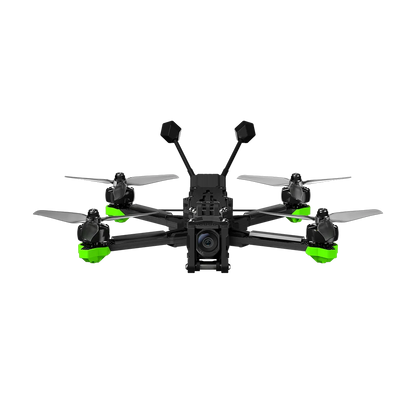

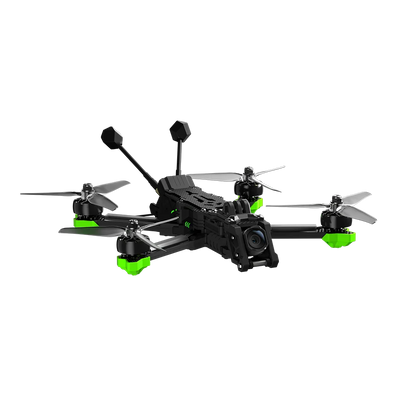

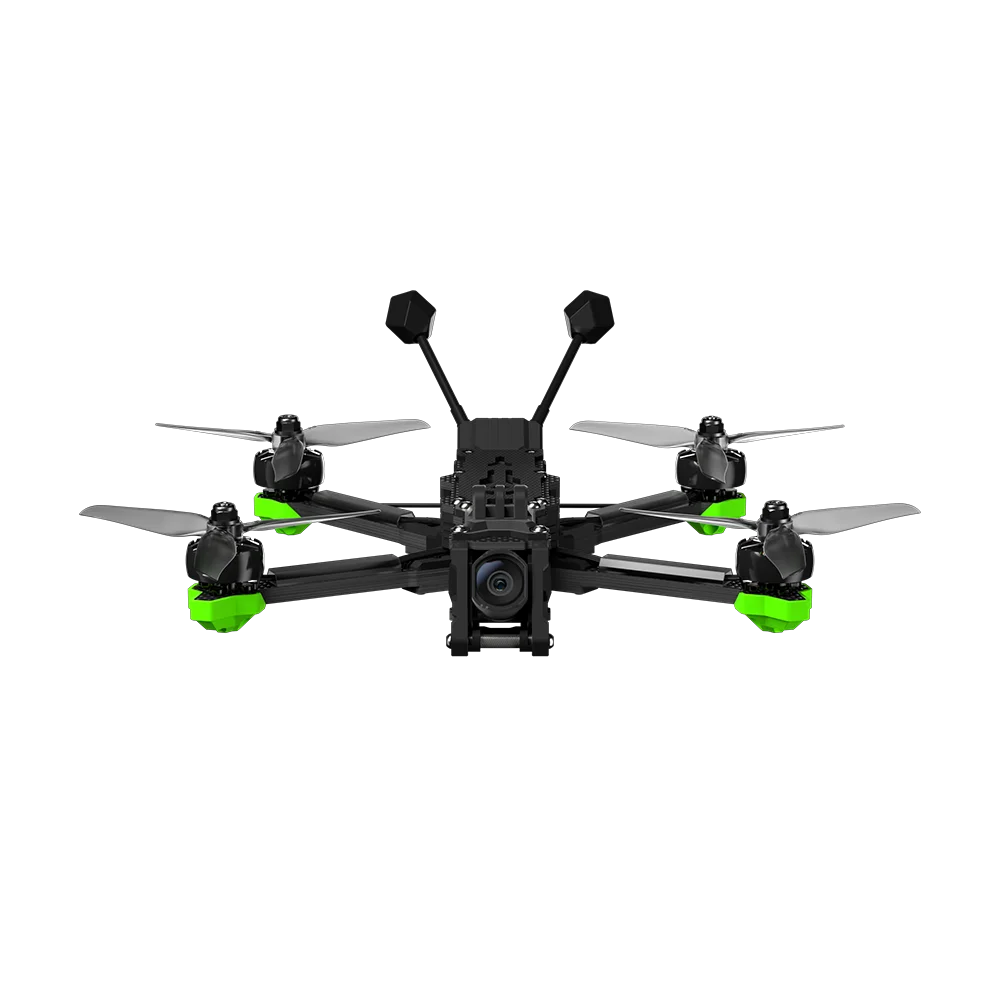

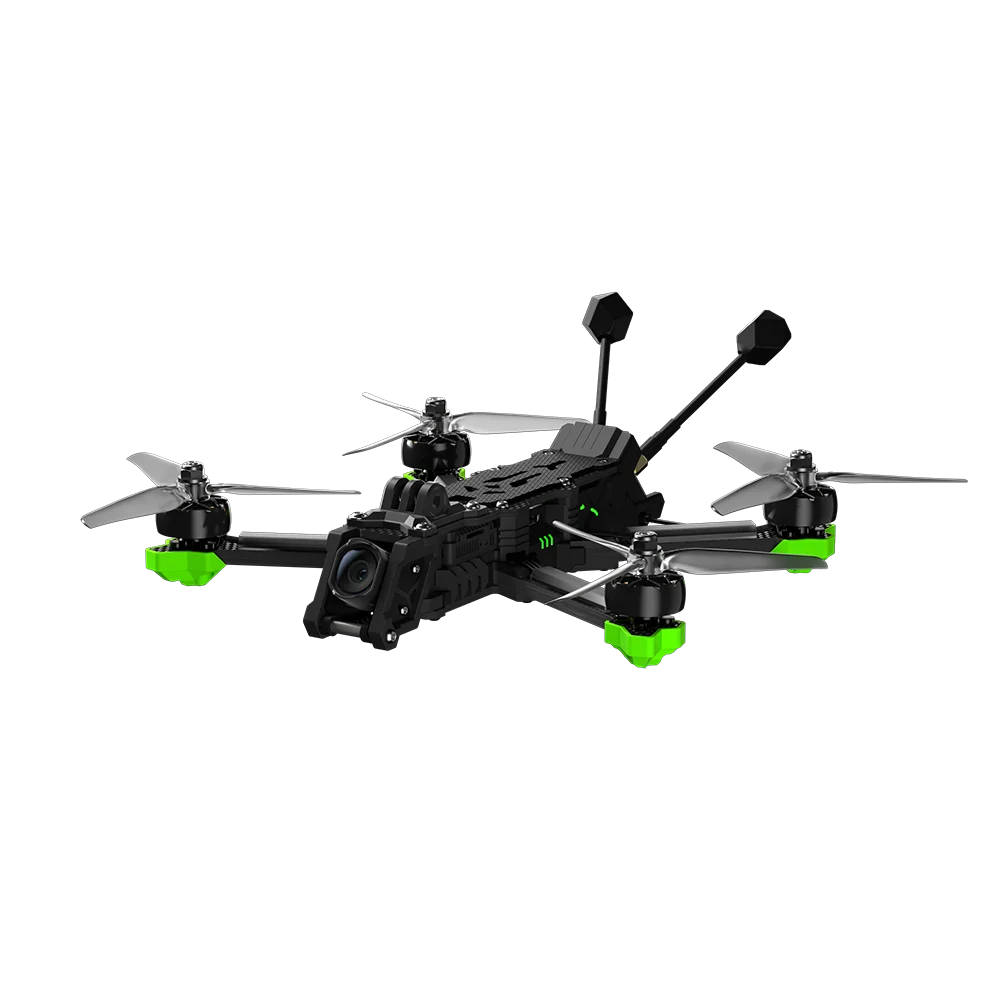

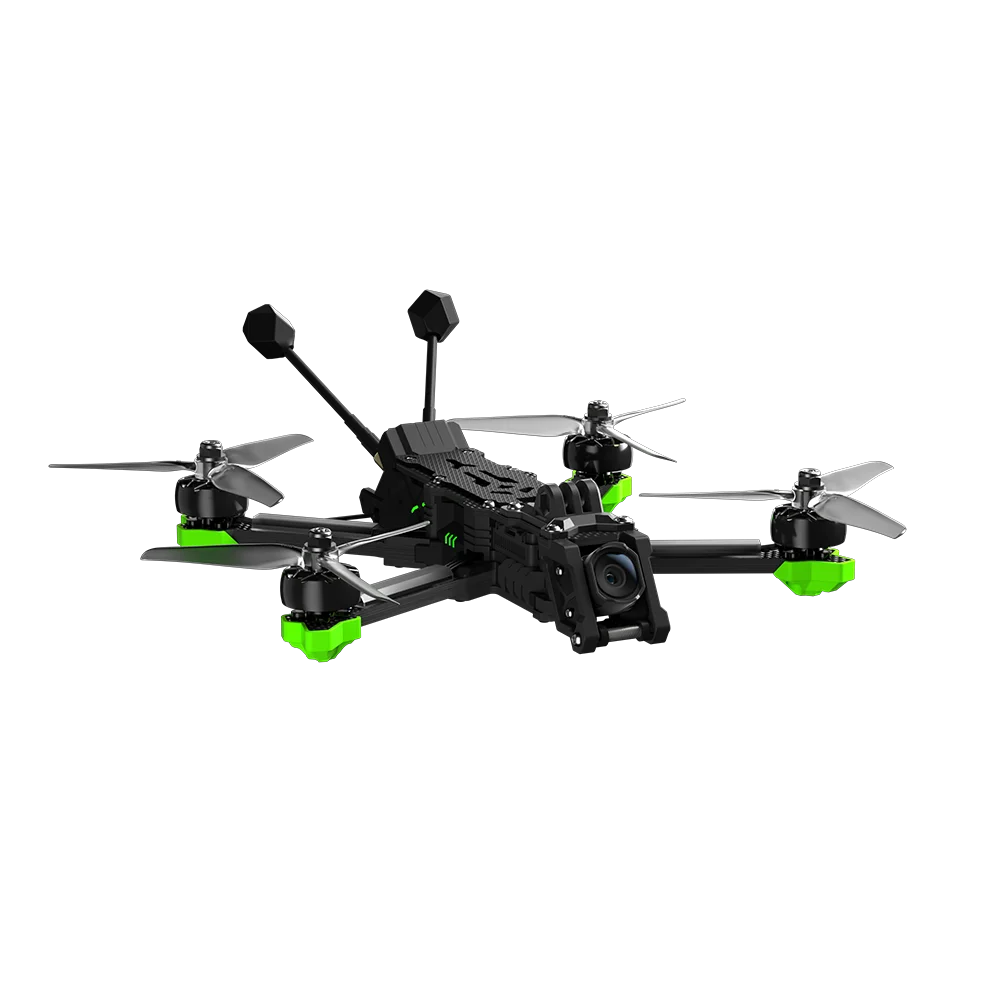

iFlight Nazgul Evoque F5 V3 O4 HD FPV Drone BNF DC/X Dual Geometry Flexible Switching Borg Mini F7 FC Mini 60 ESC For Quadcopter

Description

Every upgrade of the Nazgul Evoque F5 V3 is engineered to elevate your flight experience to new heights, featuring six core enhancements that redefine versatility and performance for drone enthusiasts. At its core, the innovative switchable DC/X-frame design stands out as a game-changer—seamlessly adapting to every flight scenario you demand. Opt for the DC geometry when capturing stunning cinematic shots, ensuring zero propeller obstruction for crystal-clear footage, or switch to the agile X geometry to unlock dynamic, high-speed freestyle maneuvers, making it a versatile companion for both creative filming and adrenaline-fueled flights.

Whether you're a professional pilot chasing precise control or a hobbyist seeking immersive fun, this drone is intuitive to master, empowering you to explore diverse flying styles and unlock endless aerial enjoyment.

Highlights

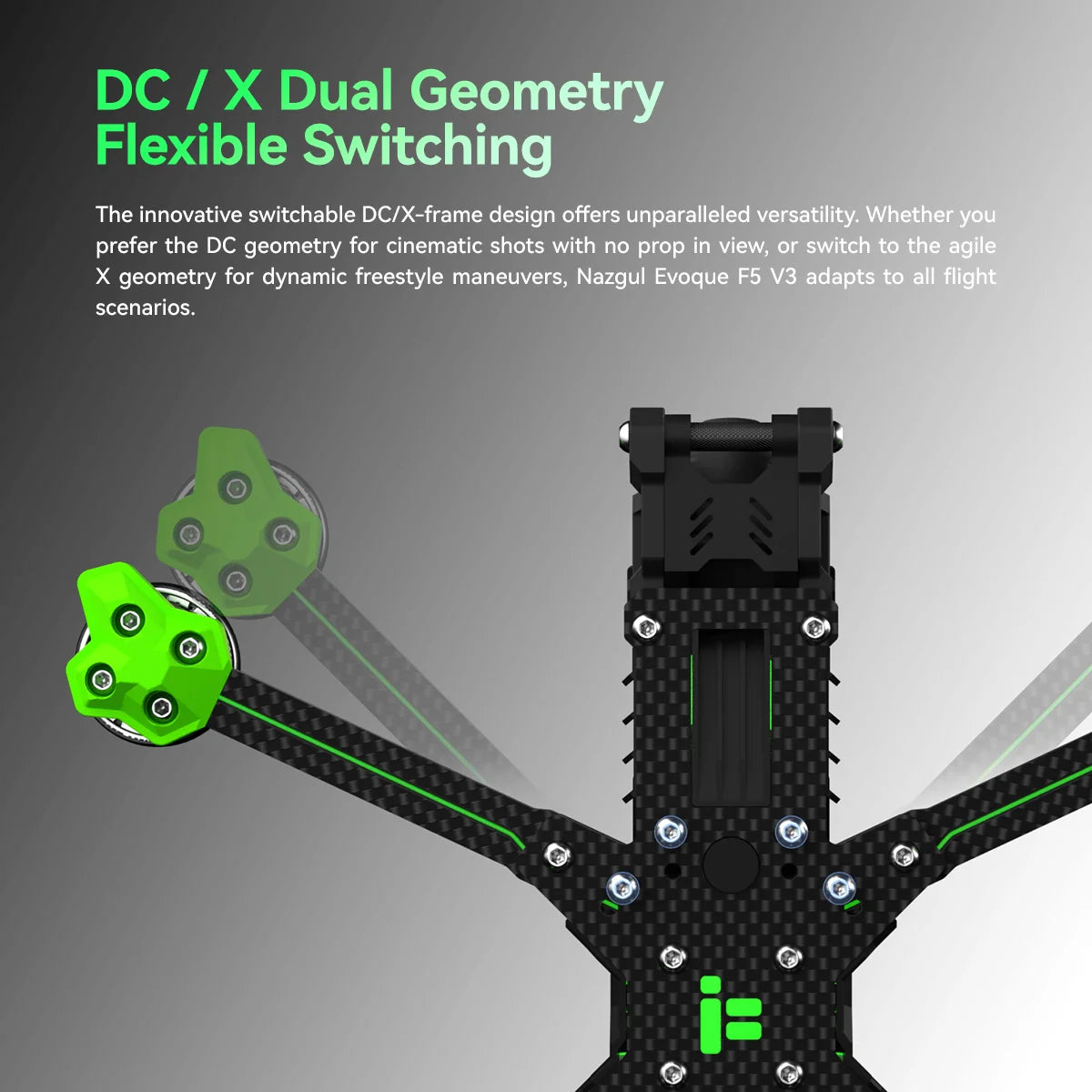

DC /X Dual Geometry Flexible Switching

The innovative switchable DC/X-frame design offers unparalleled versatility. Whether you prefer the DC geometry for cinematic shots with no prop in view, or switch to the agile X geometry for dynamic freestyle maneuvers, Nazgul Evoque F5 V3 adapts to all flight scenarios.

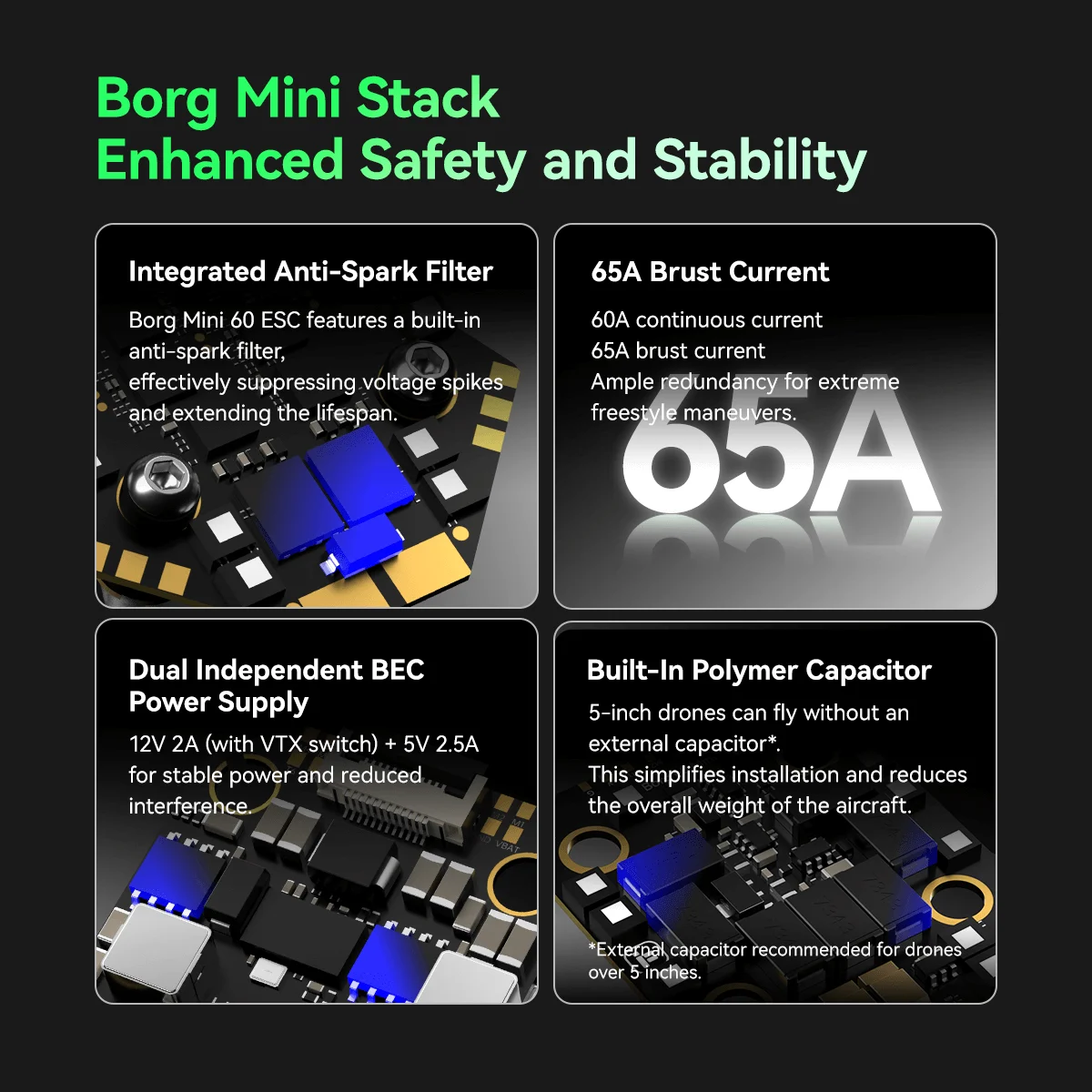

Borg Mini Stack Enhanced safety and stability

Integrated anti-spark Filter, 65A brust current, dual independent BEC power supply, and built-in polymer capacitor further enhancing safety and stability.

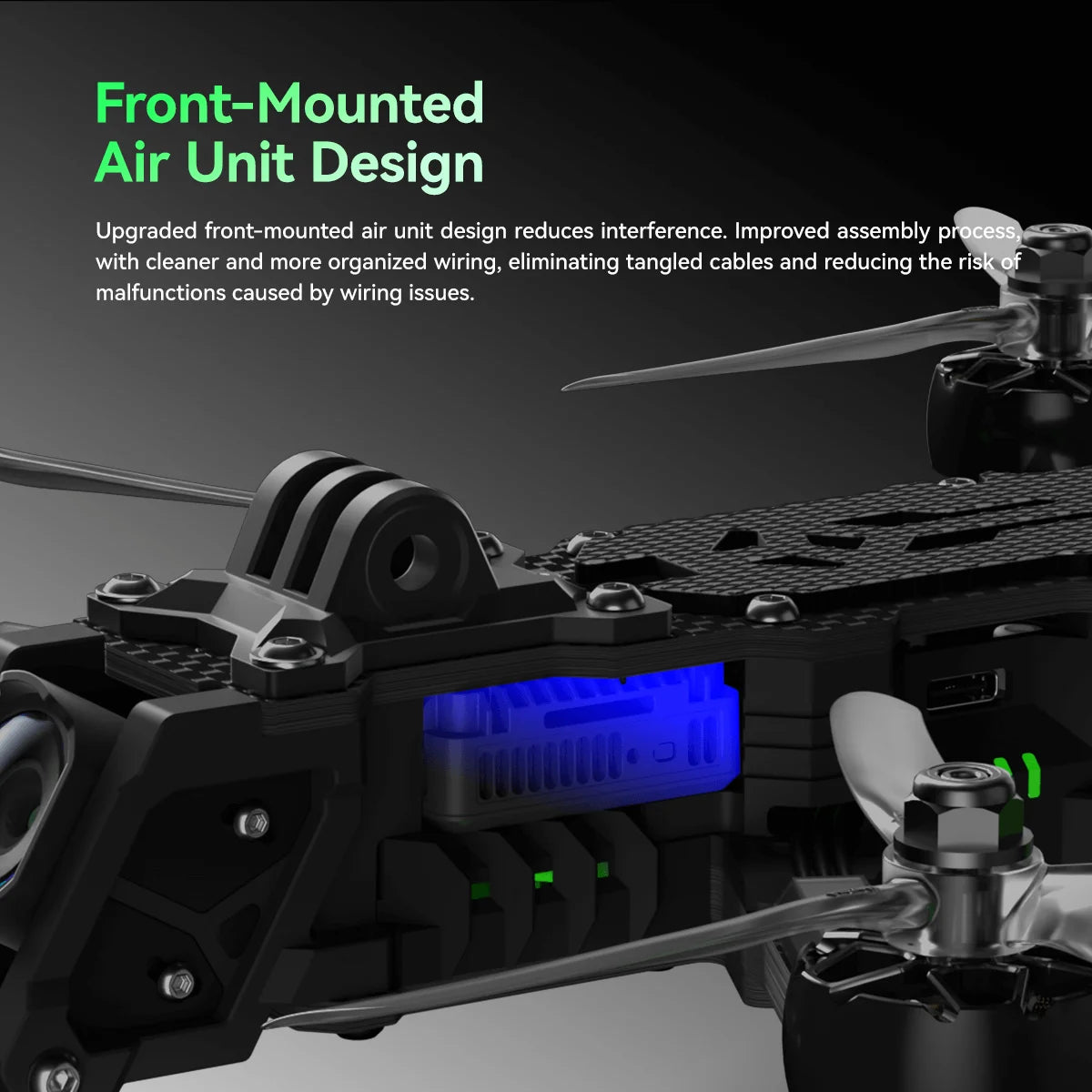

Front-Mounted Air Unit Design

Upgraded front-mounted air unit design reduces interference. Improved assembly process with cleaner and more organized wiring, eliminating tangled cables and reducing the risk of malfunctions caused by wiring issues.

Upgraded Appearance Style Meets Performance

Innovative Fin-Shaped Cooling Channel significantly enhances heat dissipation. Even in hot weather, it quickly disperses heat to ensure stable flight performance.

Refined Injection-Molded Construction Upgraded Quality

Upgraded from TPU printed parts to full injection-molded components, delivering superior material integrity and refined tactile smoothness.

Flagship Recording Capability Equipped with DJl O4 Air Unit Pro

Upgraded with a 1/1.3-inch image sensor, delivers remarkable performance in low-light and night environments. Capture low-altitude, high-speed flight footage in 4K resolution with an ultra-wide 155° FOV. Experience the immersive visual impact of flight like never before, with crisp 4K output that effortlessly meets your creative needs.

Specificaitons

Product Name: Evoque F5 V3 O4 HD BNF

FC: Borg Mini F7 Flight Controller

ESC: Borg Mini 60 ESC

Video Transmission: DJI O4 Air Unit Pro

Geometry: DeadCat (default) / True X (switchable)

Frame wheelbase: 236mm(DC-Default)/239mm(True X)

Motor: XING2 2207 1750KV motors

Prop: Nazgul F5 propellers

Weight: 492±5g

Takeoff Weight: Approx. 736±5g (With 1480mAh Battery)

Dimensions (L×W×H): 230*207*54mm(DC-Default)/207*199*54mm(True X)

Adjustable angle of the camera: 10-45°

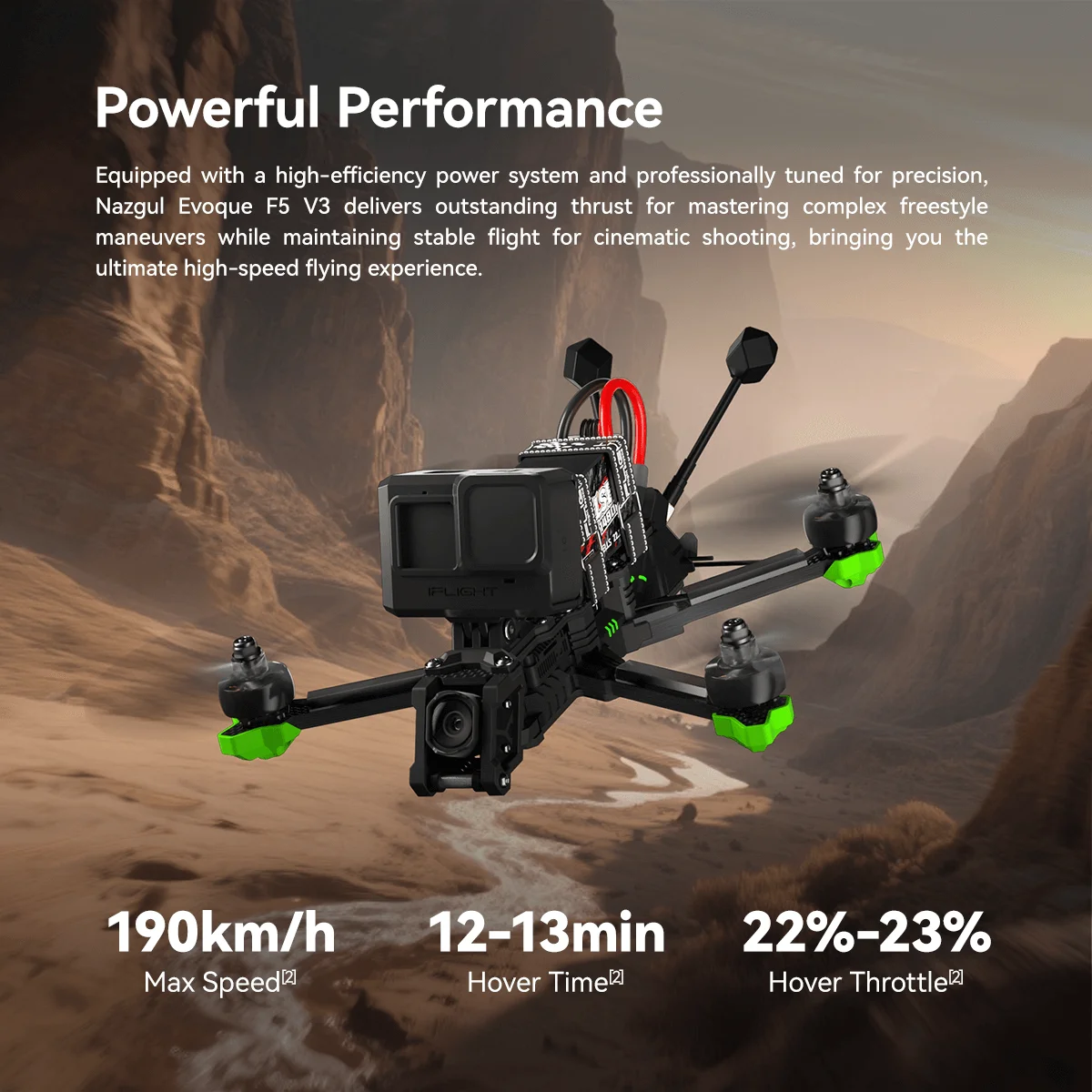

Max Speed: 190 km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 12-13 min (No load With 6S 1480mAh)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antennas

GNSS： GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

1 x Nazgul Evoque F5 V3 6S O4 HD BNF

2 x Antennas

1 x Battery pad

2 x propeller(Pairs)

2 x Battery strap
