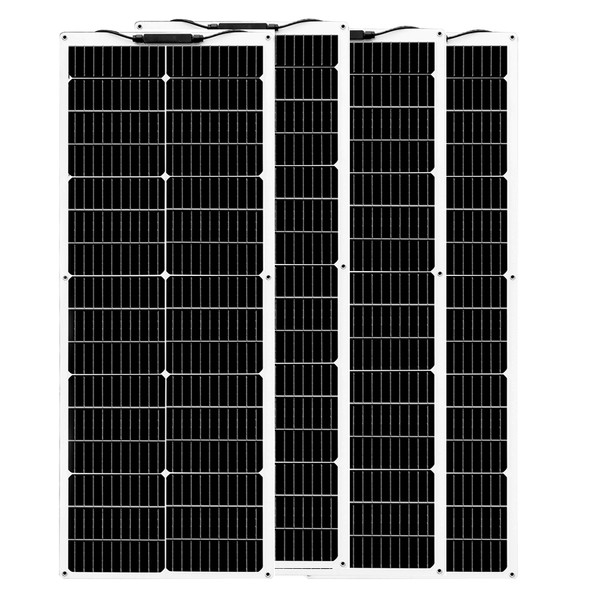

Solar Panel Solar High Efficiency Portable Power kit Flexible Charging Outdoor Solar Cells For Home/Camping 90W 180W 270W 360W 450W 540W 900W Options available

18.7V 90W Solar Panel Specification:

Maximum power (Pmax) 90W
Output tolerance ± 5%
Maximum system voltage 1000V DC
Open-circuit voltage (Voc) 22,44V
Short-circuit Current (Isc) 5,05A
Maximum supply voltage (Vmp) 18,7V
Maximum Power Current (Imp) 4,81A
Cell efficiency 24%
Operating Temperature (NOCT) 45 ± 2 ℃
Temperature range-40 ℃ ~ + 80 ℃
Cell monocrystalline silicon
Number of cells 34 pc
Weight 1.8kg
Size 1000*460*3mmSurface material PET

Standard test conditions: radiation 1000 W/m ^ 2, temperature 25 ℃, AM = 1.5

Solar panels require sunlight for power output, and the output power varies depending on the lighting conditions at different times. Generally, each solar panel has an output power of 360w/h-450w/h/day under sunlight.

Packing listing

1pcs 90w flexible solar panel

or

2pcs 90w flexible solar panel

or

3pcs 90w flexible solar panel

or

4pcs 90w flexible solar panel

or

5pcs 90w flexible solar panel

or

10pcs 90w flexible solar panel

Highlights:

Advanced technology back contact cells allow for flexibility and increased Wattage per Square Feet.

Unique frameless design includes six metal reinforced mounting holes for easy installation

Rigorous quality control to meet the highest international standards CE,TUV

High transmittance, flexible lamination material is less prone to cracking than traditional glass

Outstanding electrical performance under high temperature and weak light environments

Positive and negative leads equipped with pv connectors

Two bypass diodes minimizes performance drop due to partial shade

Set up easily:

Can be conveniently placed on curved solid surfaces
Lighter and thinner ,only 3mm thick .
Built in blocking diode to prevent battery discharge at night
All weather proof. They are water-proof and UV-Resistant. Potted junction box
