SPECIFICATIONS

Battery: 800mAh Li-ion Battery

Brand: Winait

Color: Black

Image Sensor: CMOS

Screen: 3.0 Inch LCD

Sensor: 800mp(COMS)

Special Features: Cheap Camera

Type: Compact

Video resolution: 1920*1080

battery type: Rechargeable Battery Pack

focal length: TBD

focus: Fixed Focus

image resolution: Full HD (1920x1080)

image stabilization: Yes

memory card type: SD Card

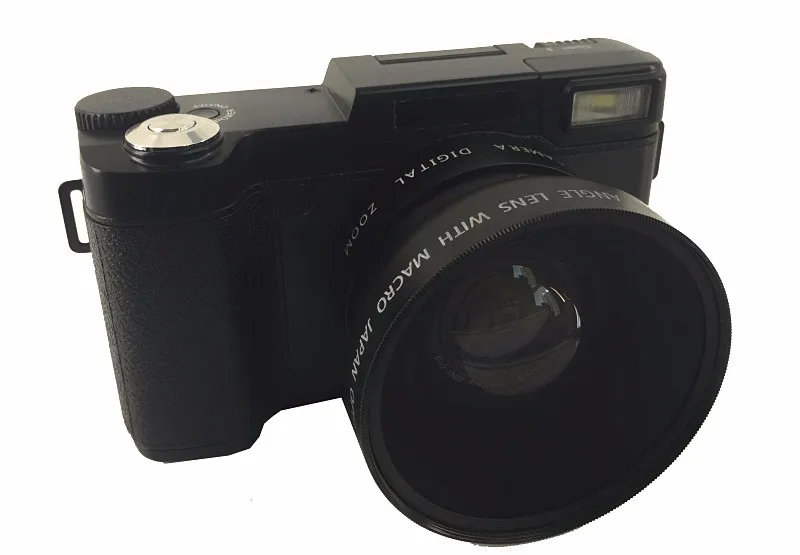

model number: WT-R2

optical zoom: Fixed Focus

place of origin: Guangdong, China

screen size: 2" - 3"

type: Point & Shoot Digital Cameras

video capture: Yes

Main Features:

8.0MP CMOS Max 24MP

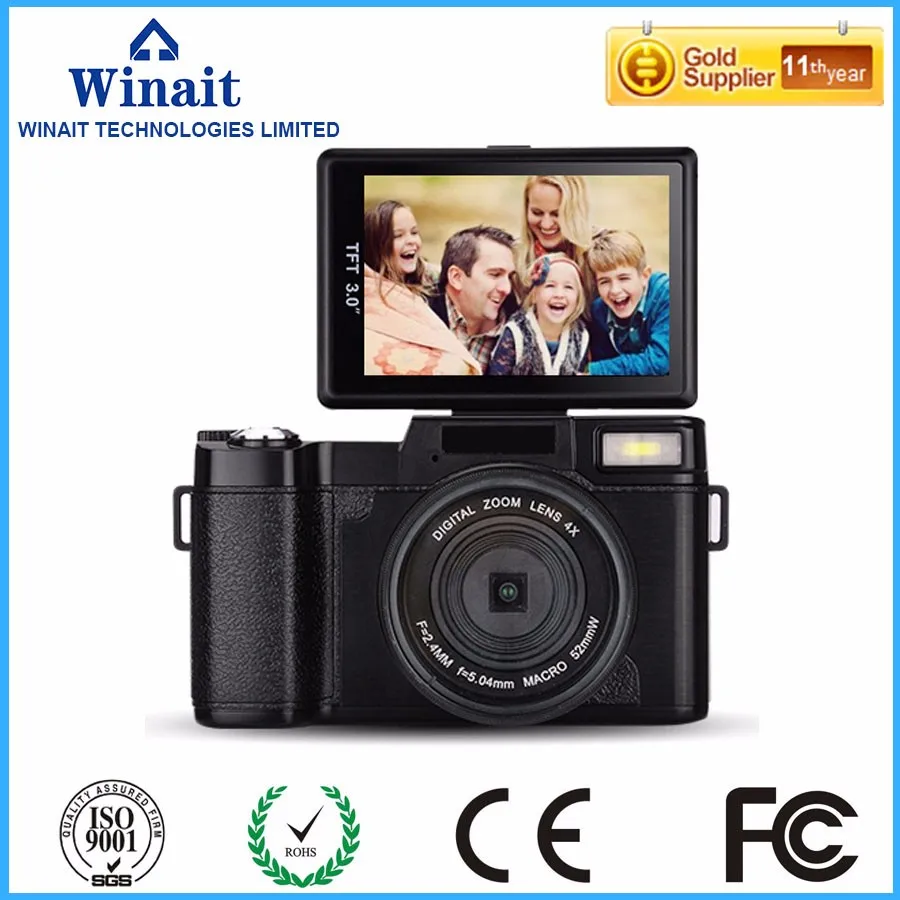

3" Rotatable Screen

Facial Beauty Function

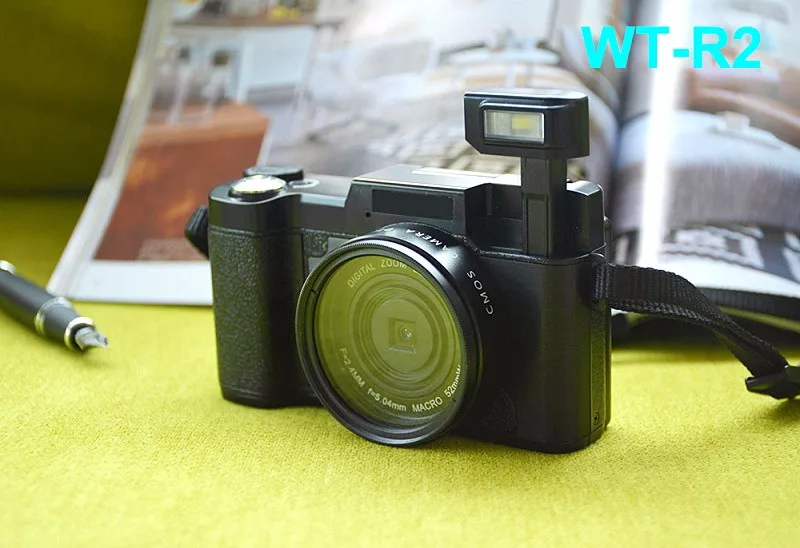

Extend-retract Flash Lamp

Face Detect

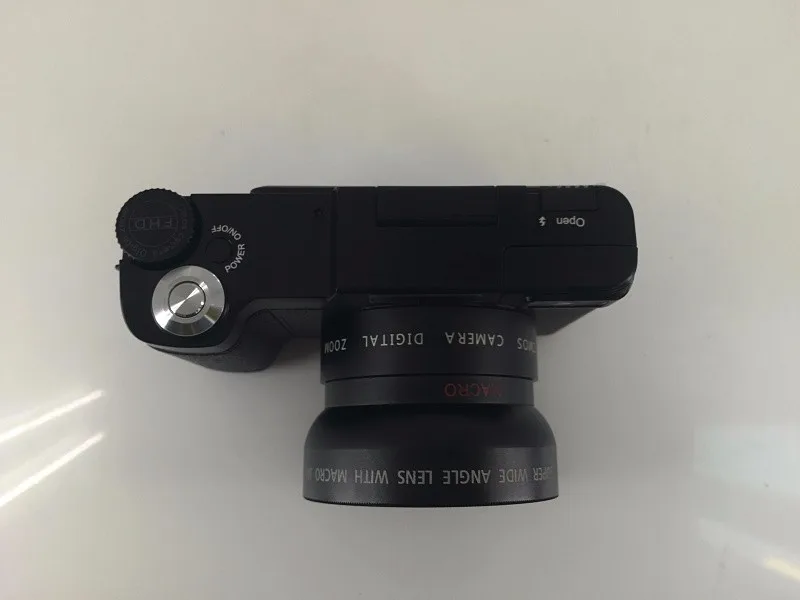

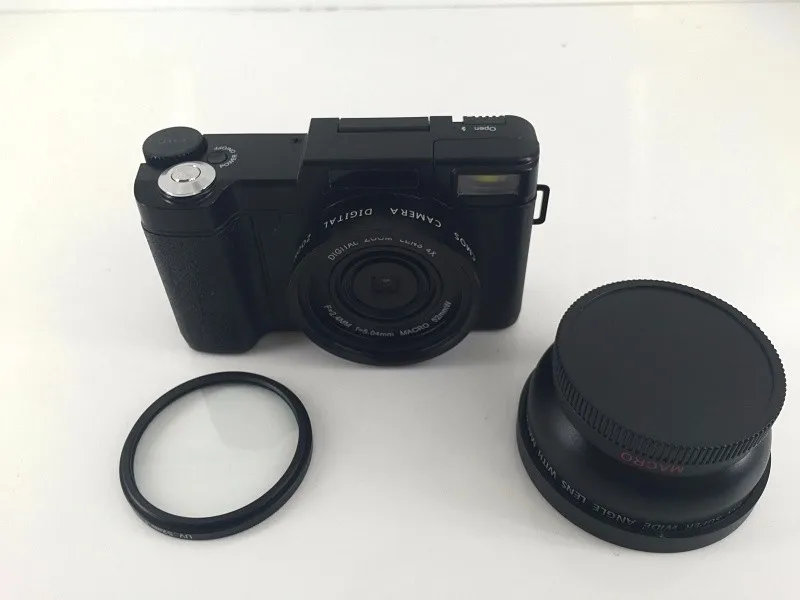

Can be equiped with Wide-angle Lens, UV lens and Teleconverters Lens, etc. (52mm)

Hardware Specification			Firmware Specification
Image Sensor	Type	8.0MP CMOS, Max 24MP	File Format	Video	AVI
	Model	OV8810		Photo	JPG
Backend Chipset(DSP)	CPU	JL2233A	Image Resolution	5600x4200(24MP); 5200x3900(20MP); 4000x3000(12MP); 3264x2448(8MP); 2592x1944(5MP); 2048x1536(3M); FHD: 1920x1080 HD;
	Manufacturer	N/A	Video Resolution	1920x1080 @15fps; 1280x720 @30fps; VGA: 640x480@ 30fps
Lens	Type	4P+1	Shooting	-Single Shooting; -Delay Shot(2s, 10s); -Continuous Shooting;
	Actual Focal Length	5.04mm	Scene Mode	Auto, Sport, Night, Portrait, Landscape, Backlight, Party, Beach, High Sensitivity
	Open Aperture	2.4	Face Detect	On/Off
	Normal focus range	1m~Infinite	White Balance	Auto, Daylight, Cloudy, Tungsten, Fluoresecent
	View Angle	(D)/66.1°(H)/53.2°(V)/20°	Exposure	–3.0EV~+3.0EV (Scale: 1)
Display	Panel Type	TFT 3.0"	ISO	Auto, 100, 200, 400
	Pixel	960*480	Quality	Super Fine, Fine, Normal
	Resolution	960*480	Sharpness	Soft, Normal, Sharp
	Brightness Adjust	Level 3	Effect	Normal, B&W, Sepia, Red, Green, Blue, Sunset, Warm, Cool, Over Exposure, IR, Binary, Vivid, Undertone, God Eye, Aibao, Gothic, Japan Style, LOMO, Negative,
Storage media	Internal memory	8MB	Saturation	High, Normal, Low
	External memory	SD Card 32GB SD 3.0(HC)	Features
Interface	USB	Micro USB 2.0	Face Detect	On/Off
	HDMI	N/A	Anti-Shake	On/Off, Electronic Stablizer
	CVBS output	N/A	Metering	Center, Multi Spot
Microphone	Built-in Microphone		Imprint	Off, Date, Date&Time
Speaker	Built-in Speaker		Power Save	1min, 3min, 3min, 10min
Battery	Type	Li-ion
	Capacity	800mAh
	Charging Limited Voltage	4.2V	Compatibility
Dimension	1246945mm		Print Mode	NO
Weight	264.8g		Host Platform	[WIN]: 98, 98SE, ME, 2000, XP, Vista,Win7 [Linux]: FC12, Ubuntu(TBD) [MAC]: OS X, 10.2.3, 10.3 Or newer version(TBD)
