Product Overview
SPECIFICATIONS
Application: Fishboat
Brand Name: YAHATSU
Color: YAMAHA Gray Color
Condition: New,New
Control System: Tiller Control
Cylinders: 2
Displacement: 246 Cc
Engine: 2 STROKE,2 STROKE
Engine Position: OUTBOARD
Engine type: 2 Cylinder Gasoline Engine
Fuel Type: Gasoline,Gaoline
Model Number: T15S/L
Place of Origin: Zhejiang, China
Product Name: Gasoline Outboard Engine Boat Motor
Purpose: for manufacturing
Starting system: Manual
Warranty: 1 Year

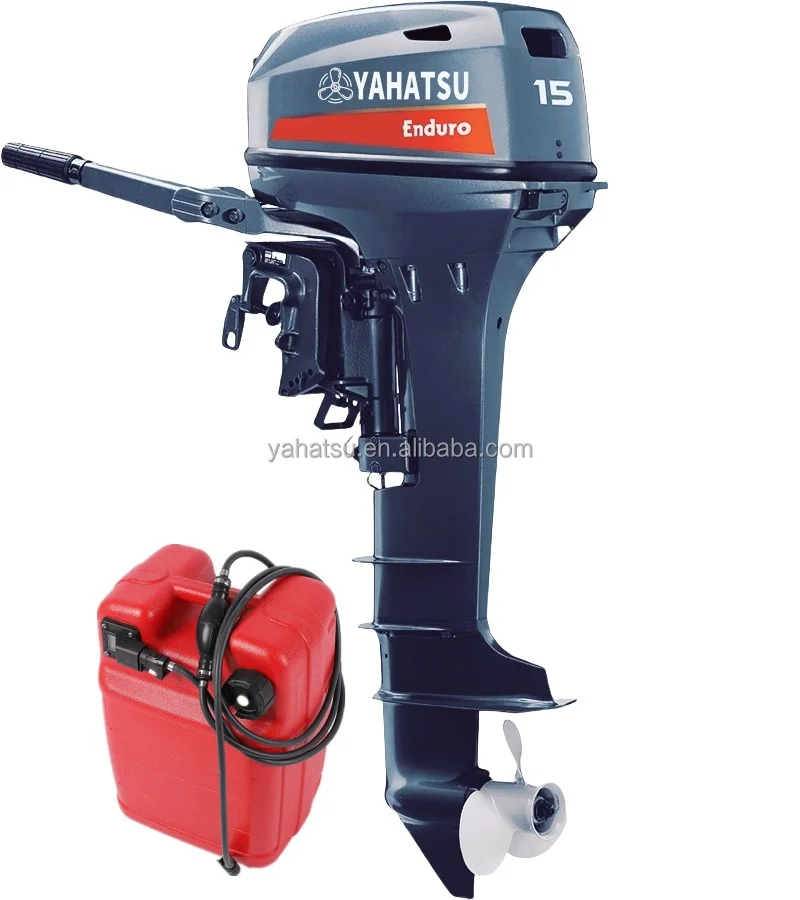

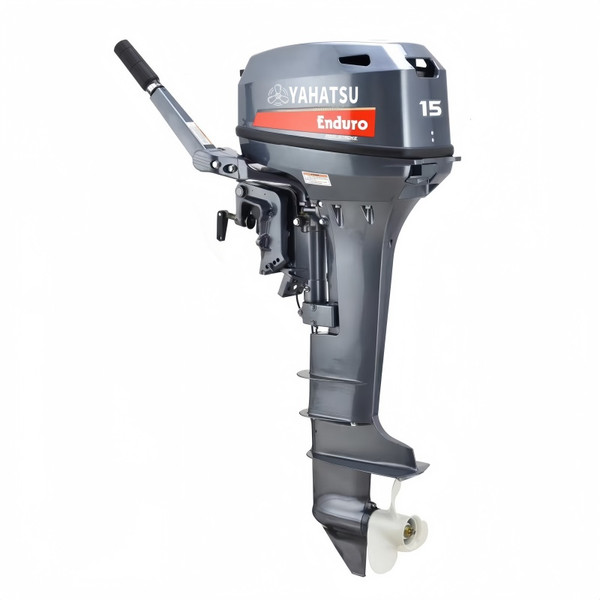

YAHATSU outboard motor 2 stroke 15hp enduro marine boat engine compatible with original YAMAHA boat motor and spare parts
| Characteristics | T15 | T15(6B4) |
| Motor type | 2 Cylinder | 2 Cylinder |
| Displacement | 246cc | 246cc |
| Bore*Stroke | 56*50mm | 56*50mm |
| Gear Ratio | 2.08 | 2.08 |
| Full throttle speed range | 4500~5500 | 4500~5500 |
| ldl ing rpm | 750±50 | 800±50 |
| Max.PropShaft Output | 11.2kW(15HP) @5000rpm | 7.4kW(9.9HP) @5000rpm |
| Alternator output | 12V/6A With/Without Rectifire/Regulator |
12V/6A With/Without Rectifire/Regulator |
| Engine Transom Heigt(mm)S | 440mm,(17.3in) | 440mm,(17.3in) |
| Engine Transom Heigt(mm) L | 567mm,(22.3in) | 567mm,(22.3in) |
| Engine Transom Heigt(mm)XL | 709mm,(27.9in) | 709mm,(27.9in) |
| Dry Weight(Kg.)S/L/XL | 36kg/37.5Kg/*39kg | 37.5Kg |
| Starter | manual | manual |
| Direction system | manual | manual |
| Trim&Tilt | manual | manual |
| Builtin Fuel Tank(L) | 24Lts | 24Lts. |
| Fuel Induction System | 1Carb | 1Carb |
| Additional accessories | Spare propeller Part kit Tools kit Fuel tank |
Tools kit Fuel tank |
