Product Overview
SPECIFICATIONS
Application: Fishboat
Brand Name: YAHATSU
Color: YAMAHA Gray Color
Condition: New,New
Control System: Tiller Control
Cylinders: 2
Displacement: 703 Cc
Engine: 2 STROKE,2 STROKE
Engine Position: OUTBOARD
Engine type: 2 Cylinder Gasoline Engine
Fuel Type: Gasoline,Gaoline
Model Number: T40S/L
Place of Origin: Zhejiang, China

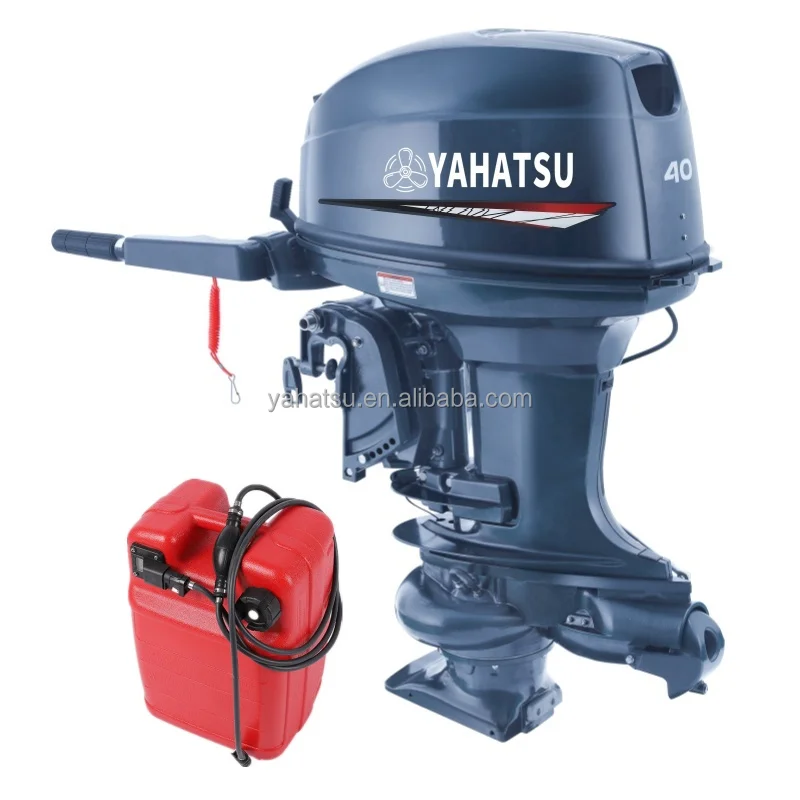

Product Name: Gasoline Outboard Engine Boat Motor
Purpose: for manufacturing
Starting system: Manual
Warranty: 1 Year
If you ask what the YAHATSU brand means for our products, it's because some of our products are compatible with Yamaha models in Japan, and parts are interchangeable, making after-sales maintenance and repair easier. Other models are compatible with Tohatsu models in Japan, and parts are interchangeable, making after-sales maintenance and repair very convenient.
| Characteristics | T40J |
| Motor type | 2 Cylinder |
| Displacement | 703cc |
| Bore*Stroke | 80*70mm |
| Gear Ratio | 2.00 |
| Full throttle speed range | 4500~5500 |
| ldl ing rpm | 1000±50 |
| Max.PropShaft Output | 29.4kW(40HP) @5000rpm |
| Alternator output | 12V/6A With Rectifire/Regulator |
| Engine Transom Heigt(mm)S | 424mm(16.7in) |
| Engine Transom Heigt(mm) L | 550mm(21.7in) |
| Engine Transom Heigt(mm)XL | *649mm(25.6in) |
| Dry Weight(Kg.)S/L/XL | 76.4Kg/78kg/81.1kg |
| Starter | Electric or manual |
| Direction system | Remote/Manual |
| Trim&Tilt | Manual and Power Trim |
| Builtin Fuel Tank(L) | 24Lts |
| Fuel Induction System | 1Carb |
| Additional accessories | Spare propeller Part kit Tools kit Fuel tank |
