Product Overview

SPECIFICATIONS

Blades Material: Nylon Fiber

Brand Name: ASZHONGA

Controller System: Electromagnet/Wind Wheel Yaw

Generator type: 3 Phase AC Permanent-magnet

Model Number: WG-100

Nominal Voltage: 12V/24V

Output Voltage: 12V/24V

Place of Origin: Guangdong, China

Rated Power: 100W/200W/300W/400W/500W

Rated Wind Speed: 10.0m/s~13m/s

Rated power: 100W/200W/300W/400W/500W

Speed Regulation: The Wind Angle Automatically

Start-up Wind Speed: 2.0m/s

Survival Wind Speed: 50m/s~55m/s

Wind Wheel Diameter: 1.15m~1.25m

rotor diameter: 1.15m~1.25m

Product Description

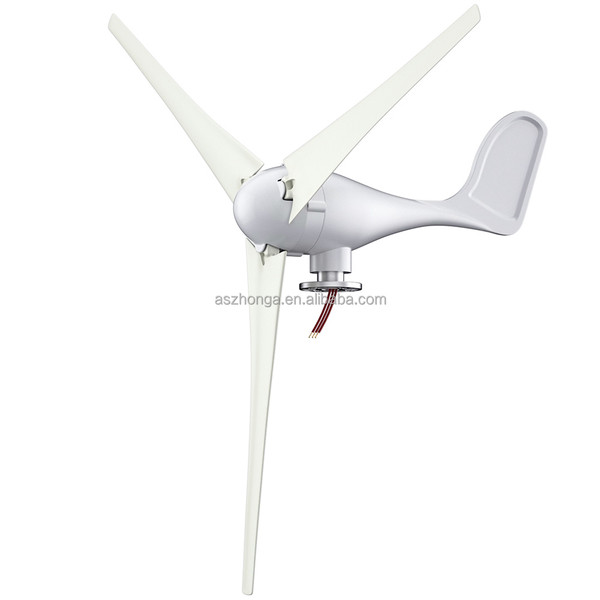

100W/200W/300W/400W light wind mill 12V/24V Horizontal Shaft Wind Turbine 3 Blades Wind Turbine Generator For Home Farm

Features :

1. Nacelle: Made of aluminum alloy, light weight, anti-interference and good heat dissipation. Can work in -40℃~80℃ environment. Streamlined body, maintenance-free bearings, and can realize automatic steering of breeze. 2. Generator: rotor adopts NdFeB permanent magnet material, stator adopts red copper winding, high temperature resistance, good conductivity and high efficiency. 3. Three-piece blade. Adopt light material, strengthen toughness and noise reduction design. Can withstand large wind pressure without damage. Breeze power generation, start the wind 2m/s environment can work. With the rotation balance system, the working process is almost noiseless. 4. Protection system: self-unloading load and magnetic brake, double protection to ensure safety. 5. Surface treatment of metal parts: electrophoresis and painting, anti-rust and anti-corrosion. The whole machine is IP66 level waterproof 6. Special PWM power management controller for wind turbine to prevent overload, reverse connection, over-discharge, overcharge, short circuit and anti-backflow Effective battery life Extension and protection. 7. Simple installation, wide range of applications, can provide lighting and camera power for homes, sea ranches, farms, highways, mountains and other places. 8. Maintenance-free design, design life up to 20 years.

Multi-purpose

Simple installation, wide range of applications, can provide lighting and camera power for homes, sea ranches, farms, highways, mountains and other places.

Wind-solar complementary

Compatible with common solar power systems, complementary wind and solar power solutions can be set up to provide 24-hour uninterrupted power supply for outdoor lighting, cameras and other equipment.

Silent work

Quiet fan blades, rotating balance system, sensitive steering bearings, working more quietly, almost no noise. Full working noise is less than 55 decibels.

Metal casing, anti-corrosion design

Metal housing with anti-corrosion treatment provides better heat dissipation and IP66 waterproof for working in harsh weather.

Wind turbine installation and site selection

A location with no shade around and high terrain, or by the sea, should be chosen, and the installation location should be as high as possible. 1. Can be installed at the ridge Take advantage of the speed increase effect on the hill 2. Avoid obstructions Wind turbine should avoid the shade, and the distance from the shade, should be more than 10 times the height of the shade. Avoid the turbulence area above and below the cliff. 3. Installed in high place The higher the installation position is, the higher the wind speed is.

Packing List:

1pcs* wind turbine 3/5pcs*fan blade 2pcs*wrench 1bag*screws 1pcs*PWM controller for wind turbine (output 12/24V) )

Specification

Model	WG-100	WG-200	WG-300	WG-400
Rated Power	100W	200W	300W	400W
Max Power	130W	220W	310W	410W
Nominal Voltage	12V/24V	12V/24V	12V/24V	24V
Start-up Wind Speed	2.0m/s	2.0m/s	2.0m/s	2.0m/s
Rated Wind Speed	10m/s	11.5m/s	13m/s	13m/s
Survival Wind Speed	55m/s	55m/s	55m/s	50m/s
Top Net Weight（kg）	6	6.2	6.5	6.8
Wind Wheel Diameter	1.15m	1.15m	1.25m	1.25m
Number of Blades	3/5
Blades Material	Nylon Fiber
Generator	Three Phase AC Permanent Magnet Generator
Controller System	Electromagnet/Wind Wheel Yaw
Speed Regulation	The Wind Angle Automatically
Working Temperature	-40℃~80℃
Package Size(mm)	660x290x230
Package Weight（kg）	8.6	8.8	9.2	9.6
