Product Overview
SPECIFICATIONS
Application: Street light, rooftop
Assebmly: aluminum blades/hub/housing/nacelle
Brand Name: HENRYD
Gear: no
Generator type: 3 phase AC low rpm directly drive
Housing material: aluminum
Model Number: 200w 300w 500w 1kw
Output Voltage: 12v 24v 48v 90v 120v 230v
Place of Origin: Shandong, China
Rated power: 200w 300w 500w 750w 1kw 1.6kw
Start wind speed: 2m/s
Tamper degree: 1:10 or manufacture according request
Type: Wind Power Generator
Working voltage: 12v 24v 48v
permanent magnet material: NdFeB, rare earch
rotor diameter: 1.9m

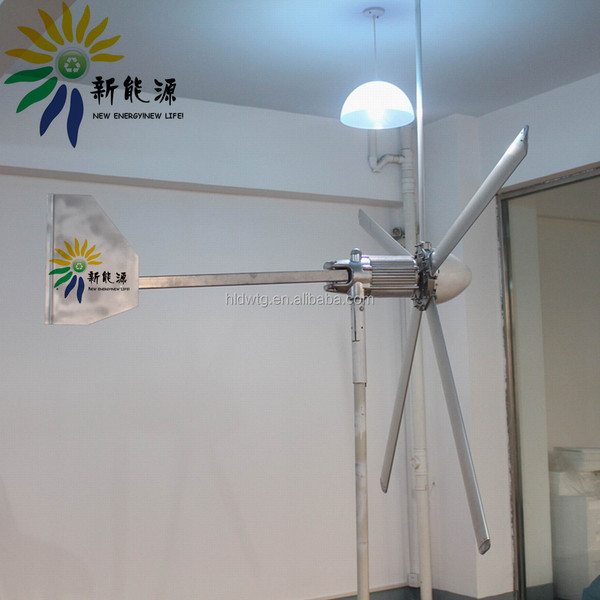

HENRYD! 200w 300w 500w 1kw aluminum wind turbine for home use
Aluminum blades, aluminum hub, aluminum generator with nacelle
| Item | FD1.7-0.2 | FD1.9-0.3 | FD2.0-0.5 | FD2.6-1.0 |
| FOB Price | US$200.00 | US$230.00 | US$285.00 | US$350.00 |
1.Product Main Features
- Gearless, direct drive, low RPM generator
- Low start up speed due to low cogging and resistive torque design
- High standard, quality components for use in harsh and extreme environments for wind turbines
- High efficiency and Low mechanical resistance energy loss
- Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure
- High strength from the specially desy selecign structure and fully heat treatment Aluminium
- Generator is designed using speciallted material and treated to resist corrosion and oxidation
- Designed for reliable and long operational lifetime under long-term full output
- Designed for 20-years operation life
- Patent protected design

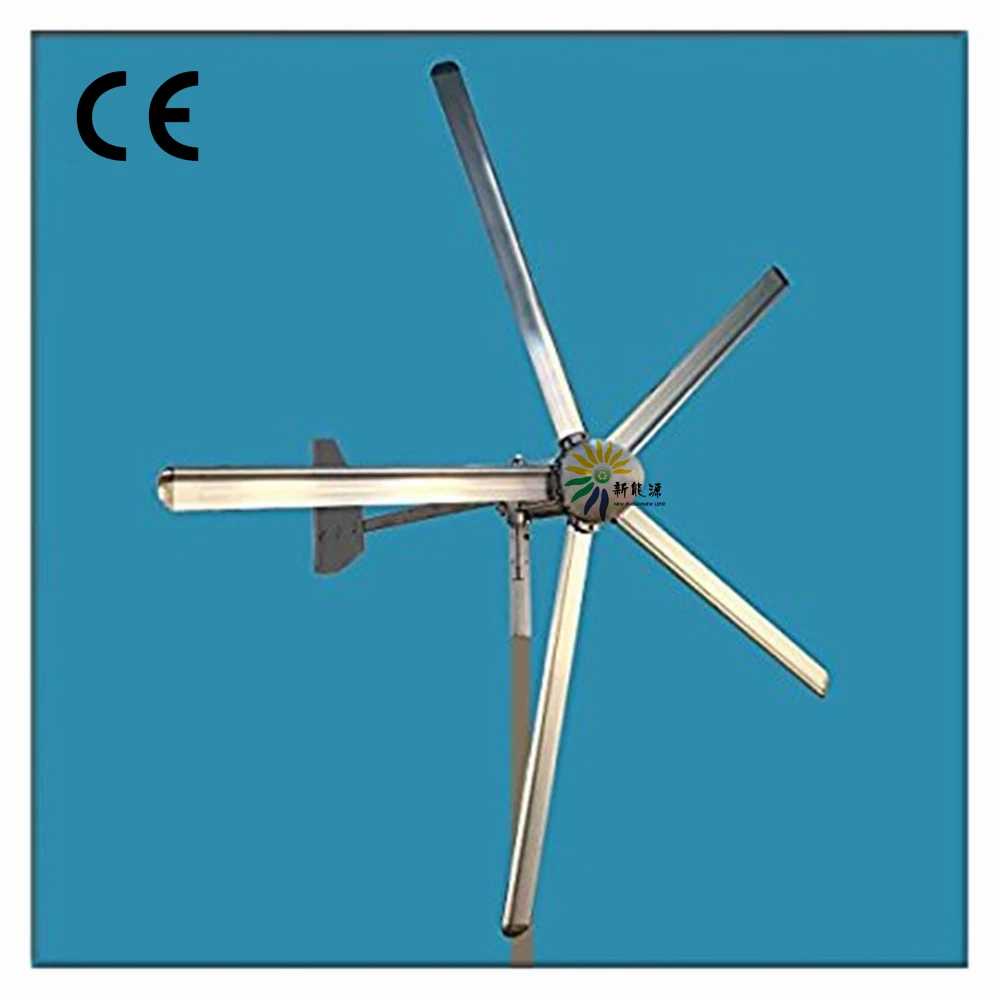

- Tail folding protection
- Whole wind turbine is aluminum alloy material, long work life
2. 200w 300w 500w 1kw aluinum wind generator spec
| Item | FD1.7-0.2 | FD1.9-0.3 | FD2.0-0.5 | FD2.6-1.0 |
| Blades rotor diameter(m) | 1.7 | 1.9 | 2 | 2.6 |
| Material | Aluminium alloy | |||
| Blades q'ty | 3 | 3 | 5 | 5 |
| Rated wind speed(m/s) | 8 | 8 | 8 | 8 |
| Start up wind speed(m/s) | 2 | 3 | 3 | 3 |
| Rated wind speed(m/s) | 3.0-20 | 3.0-20 | 3.0-20 | 3.0-20 |
| Survival wind speed(m/s) | 35 | 35 | 35 | 40 |
| Start up torque(n/m) | 0.4 | 0.4 | 0.5 | 0.7 |
| Speed regulation method | Yaw,Tail folding | |||
| Stop method | Controller auto brake | |||
| Generator type | 3 phase AC permanent magnet generator,directly drive | |||
| Rated output power | 200w | 300W | 500W | 1KW |
| Max output power | 300w | 450W | 750W | 1.5KW |
| Rated rotation speed (rpm) | 550 | 500 | 450 | 450 |
| working voltage | DC12V-48V | DC12V-48V | DC12V-48V | DC12-300V |
| FOB Price | US$200.00 | US$230.00 | US$285.00 | US$350.00 |
3. Before delivery, we provide plate form test record. The test item as below:
Start up torque
Rated torque
Rated rotation speed
Rated current
Rated voltage
Rated power
Isolation test
3 phase balance test
4. CE, ISO,IEC approved
5. Production Capacity: 300 sets per month
6. Main market: US, Canada, Australia, New Zealand, European...
7. Working system
Off grid working system:
SWT +PWM off grid controller with dump load+battey group + pure sine wave inverter
wind solar hybrid system (on grid/off grid):
SWT + solar panel

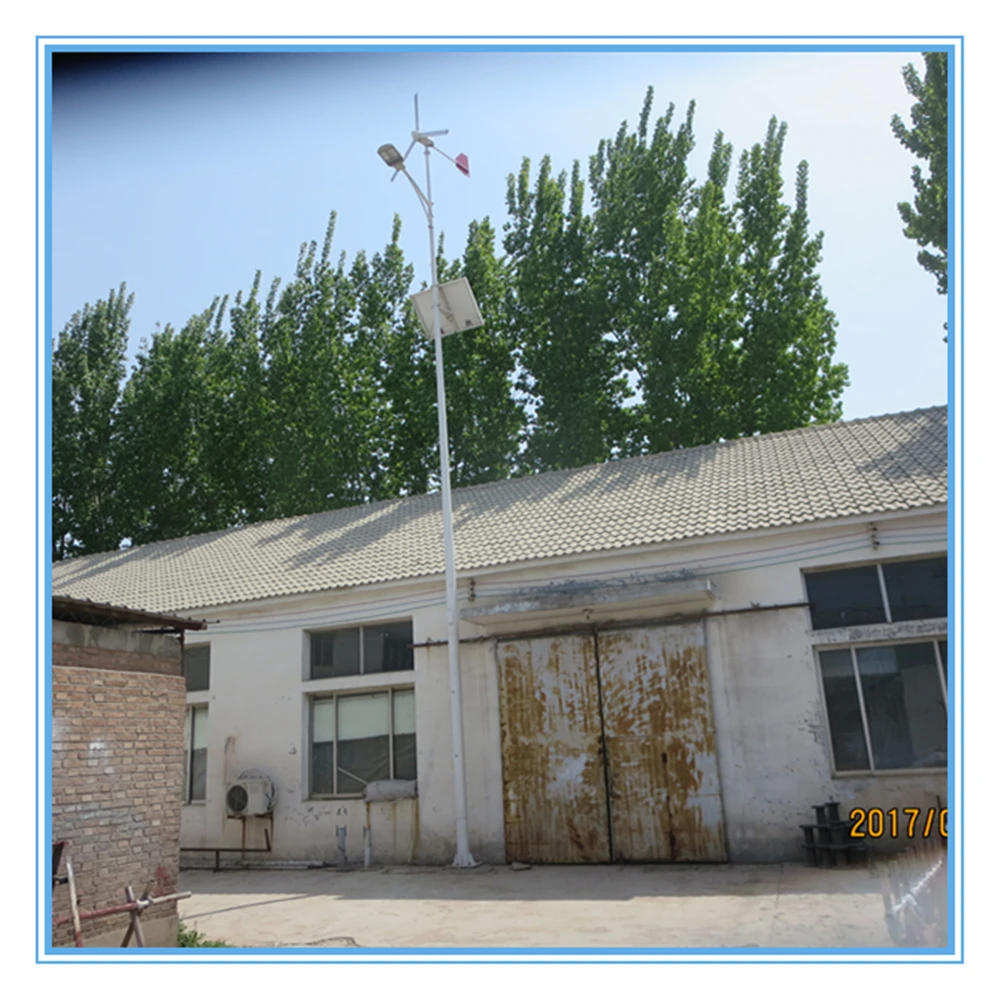

8. Application rooftop, street light, home, farm

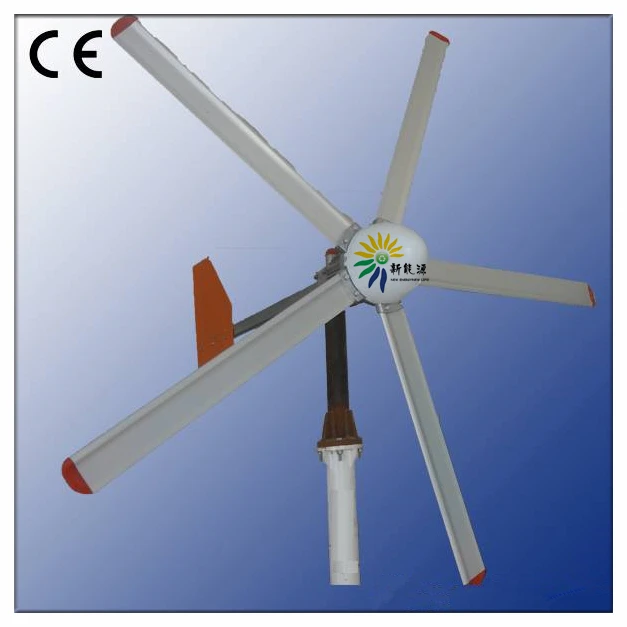

200W-1KW ALUMINUM wind turbine

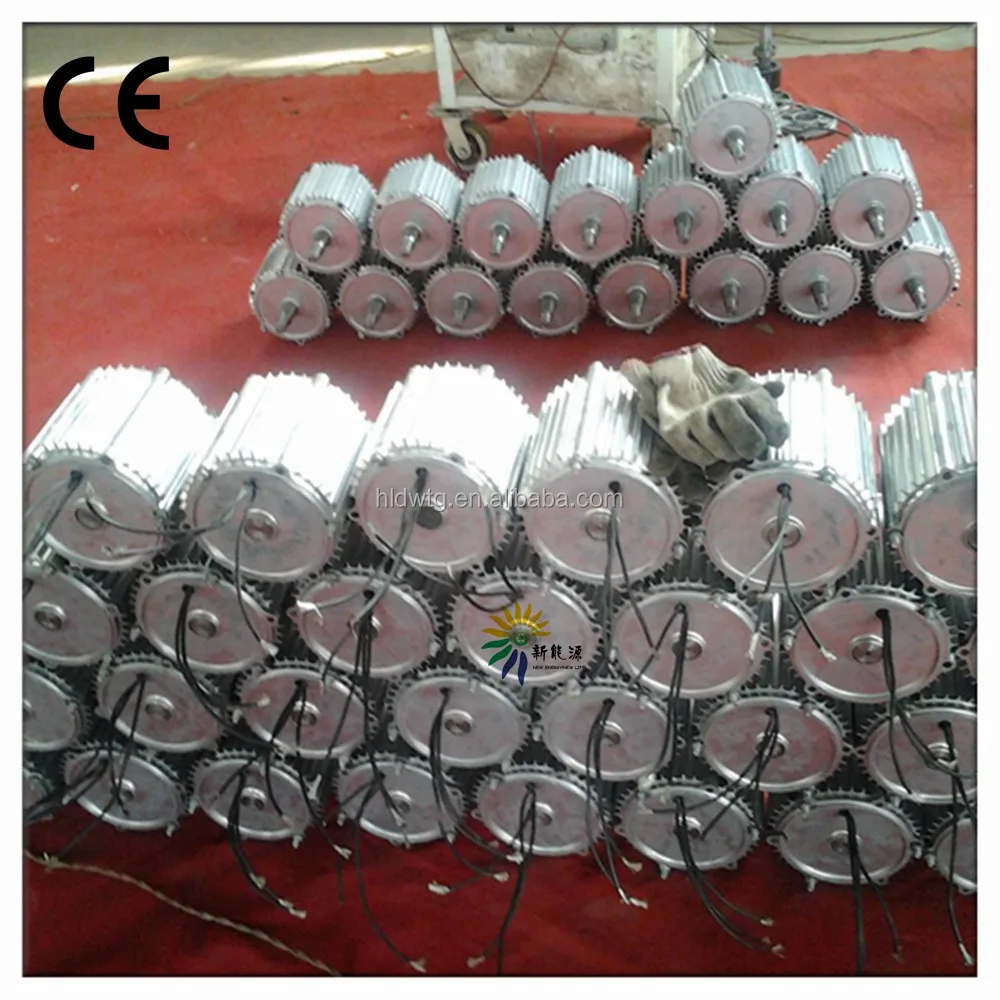

aluminum wind turbine generaotors in workshop

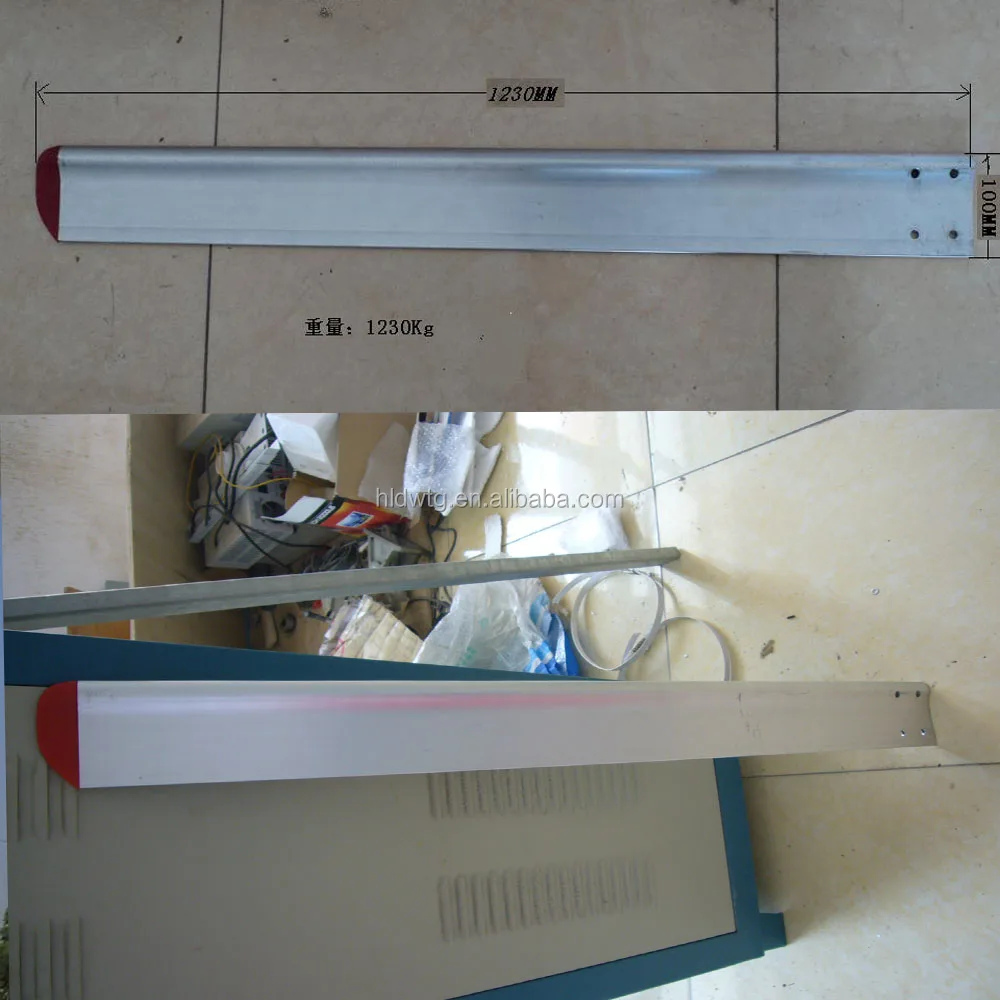

Aluminum alloy blades for wind turbine
Aluminum alloy hub/generator housing/nacelle
Blades rotor simple drawing

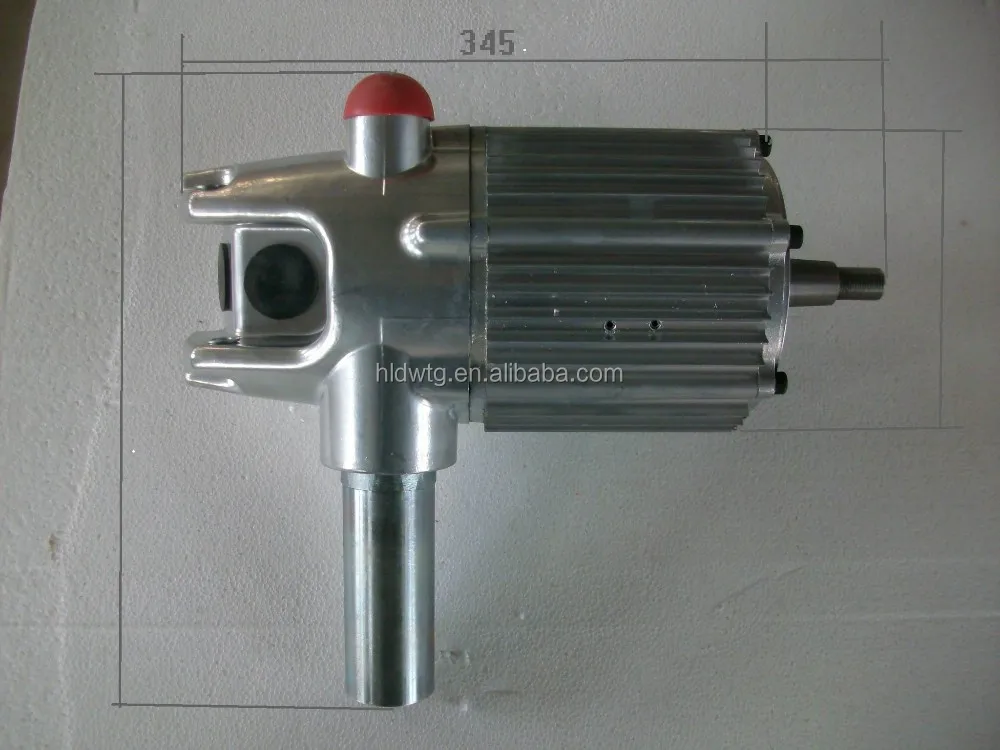

Generator with nacelle 500w

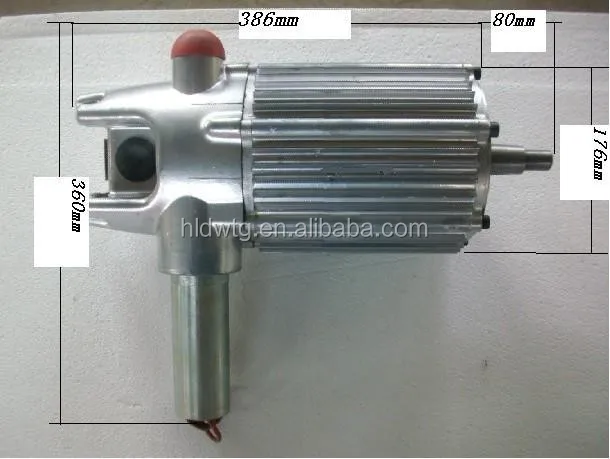

Generator with nacelle 1000w
plywood case
The sample can be delivery via express.
Bulk order can be Delivery by sea. FOB/C&F, CIF
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
