Product Overview
SPECIFICATIONS
Application: RV Yacht Campervan Home Solar System
Brand Name: NONE
Cell size: 166mm*83mm
Color: Black
Folded Size: 550*570*55mm
High-concerned chemical: None
Imp: 10.0A
Isc: 10.5A
Max. Power: 400W
Number of Cells: 8*18
OEM Order: Customer's LOGO and Label Print
Origin: Mainland China
Panel Dimensions: 2510*1100*15mm
Panel Efficiency: >23%
Solar cell: Monocrystalline Silicon Cells
Vmp: 40.0V
Voc: 48.0V
Weight: 8.4kg
max. power: 400W
Hello friend, welcome to our store! If you need other product models, please contact me and I will send you the product link to purchase! If you have any questions, please feel free to contact me anytime. For more details and special offers, please contact me: Email: 1635819592@qq.com WeChat: 15197834313 WhatsApp: +86-15197834313
Product Description

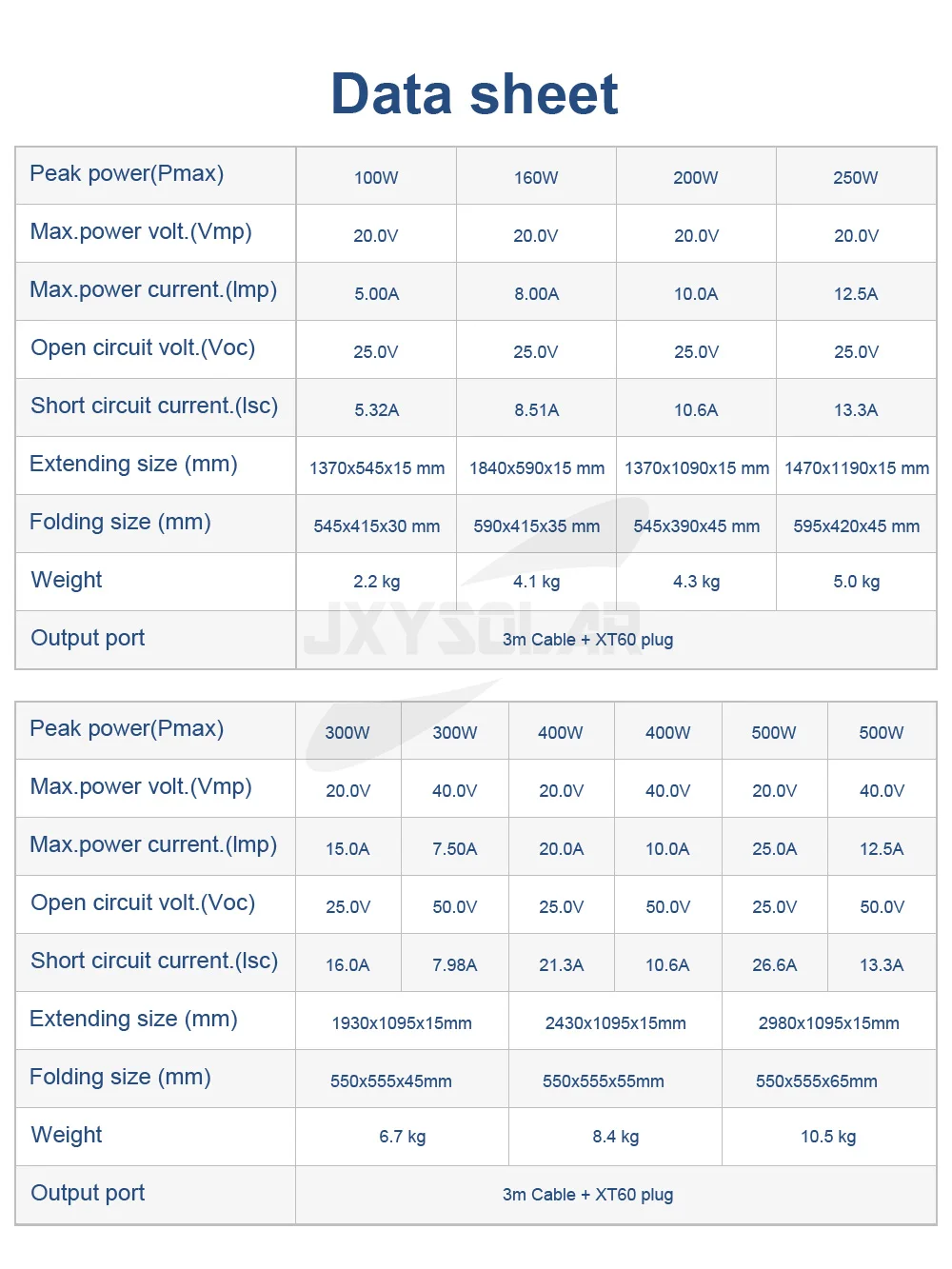

| ELECTRICAL CHARACTERISTICS | |
| Model | JXY-FR400M |
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 40.0V |
| Open-circuit Voltage (Voc) | 48.0V |
| Maximum Power Current (Imp) | 10.0A |
| Short-circuit Current (Isc) | 10.5A |
| Cells Efficiency (%) | >23% |
| Operating Temperature | -40鈩儈85鈩� |
| Maximum System Voltage | 600V DC (IEC) |
| Maximum Series Fuse Rating | 20A |
| Nominal Module Operating Temperature(NOMT) | 41±2鈩� |
| Temperature Coefficient of Pmax | -0.35%/鈩� |
| Temperature Coefficient of Voc | -0.27%/鈩� |
| Temperature Coefficient of Isc | +0.048%/鈩� |
| STC: Irradiance 1000W/m2 , Cell temperature 25C, AM=1.5. Tolerances of Pmax , Voc and lsc are within ±5% |
|
| MECHANICAL CHARACTERISTICS | |
| Solar Cell | Monocrystalline Silicon Cells (166mm*83mm ) |
| Number of Cells | 144(8*18) |
| Extending Size | 2510x1100x15mm |
| Folding Size |
550x570x55mm |
| Weight | 8.4kg |
| Backsheet | Black/White/Transparent |
| Output Cables | 3.0M, 2.5mm² Photovoltaic cable |
| Connector | XT60 Connector |
| Accessories | XT60 to Anderson, XT60 to GX16, XT60 to MC4, XT60 to DC*3 |
