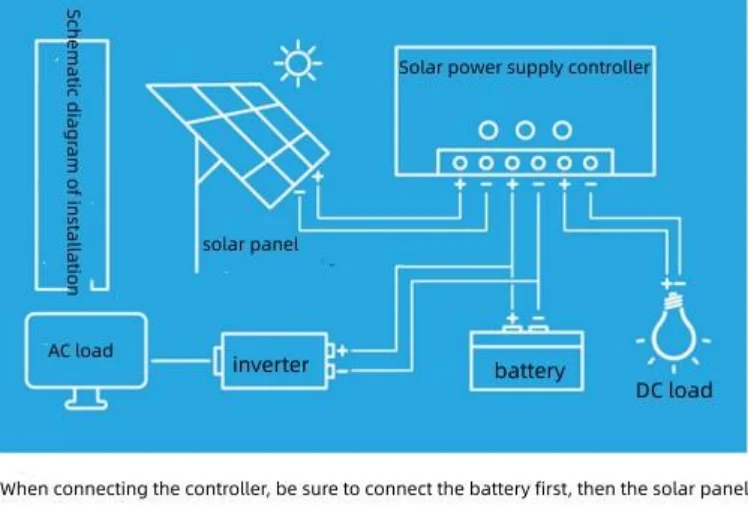

Schematic diagram of electric principle of solar connection

Precautions for use

1: Solar panels should be placed in direct sunlight and angled to receive sunlight for maximum power generation.

2: This product is suitable for mobile energy storage power equipment with rated voltage DC 24-48V (with built-in solar charging protection function) or battery charging. It can also charge higher voltage levels of energy storage cells after multiple in-series charges. However, the output electrodes of the solar panel cannot be used to charge the battery directly, so a solar charging controller must be installed.

To protect the battery from overcharging or to prevent uncontrolled damage to the solar panel/battery and the person after connecting the reverse electrode. If the device is integrated with an energy storage, it is connected to the corresponding solar charging port as required by the manufacturer of the energy storage integrated device.

3: When encountering rain, it will not affect normal use.

(Note that it should not be contacted by conductive/corrosive liquid such as seawater, which will cause a short circuit inside the junction box and cause abnormal power generation. If there is, rinse it with clean water and dry it in time.)

4: When connecting the solar controller/energy storage integrated device, ensure that the positive and negative terminals of the interface are connected correctly.

5: Check product specifications for power, current, and voltage requirements before adding solar controllers, batteries, or energy storage devices. Do not exceed the limit to prevent device damage and uncontrollable consequences.

6: The voltage of a solar panel in sunlight should not exceed the safety voltage of the human body, but it should also avoid direct contact with the electrodes of short-circuiting devices to avoid electrocution resulting in a safety risk! If the solar panel is damaged, stop using it.

7: It should be handled gently when in use, do not beat, heavy load, impact, otherwise may seriously damage the solar cells!
