SPECIFICATIONS

Blade material: Nylon fiber

Blades diameter: 3.1m

Blades length: 1.5m

Blades number: 3

Brand Name: Naier

Generator: Three phase permanent magnet generator

Maximum power: 2200W

Model Number: NE-2000L

Place of Origin: Jiangsu, China

Rated power: 2000W

Rated voltage: 48v//96v/120v/220v/240v/380v

Rated wind speed: 10m/s

Start up wind speed: 2.5m/s

rotor diameter: 3.1.m

Product Description

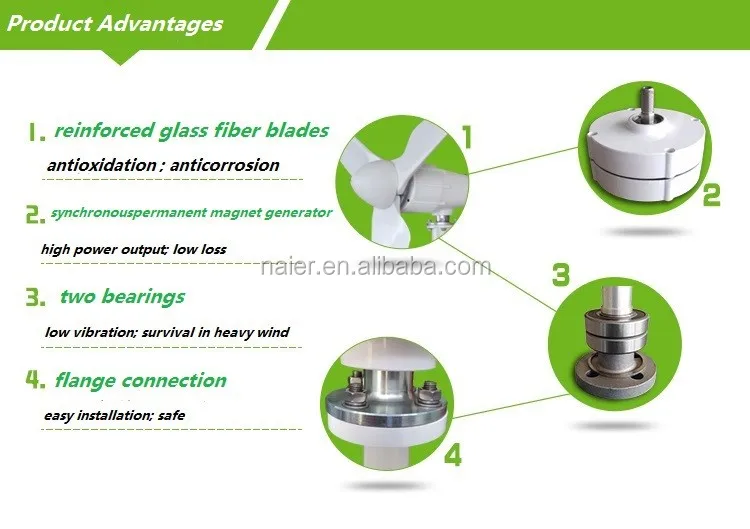

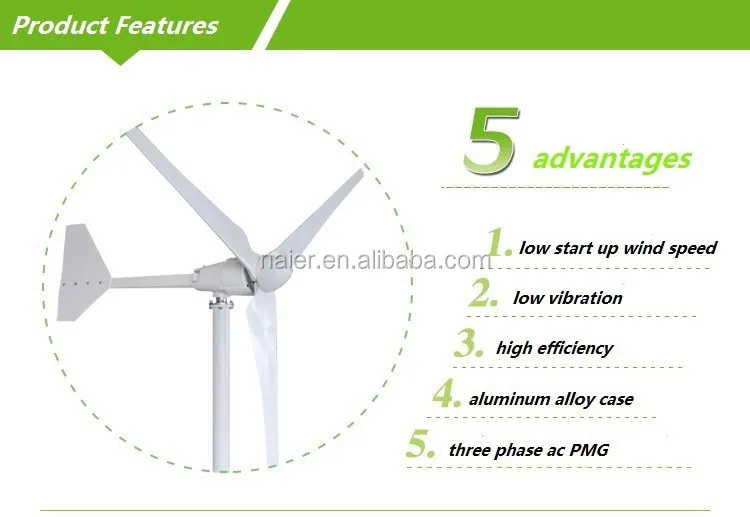

Product Features

1.Casting aluminum alloy body, compact, little vibration

2.Excelent output,900w at 8m/s

3.Easy installation, tube or flange connection optional

4.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.

5.Tail adopts mechanical yaw technique, making it survive storm and run safely

6.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.

7.Controller,inverter can be matched accroding to customers' specific needs

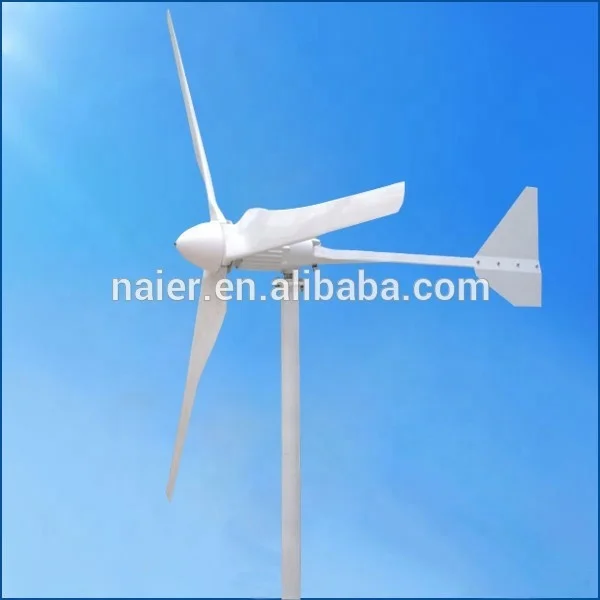

NE-2000L 2KW HORIZONTAL WIND TURBINE
Rated power	2000W
Rated voltage	48v or 96v or 120v or 220v or 240v or 380v for option
Start up wind speed	2.5m/s
Rated wind speed	10m/s
Survival wind speed	55m/s
Blades material	Nylon fiber
Blades number	3

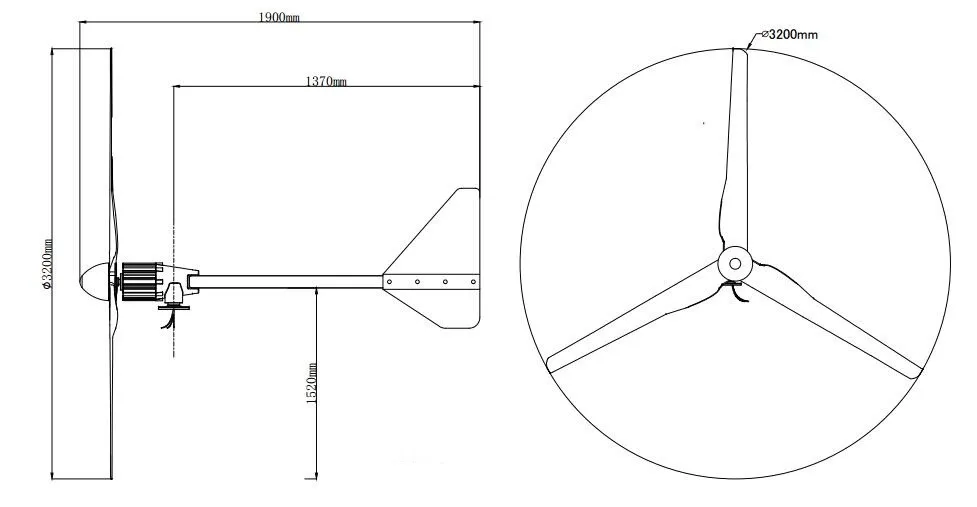

Wheel diameter	3.1m
Body material	Aluminum alloy
Top net weight	56kg
Generator	Three phase permanent magnet ac synchronous generator
Magnet material	NdFeB
Control system	Wind wheel yaw
Speed regulation	Automatically adjust windward direction
Working temperature	(-40°C) - (80°C)
Design life	20 years
Certification	CE, ISO14001, ISO 9001, SGS
