SPECIFICATIONS

Blades length: 3m

Blades quantity: 2PCS

Brand Name: R&X

Control system: Electromagnet

Generator type: Three phase AC permanent magnet generator

Material of blades: FRP(glass fiber)

Model Number: RX-SV

Output Voltage: 48V-380V

Place of Origin: Jiangsu, China

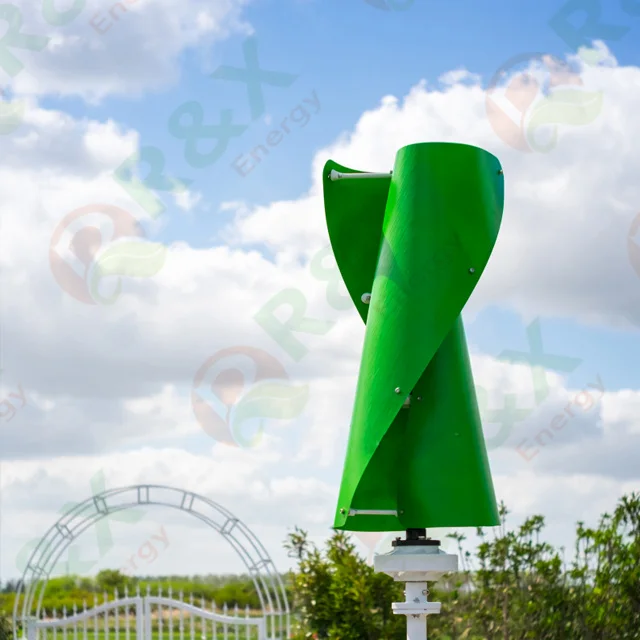

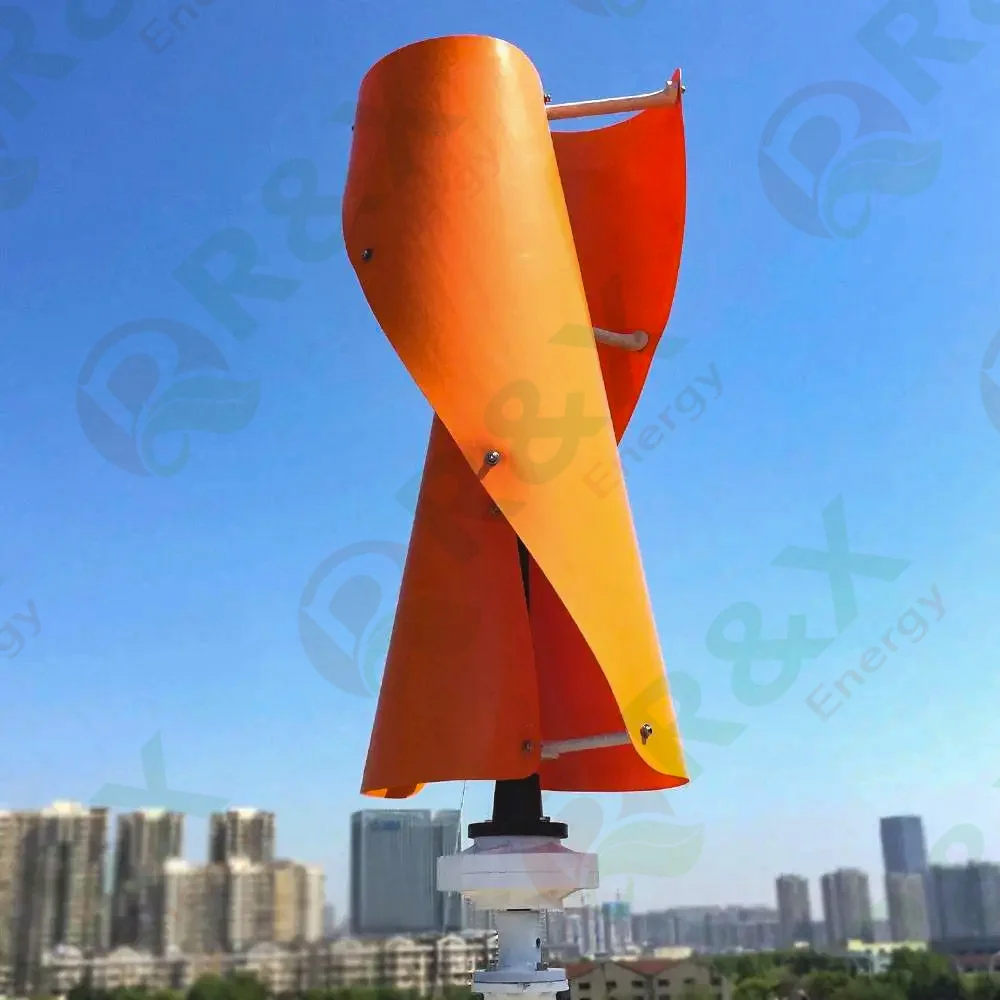

Product name: 5kw vertical wind turbine spiral shape

Rated speed: 11m/s

Start up speed: 2m/s

Start wind speed: 2.0m/s

Survinval wind speed: 50m/s

Working temperature: -20℃-50℃

rotor diameter: 1000mm

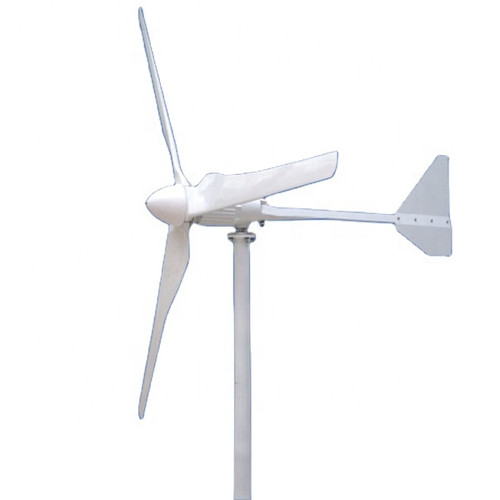

You May Like

Products Description

New Energy Small Wind Power Generator 5kw 10kw 15kw Vertical Wind Turbine in 48v 120v 220v

1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such
advantages: high utilization of wind energy which contributes to the annual energy output.
4.The generators, adopting patented maglev generator,with a special kind of stator design, efficiently decrease resistance torque.
Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.

Recommended for

--Household,Garden,Farm,Urban,Rooftop

--Telecom sites

--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection

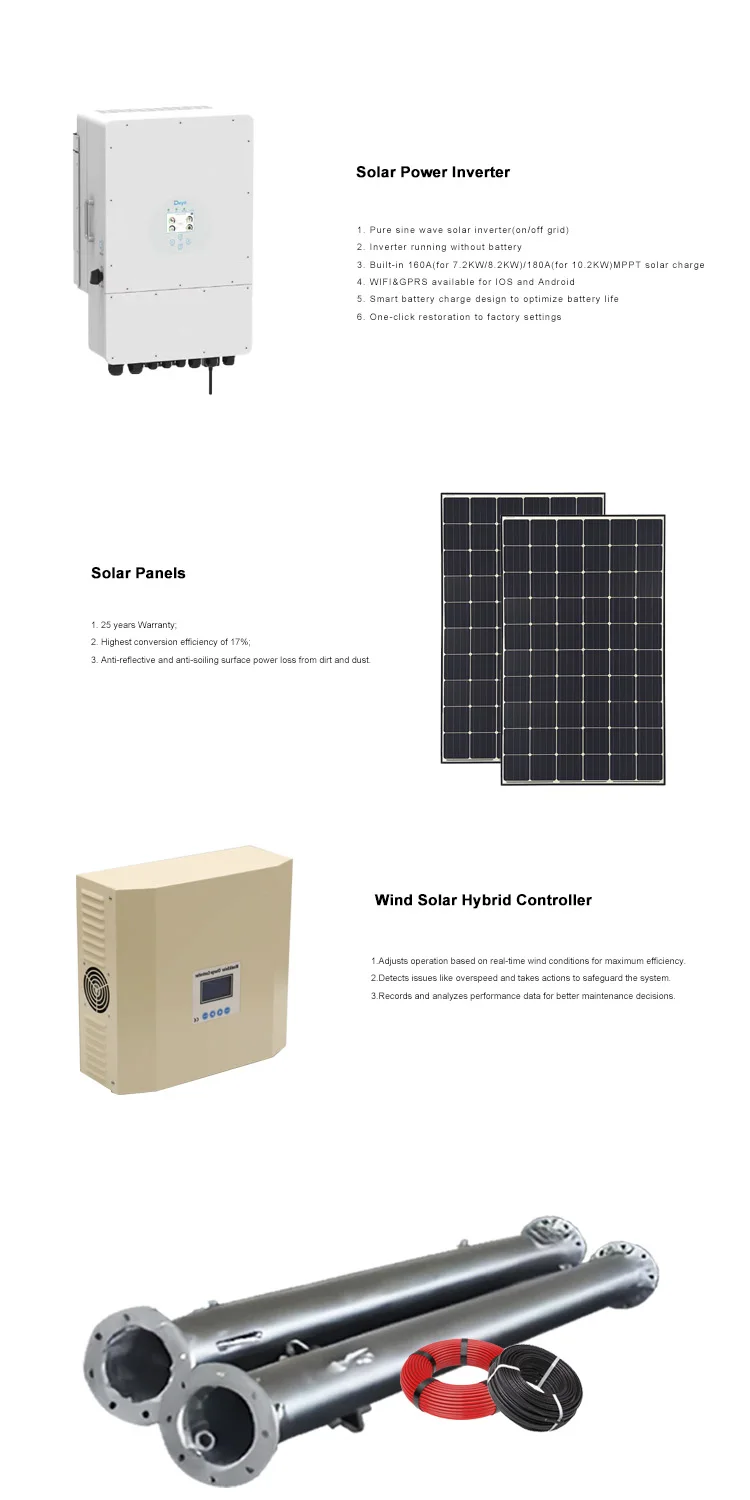

Wiring Diagram

Power curve

Specification

Rated power	5000w
Max power	5100w
Rated Voltage	48V-380V
Blade Length	3M
Rotor diameter	1M
Weight	180kg
Start up wind speed	2 m/s
Rated wind speed	11 m/s
Survinval wind speed	50 m/s
Blade quantity	2pieces
Blade material	FRP(glass fiber)
Packing	Carton/wooden box
Generator type	Three phase AC permanent magnet generator
Braking mode	Electromagnetism
The wind adjustment	Automatically adjust to windward
Noise level	<50dBA
Degree of protection	IP54
Temperature	-20℃-50℃
Design life	20 years

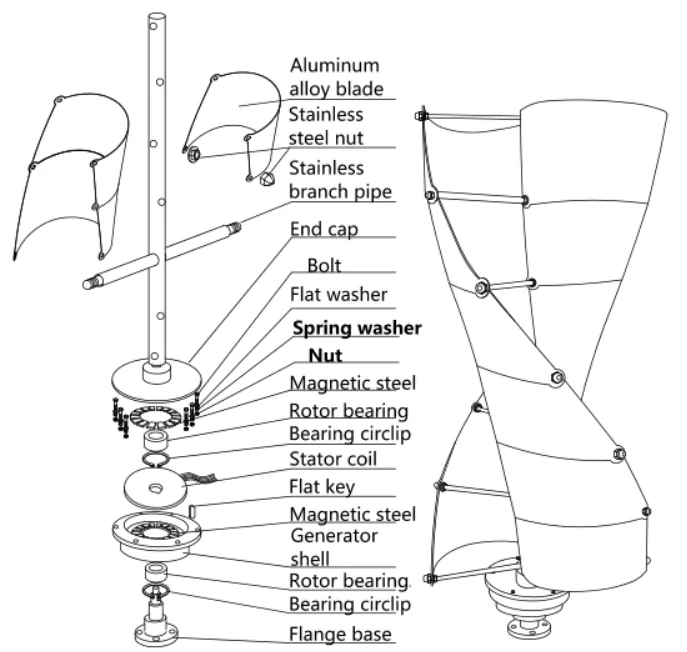

Drawing

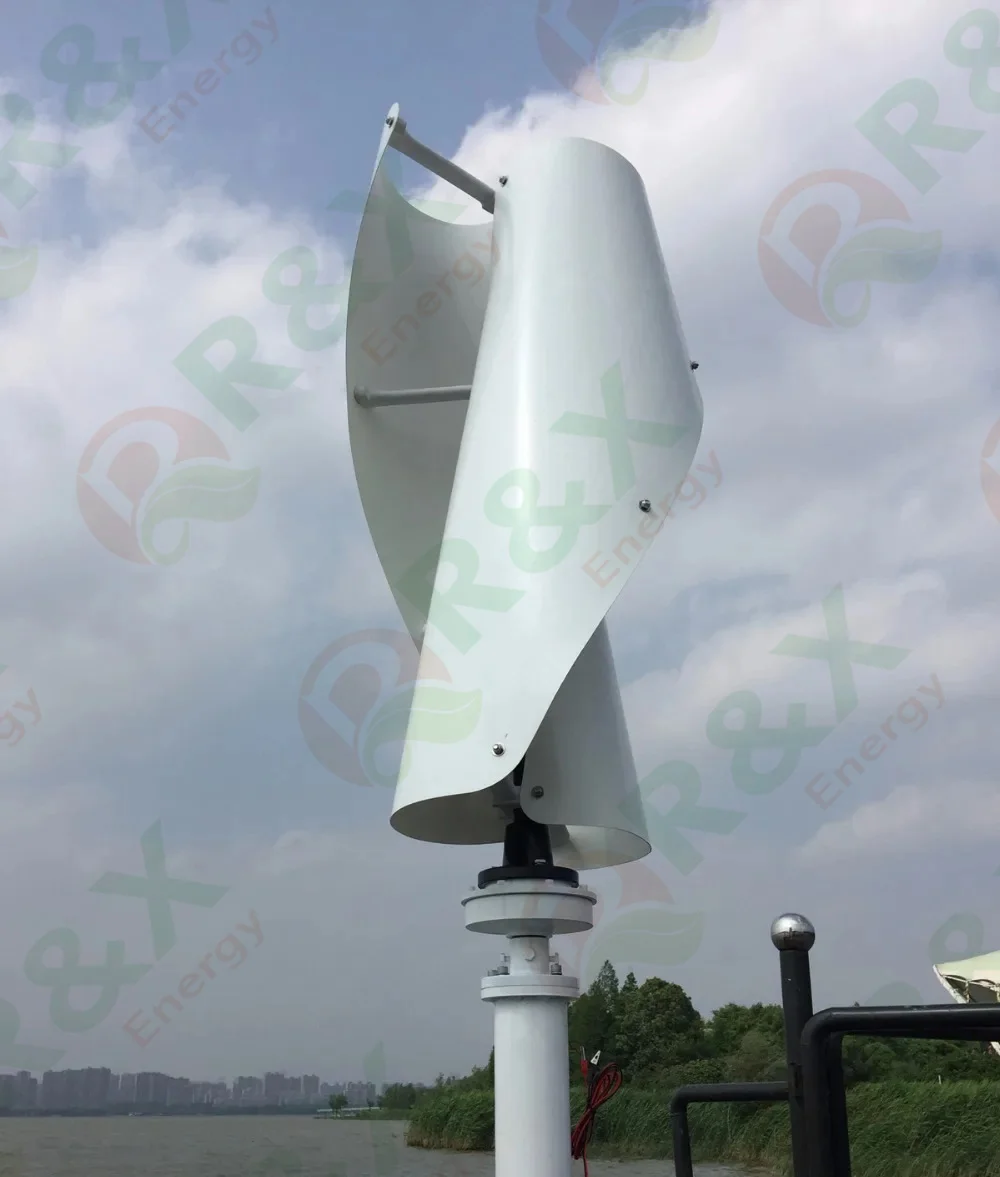

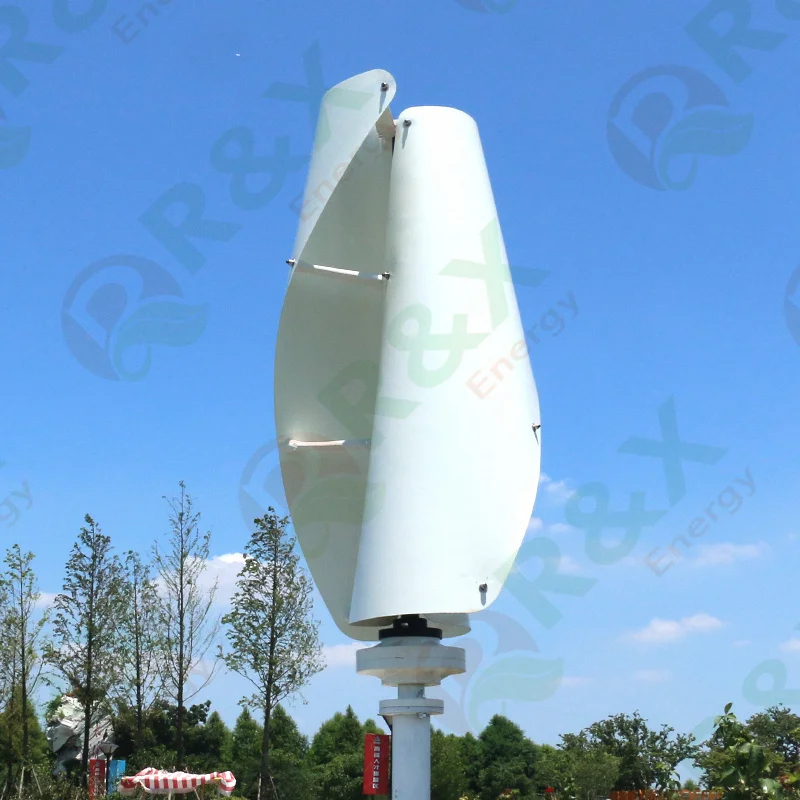

Project Photos Show
