SPECIFICATIONS

Brand Name: elege

Generator: 3 phase AC meglev generator

Gross weight: 68kg

Max power: 1100W

Model Number: elege-1000w

Output Voltage: 24V/48V

Place of Origin: Jiangsu, China

Rated wind speed: 12m/s

Safe wind speed: 40m/s

Started wind speed: 1.3m/s

rotor diameter: 1.1m

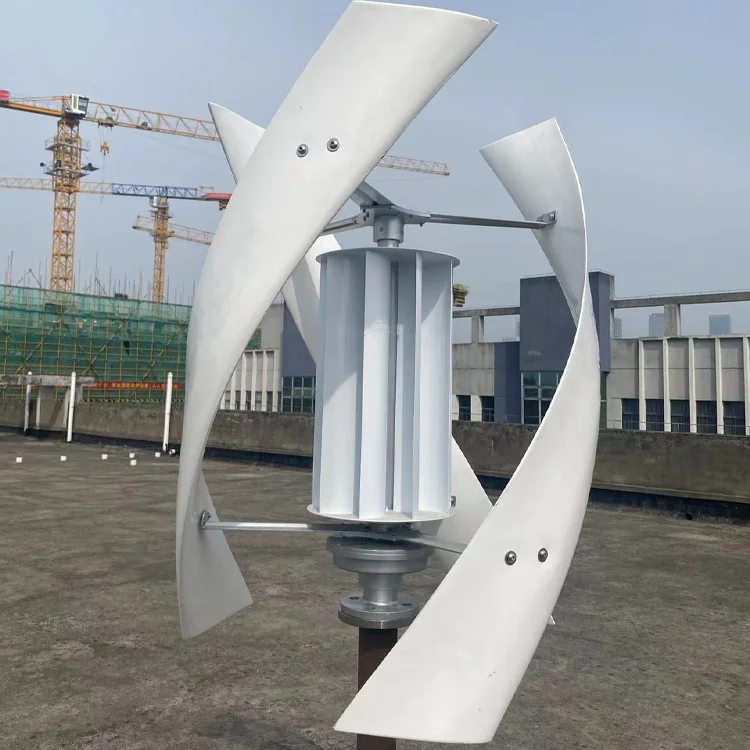

1000w 1kw 24v low noise Vertical Wind Turbine Generator with inner fiberglass blades wind fan for Home use

Started wind speed (m/s)	1.3 m/s	1.3 m/s	2 m/s	2 m/s	2 m/s
Cut-in wind speed (m/s)	2.5 m/s	2.5 m/s	3 m/s	3 m/s	3 m/s
Rated Wind speed (m/s)	10 m/s	10 m/s	10 m/s	10 m/s	10 m/s
Rated voltage(AC)	12/24V	12/24V	12/24V/48v	24V-120v	24V-220v
Rated power(W)	400W	600W	800W	1000W	2000W
Max power(W)	450W	650W	850W	1100W	2100W
Rotor Diameter of Blades(m)	0.6m	0.6m	1.1m	1.1m	1.1m
Product assembly weight (Kg)	<20Kg	<22Kg	<37Kg	<70Kg	<37Kg
Blades height(m)	0.8m	1m	1.32m	1.64m	1.92m
Safe wind speed (m/s)	45m/s
Blades quantity	3
Blade material	fiber glass
Generator	coreless generator 3 phase AC
Generator protection grade	IP54
Work environment temperature	-25℃-45℃

• Q: Are you a factory? A: We have our own electronic equipment, antenna production factory. • Q: Can I get some samples? A: Yes, sample order is available for quality inspection and market testing, it will be freight collect. • Q: What is the lead time? A: It usually takes about 1-3 days to produce samples. It usually takes about 3-7 days to produce the product. • Q: What is your payment term? A: We usually accept PAYPAL, T/T as the main payment method, other payment methods can also be negotiated. • Q: Quality problem? A: If there is any quality problem or question, we can provide technical support or return service. • Q: How can I contact us? A: Send your inquiry details below, click "Send"! ! ! Free samples and best answers are waiting for you.
