SPECIFICATIONS

Brand Name: RX

Certification: CE RoHs

Customized: Yes

Cut-in wind speed: 2.5m/s

Model Number: RX-SV Series

Output Voltage: 48v

Output voltage: 48V

Place of Origin: Jiangsu, China

Start wind speed: 2m/s

Start-up wind speed: 1.3m/s

Warranty: 10YEARS

is_customized: Yes

rotor diameter: CUSTOM

Product Description

Noiseless 3KW Vertical Axis Wind Turbine Generator High Efficient VAWT For Home

1). Rich colors: white, orange, yellow, blue, green, mixed, customizable.

2). One-piece Blade design ensures higher rotational stability.

3). Coreless PMG provides lower start torque/wind speed and longer service life.

4). Maximum RPM protection. No higher than 300RPM, regardless of the wind speed.

5). Easy installation, Screw & Play.

6). 48V could be customized.

7). Design service life 10~15 years.

Data Sheet

Rated power	1500W	2000W	3000W	4000W	5000W	8KW
Rated voltage	12V-220V
Start up speed	1.5m/s(5.4km/s)
Rated speed	11m/s(39.6km/s)
Safe speed	45m/s(162km/s)

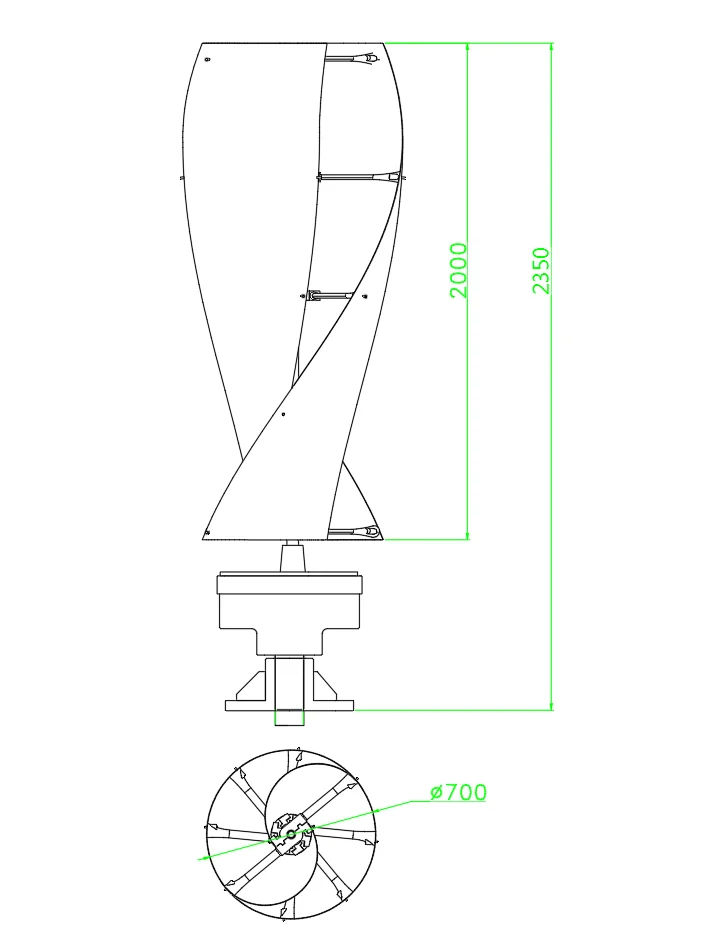

Diameter of wheel	670mm	750mm	700mm	800mm	1000mm	1500mm
Blades height	1500mm	1700mm	2000mm	2180mm	3000mm	4000mm
Quantity of blades	12 PCS
Material of blades	Casting aluminium alloy
Generator	magnetic suspension
Control system	Electromagnet
The wind adjustment	Automatically adjust windward direction
Lubrication way	Lubrication grease
Working temperature	-40℃～80℃
