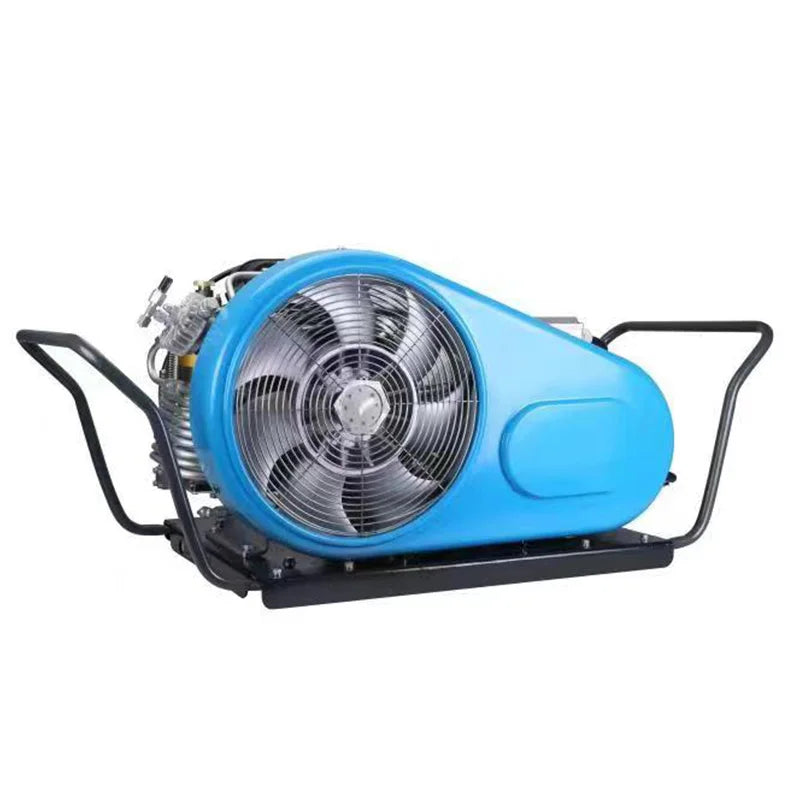

300 Bar 320L/min High Pressure Breathing Air Compressor GDR-320E for Dive Scuba Tank

300 Bar 320L/min High Pressure Breathing Air Compressor GDR-320E for Dive Scuba Tank

Regular price $17,630.00 USD
Regular price $0.00 USD Sale price $17,630.00 USD
Sale sale
Shipping calculated at checkout.
power(w)
working pressure
Quantity

Description

SPECIFICATIONS

Application: Paintball / Scuba Diving / Fire Fighting

Charging rate: 320L/min

Cooling Method: Air Cooled

Cooling method: Air Cooling

Filling cylinder time: 6.0L cylinder 0-330bar/6min

MOQ: 1 Set

Motor power: 7.5kw 10 hp

OEM: Offered

Pressure: 300bar Dive 225 Bar Firefighting 330 Bar(adjustable)

Product name: 300 Bar 320L/min High Pressure Breathing Air Compressor GDR-320E

Speed: 1950rpm

Weight (KG): 138

brand name: Rocky

configuration: Portable

core components: PLC,Engine,Motor,Pump,Bearing

dimension(l*w*h): 1300*640*700mm

gas type: Air

lubrication style: Lubricated

machinery test report: Provided

model number: GDR-320E

mute: Yes

place of origin: Shanghai, China

power source: AC Power

type: Screw

video outgoing-inspection: Provided

voltage: 220V/380V/415V/600V or customized

warranty: 1 Year

Products Description

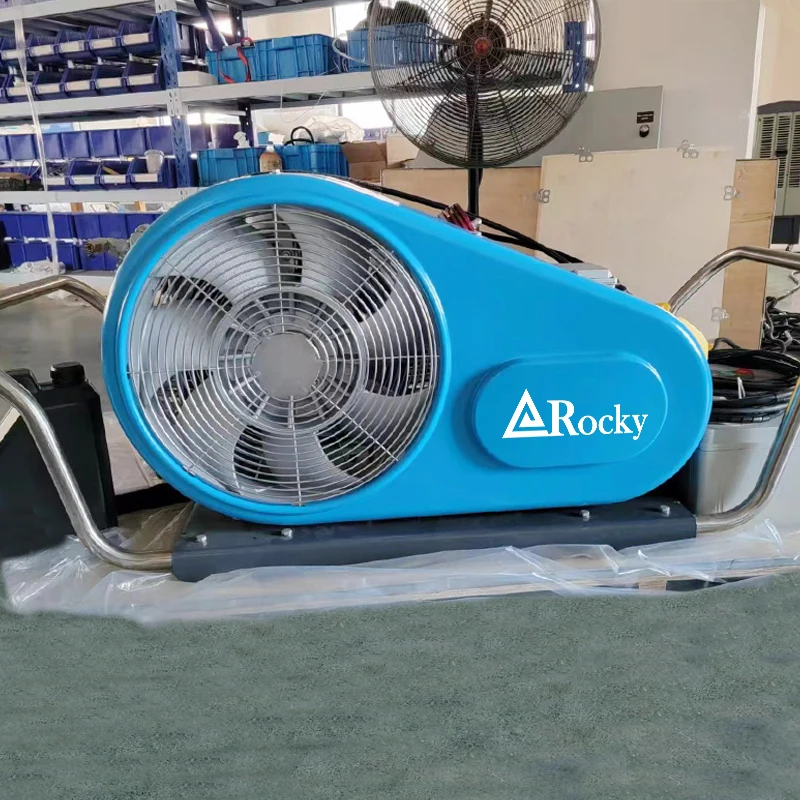

300 Bar 320L/min High Pressure Breathing Air Compressor GDR-320E for Dive Scuba Tank
300 Bar 320L/min High Pressure Breathing Air Compressor GDR-320E for Dive Scuba Tank
Model:GDR-320E Charging rate:320L/min Filling cylinder time: 6.0L cylinder, 0-330bar/6min Working pressure:300bar Dive 225 Bar Firefighting 330 Bar(adjustable) Speed:1950rpm Driven by:Electric motor Power:7.5kw Dimensions (L*W*H):1300X640X700mm Weight:138kg Compression stage:3 Lubricating type:Splash lubrication Amount of lubricating oil:2.8L Opertating temperature:5- 45 ℃

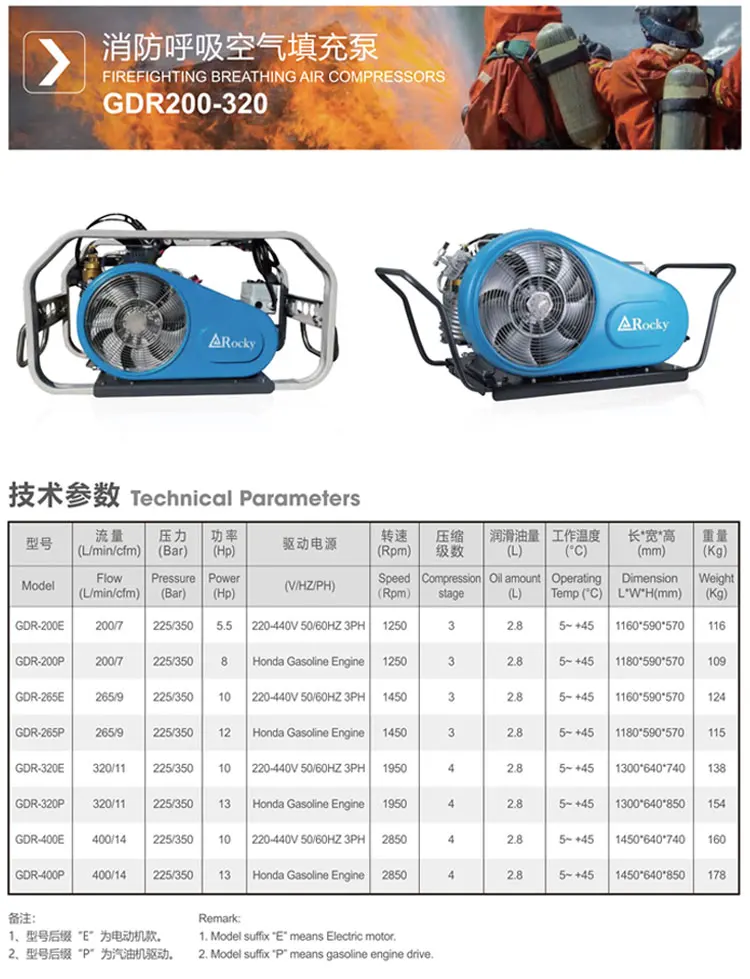

Technical Parameters
Model
Free air delivery
Inlet pressure
Wroking pressure
Power
Dimensions (L*W*H)
Weight(kg)
GDR-100E
100L/min 3.5cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
Electric motor
2.2 kw
700*380*420mm
46
GDR-100P
100L/min 3.5cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
SUBARU/HONDA 4 strokes gasoline engine
4.2kw
770*420*420mm
44
GDR-150E
150L/min 5.2cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
Electric motor
3 kw
660*400*420mm
52
GDR-150P
150L/min 5.2cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
SUBARU/HONDA 4 strokes gasoline engine
5kW
790*420*420mm
74
GDR-200E
200L/min 7.06cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
Electric motor
4kw
1100*550*570mm
95
GDR-200P
200L/min 7.06cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
SUBARU/HONDA 4 strokes gasoline engine
4kw
1100*550*570mm
102
GDR-265E
265L/min 9.35cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
Electric motor
5.5kw
1250*590*630mm
120
GDR-265P
265L/min 9.35cfm
Atmosphere
Dive 225 Bar Firefighting 330 Bar
SUBARU/HONDA 4 strokes gasoline engine
5.5kw
1250*590*630mm
135
GDR-400E
400L/min
Atmosphere
Dive 225 Bar Firefighting 330 Bar
Electric motor
7.5kW
1300*640*740mm
138 kg
Performance characteristics 1.High air volume and high strength black plastic nylon fan blades 2.High-pressure coil condensing three-stage compressor main engine, splash lubrication. 3.Output hose oil-filled shock-resistant pressure gauge (installed on the inflation hose valve). 4.High-quality air intake filter, built-in micron-level pleated filter element. 5.High-pressure oil-water separator and terminal air purifier assembly for reliability and durability testing. 6.Optimized high-quality frame design of sheet metal frame. 7.Hand-rotated oil-water separation pressure relief drain valve. 8.High-efficiency filtration system, can effectively purify the air, the output reaches the EU EN12021 breathing air standard. 9.Long-life compressor main engine design, the lowest noise is about 86 decibels. 10.Standard high pressure output hose, standard fire DIN 5/8 output, maximum output 330BAR pressure.
Application Industry
Portable Scuba Diving Breathing Air Compressor Application Industry
High-pressure industrial breathing air compressors are widely used in firefighting, diving, sports, national defense, aerospace, petroleum and petrochemical, medicine, ships, marine engineering, air tightness detection, electricity, gas, precision instruments, gas cylinders, steel cylinders, valves, pipelines, pressure instruments, high-pressure boilers and other high-pressure containers or pressure containers for air tightness inspection, air tightness testing, pressure testing, strength testing, air tightness testing and other fields.
Why Choose Us

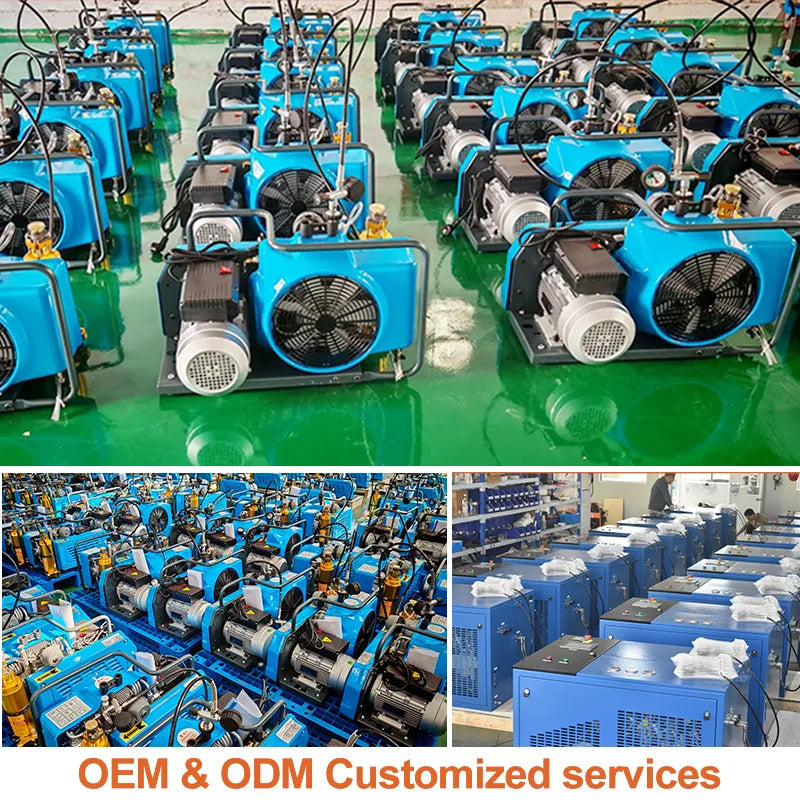

QUALITY ASSURANCE We have obtained certificates for good quality, including ISO9001-2000 quality. 24H AFTERSALES SERVICE Professional after-sales team. providing 24h online service. PROFESSIONAL More than 10 professional technical engineers. 18 years of export experience... OEM & ODM SERVICE We provide customized products with different voltages, different pressures, etc. AFTER SALE SERVICE 1. 24H/7D after sale services. 2. Acceptable five-year warranty. 3. Prompt support policy, complete training system. 4. Prompt service fixed after-sale problems within 1 day. 5. Local service and training for agents & distributors.
Company Profile
Shanghai Rocky Machinery Co., Ltd. was established in 2003 and has 18 years of experience in the air compressor industry. It is an innovative enterprise integrating production, trade, service, research and development.

We are professional gas compressors manufacturer since 2003, Germany standard, more than 100 workers, annual sales exceeding 20 million US dollars with 13 years of exporting experience, strict quality control and delivery on time. We not only supply gas compressor including screw air compressor, but also supply spares parts and after-treat machines.

Our main products series as follows.
1. Oil-injection Screw air compressor
2. Dry Oil-free Screw air compressor
3. Oil-free water lubricated screw air compressor
4. Oil-free scroll air compressor
5. Oil-free/Oil-lubricated piston compressor
6. Mobile Screw air compressor( Motor driven/ Diesel engine driven)
7. Oxygen/Nitrogen generators/boosters
8. High Pressure Breathing Air Compressor
9. Refrigerant air dryer/ Desiccant air dryer
10. Precision line filter/ water separator

Rocky will continue to promote technological innovation and progress in line with the mission of "innovation reflects value", and achieve win-win results with global partners, suppliers and employees. Create a new world of "energy saving, environmental protection and intelligence" in the field of air compressors.
