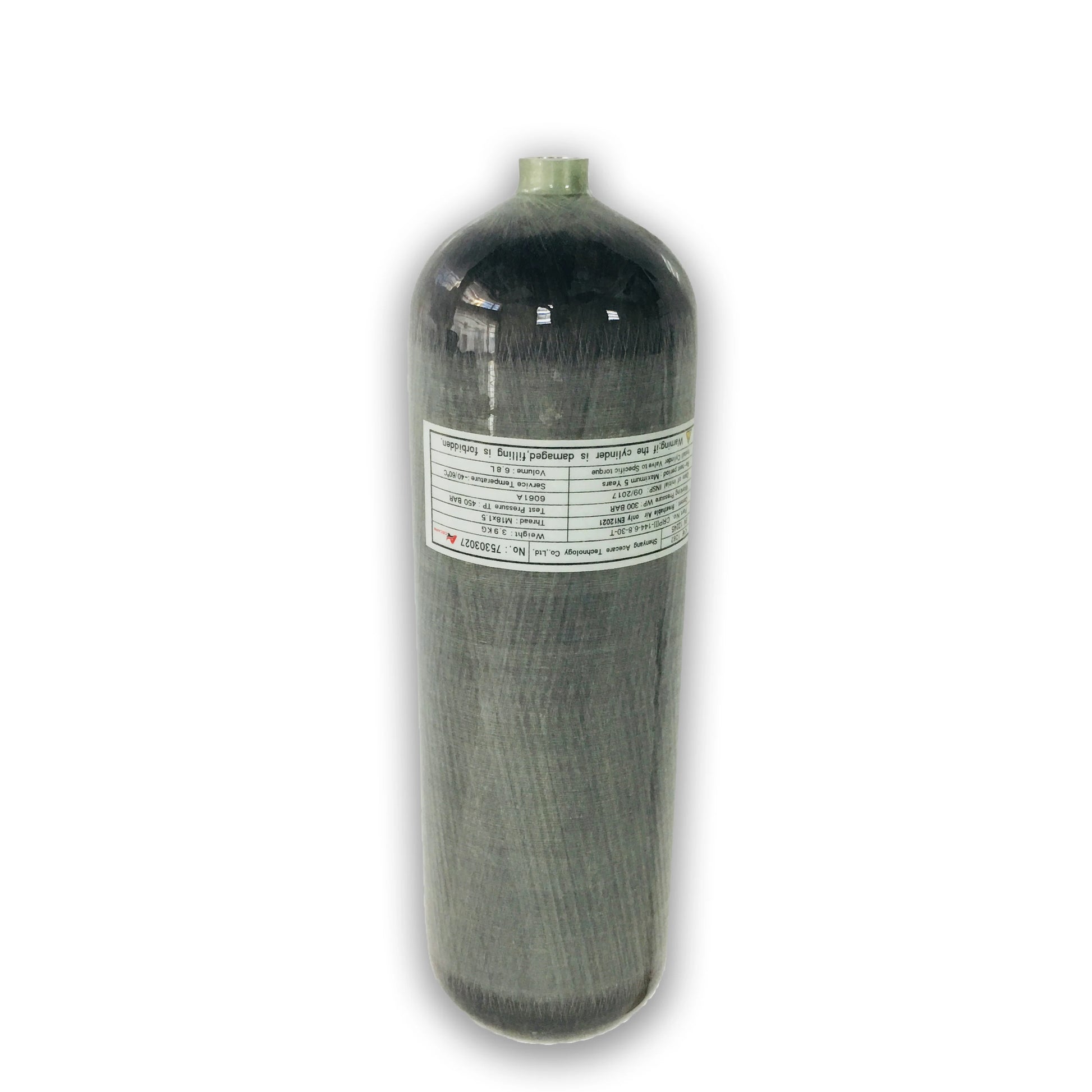

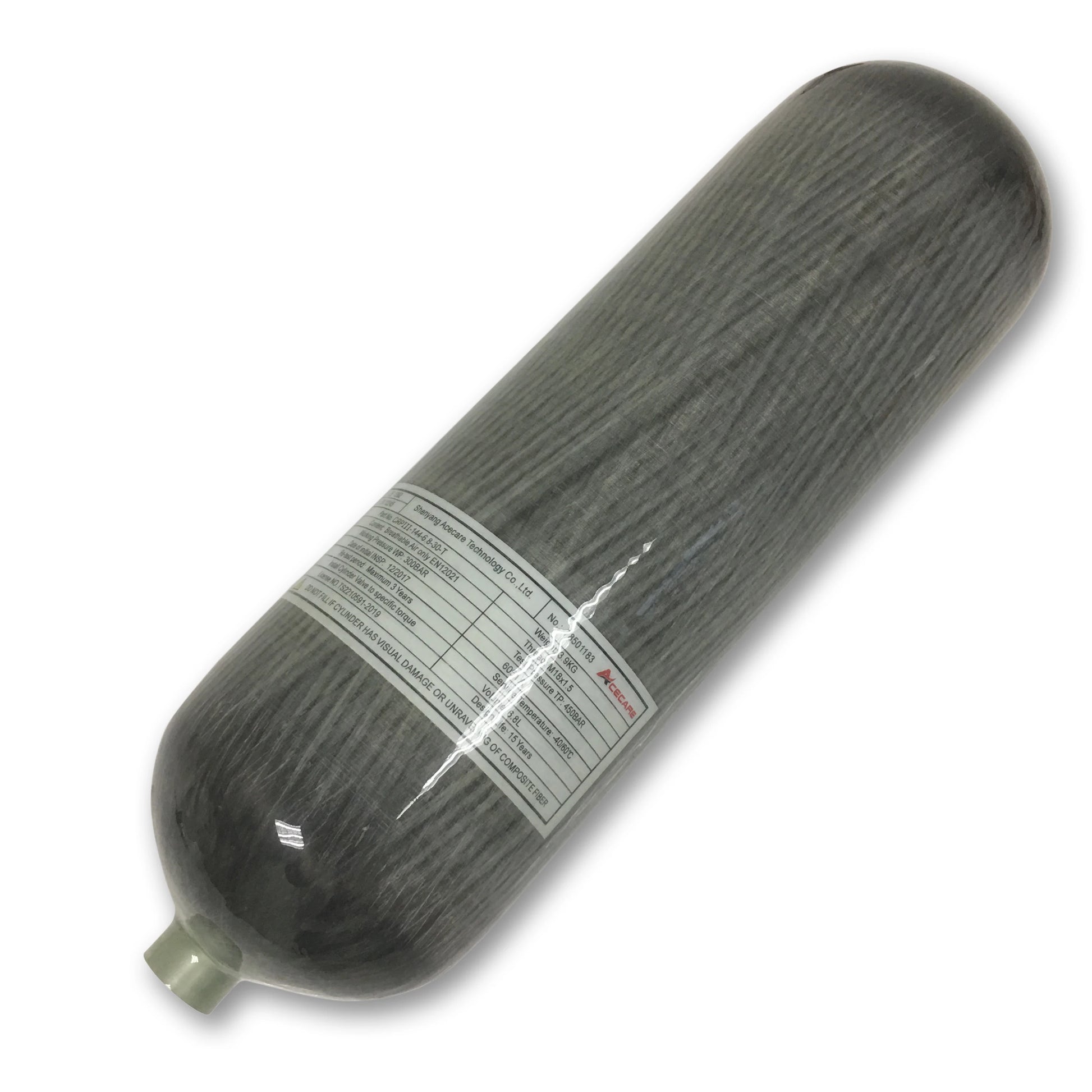

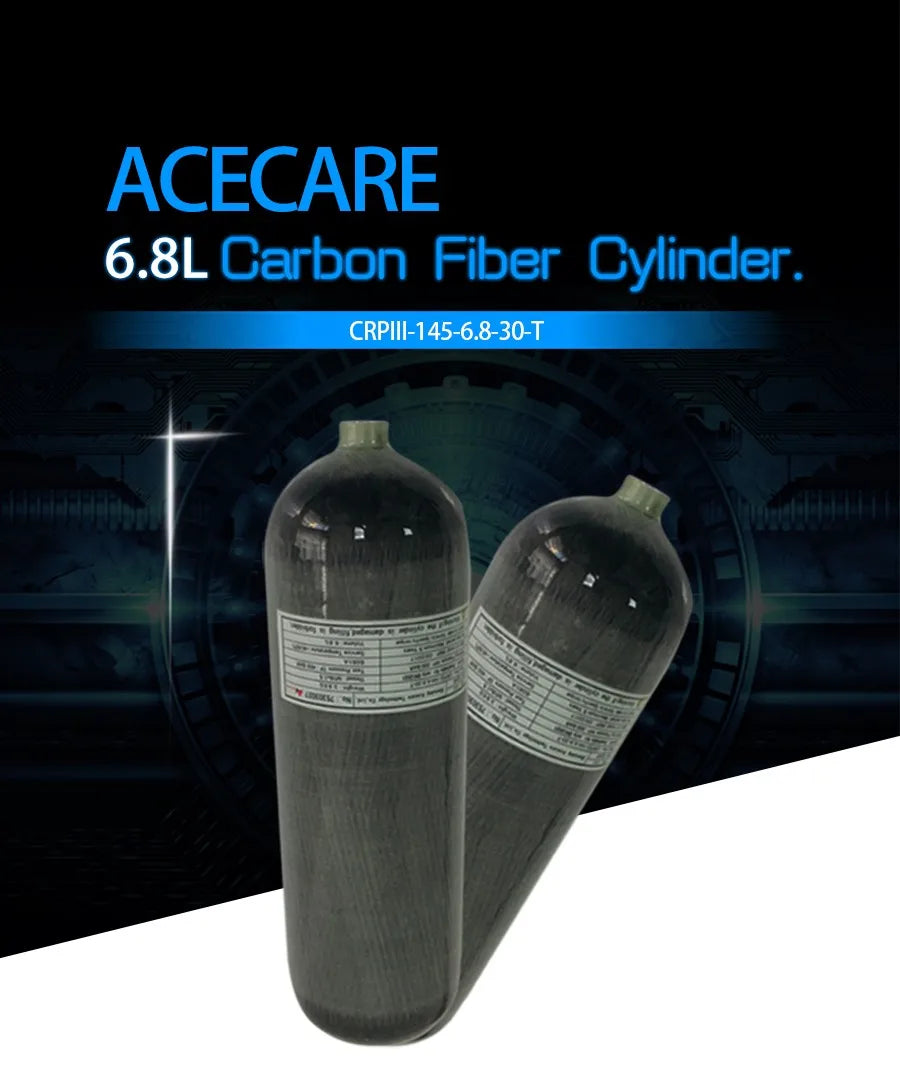

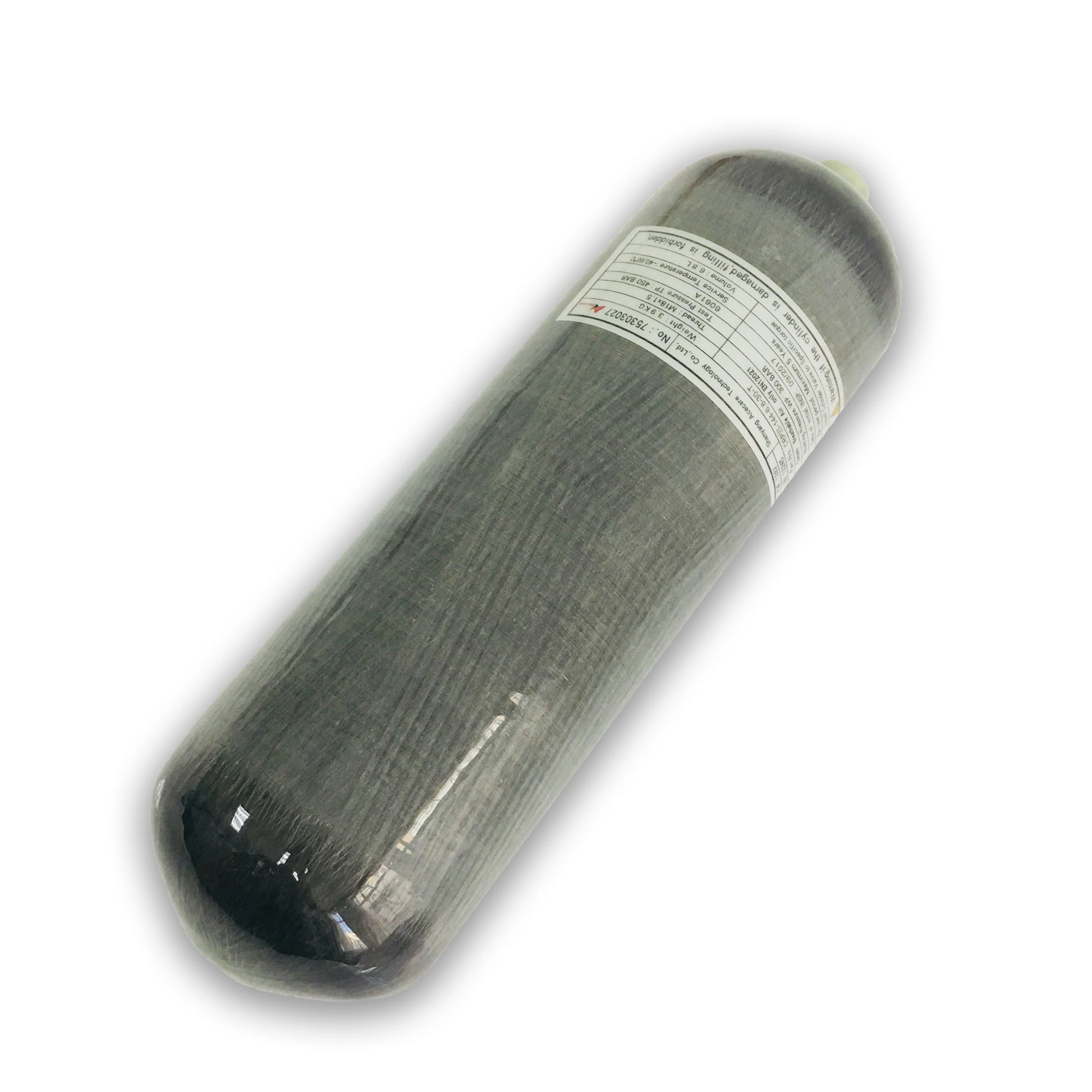

Acecare 6.8L SCUBA Tank 4500psi Carbon Fiber Tank for Divng From China
Acecare 6.8L SCUBA Tank 4500psi Carbon Fiber Tank for Divng From China
Couldn't load pickup availability
Description
Description

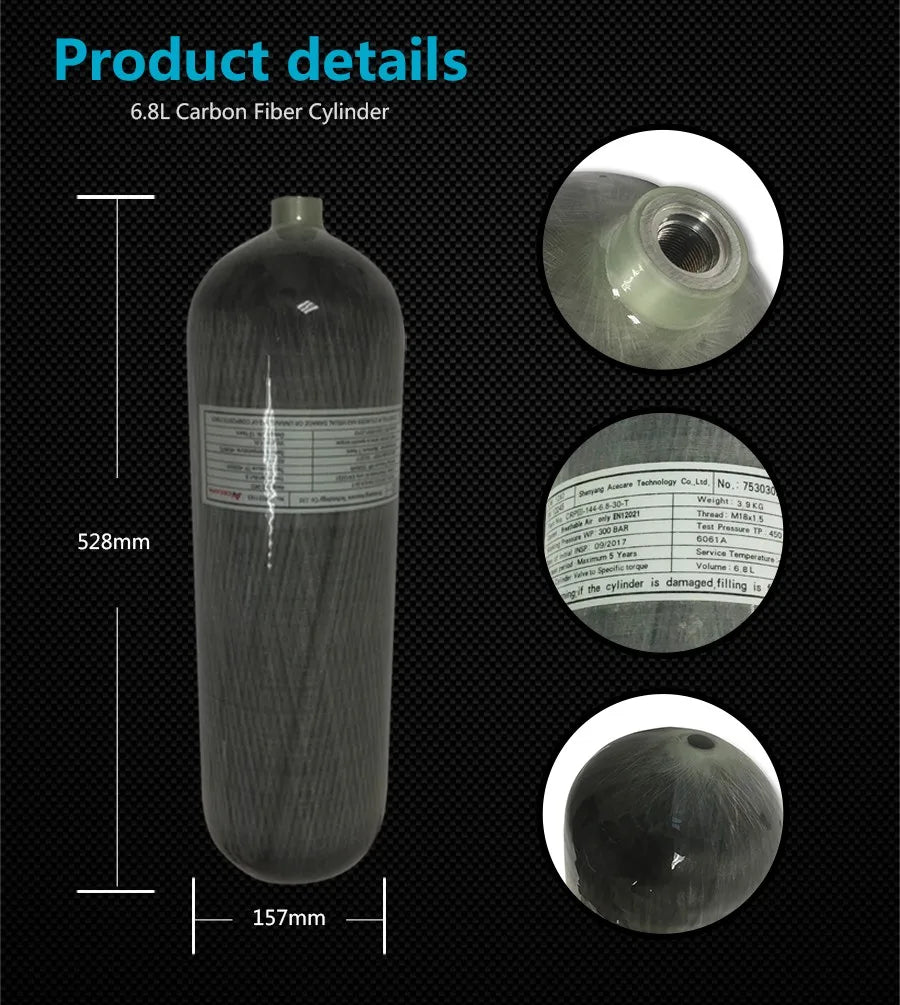

SPECIFICATIONS
Brand Name: Acecare Tech
Certification: CE
Color: Grey

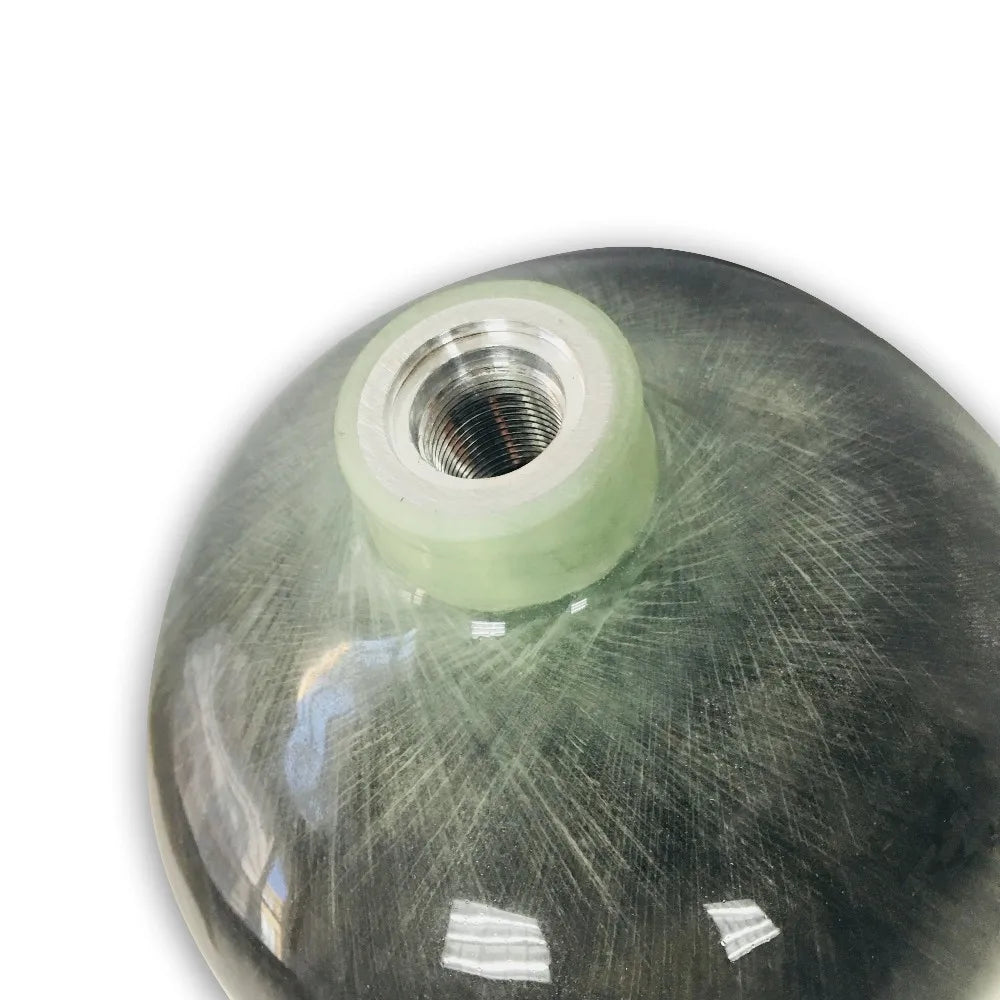

Cylinder Thread: M18*1.5
Diameter: 157mm
Empty Weight: 3.9kg
Length: 533mm
Model Number: CRPIII-145-6.8-30-T
Package: Carton
Place of Origin: Liaoning, China
Pressure: High
Test Pressure: 45Mpa
Use: compressed air
Water Capacity: 6.8L
Working Pressure: 30Mpa/300bar/4500psi




Acecare Tech produces portable gas cylinders through advanced technology. Compared with conventional respirators, we use aluminium or aluminium composite cylinders instead of steel ones, with weight reduction of 40%-70%, so they are more preferable for people with breathing problems.
Gas cylinder introduction:
Gas cylinder liners are made of high quality 6061 aluminium alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency.
1. 15-year lifetime warranty;
2. 5-year requalification period; 15-year life;
3. Smooth, high quality, easy-care exterior finish.
Carbon Fiber Composite Cylinder lined with
Aluminium Alloy
|
||||||||||||||
Standard |
Part
No.
|
Thread size |
Water
Capacity
(liters)
|
Empty
Weight
(kg)
|
Diameter
(mm)
|
Length
(mm)
|
Working
Pressure
(Mpa)
|
|||||||
GB |
CRPIII-55-0.35-30-T |
M18*1.5 |
0.35 |
0.45 |
61 |
235 |
30 |
|||||||

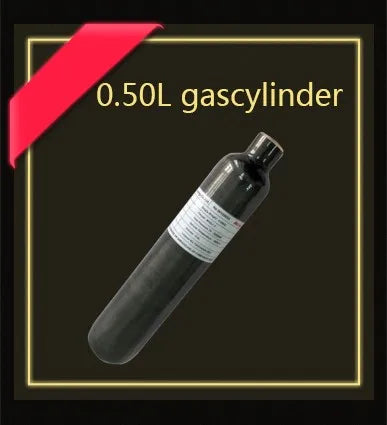

CRPIII-55-0.5-30-T |
M18*1.5 |
0.50 |
0.65 |
61 |
295 |
30 |
||||||||
CRPIII-79-1.1-30-T |
M18*1.5 |
1.10 |
1.10 |
85.5 |
315 |
30 |
||||||||
CRPIII-101-1.5-20-T |
M18*1.5 |
1.50 |
1.0 |
108 |
207 |
20 |
||||||||
CRPIII-105-1.6-20-T |
M18*1.5 |
1.60 |
1.20 |
112 |
268 |
20 |
||||||||

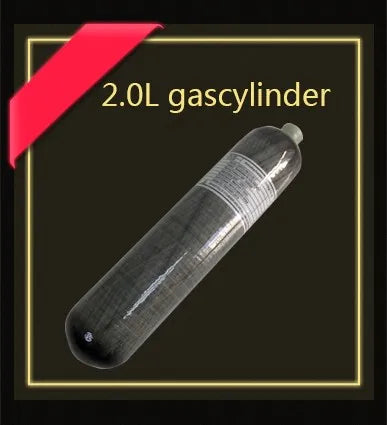

CRPIII-88-2.0-30-T |
M18*1.5 |
2.0 |
1.50 |
96 |
433 |
30 |
||||||||
CRPIII-120-2.17-30-T |
M18*1.5 |
2.17 |
1.5 |
112 |
380 |
30 |
||||||||
CRP-III-120-2.4-20-T |
M18*1.5 |
2.40 |
1.70 |
128 |
307 |
20 |
||||||||
CRPIII-120-2.5-20-T |
M18*1.5 |
2.50 |
1.80 |
128 |
312 |
20 |
||||||||
CRPIII-125-2.7-20-T |
M18*1.5 |
2.70 |
1.90 |
133 |
308 |
20 |
||||||||
CRPIII-125-4.7-30-T |
M18*1.5 |
4.70 |
3.0 |
137 |
492 |
30 |
||||||||

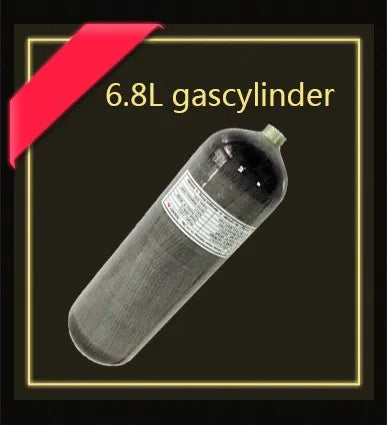

CRPIII-145-6.8-30-T |
M18*1.5 |
6.80 |
4.10 |
157 |
528 |
30 |
||||||||

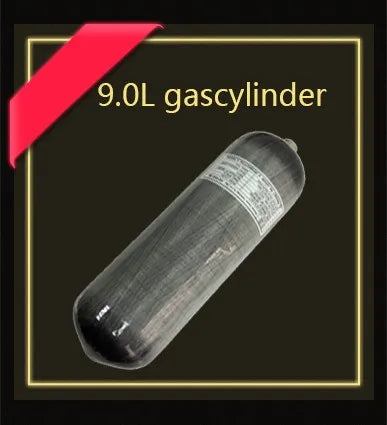

CRPIII-161-9.0-30-T |
M18*1.5 |
9.0 |
5.20 |
174 |
560 |
30 |
||||||||
CRPIII-192-12-30-T |
M18*1.5 |
12.0 |
6.80 |
208 |
575 |
30 |
||||||||
CRPIII-220-20-30-T |
M18*1.5 |
20.0 |
12.0 |
222 |
770 |
30 |
||||||||
CE |

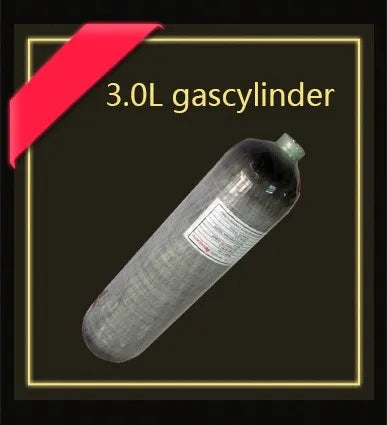

CRPIII-105-3.0-30-T |
M18*1.5 |
3.0 |
2.10 |
114 |
446 |
30 |
|||||||
CRPIII-144-6.8-30-T |
M18*1.5 |
6.80 |
3.90 |
157 |
530 |
30 |
||||||||
CRPIII-162-9.0-30-T |
M18*1.5 |
9.0 |
5.30 |
175 |
560 |
30 |
||||||||
DOT |
TC 6.8L-30MPA |
ISO M18*1.5 |
6.8 |
3.90 |
157 |
/
|
30 |
|||||||
TC 4.7L-31MPA |
0.875-14UNF-2B |
4.7 |
2.90 |
140.4 |
31 |
|||||||||
TC 6.8L-31MPA |
0.875-14UNF-2B |
6.8 |
3.90 |
172.5 |
31 |
|||||||||
TC 8.5L-15MPA |
0.750-16UNF-2B |
8.5 |
3.10 |
166.8 |
15 |
|||||||||
TC 9.0L-31MPA |
0.875-14UNF-2B |
9.0 |
4.90 |
174.3 |
31 |
|||||||||
