SPECIFICATIONS

Bore x stroke: 50*43mm

Brand Name: HIDEA

Condition: New,New

Cooling system: Water Cooling

Cylinders: 2

Dimensions (L x W x H) (mm): /

Displacement: 169cc

Engine: 2 STROKE

Engine Position: OUTBOARD

Fuel Type: Gasoline

Gear control: F-N-R

Ignition System: CDI

L*W*H: 793*320*996mm

Max.output: 7.2kw

Model Number: HD9.8F

Place of Origin: Anhui, China

Purpose: for replace/repair

RPM: 4500-5500

Starting system: Manual

Weight: 26kg

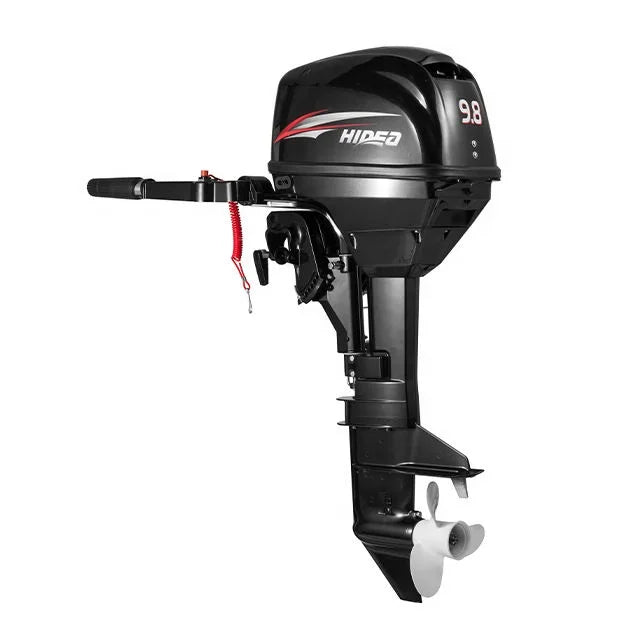

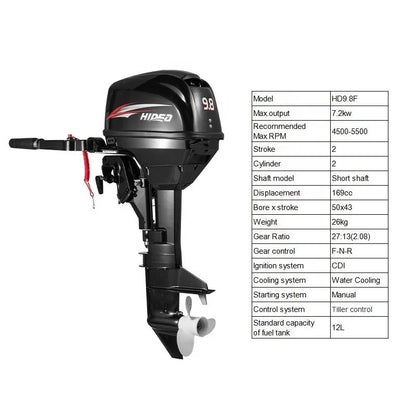

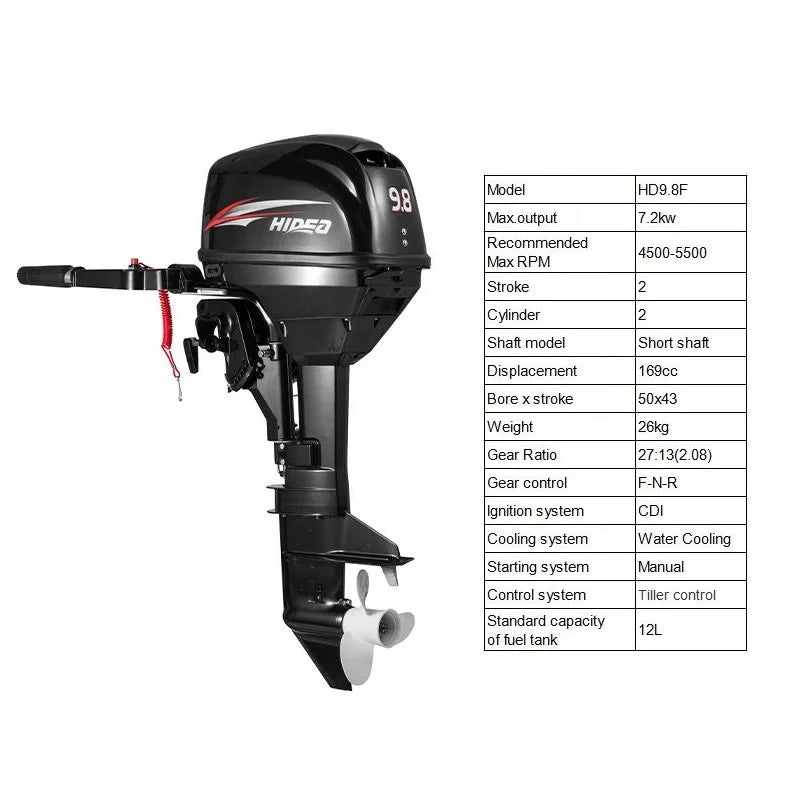

Specification

Model	HD9.8F
Max.output	7.2kw
Recommended Max RPM	4500-5500
Stroke	2
Cylinder	2
Shaft model	Short shaft
Displacement	169cc
Bore x stroke	50x43
Weight	26kg
Gear Ratio	27:13(2.08)
Gear control	F-N-R
Ignition system	CDI
Cooling system	Water Cooling
Starting system	Manual
Control system	Tiller control
Standard capacity of fuel tank	12L
Packing size	122*68*41cm

Product Description

Advantages:

1. Adopt water cooling technology, improves the reliability of the whole machine.
2. 360-degree steering rotation function, you can reverse the car without shifting.
3. Easy to use and operate, resistant and durable, more reliable, energy saving and eco-friendly.
4. Compact size , large Fuels tank, Fuels saving, high horsepower.
5. Superior performance, fast startup , and the motor can be positioned at multiple angles.
6. Perfect match for inflatable boats, fishing boats, sailing boats and small yachts.

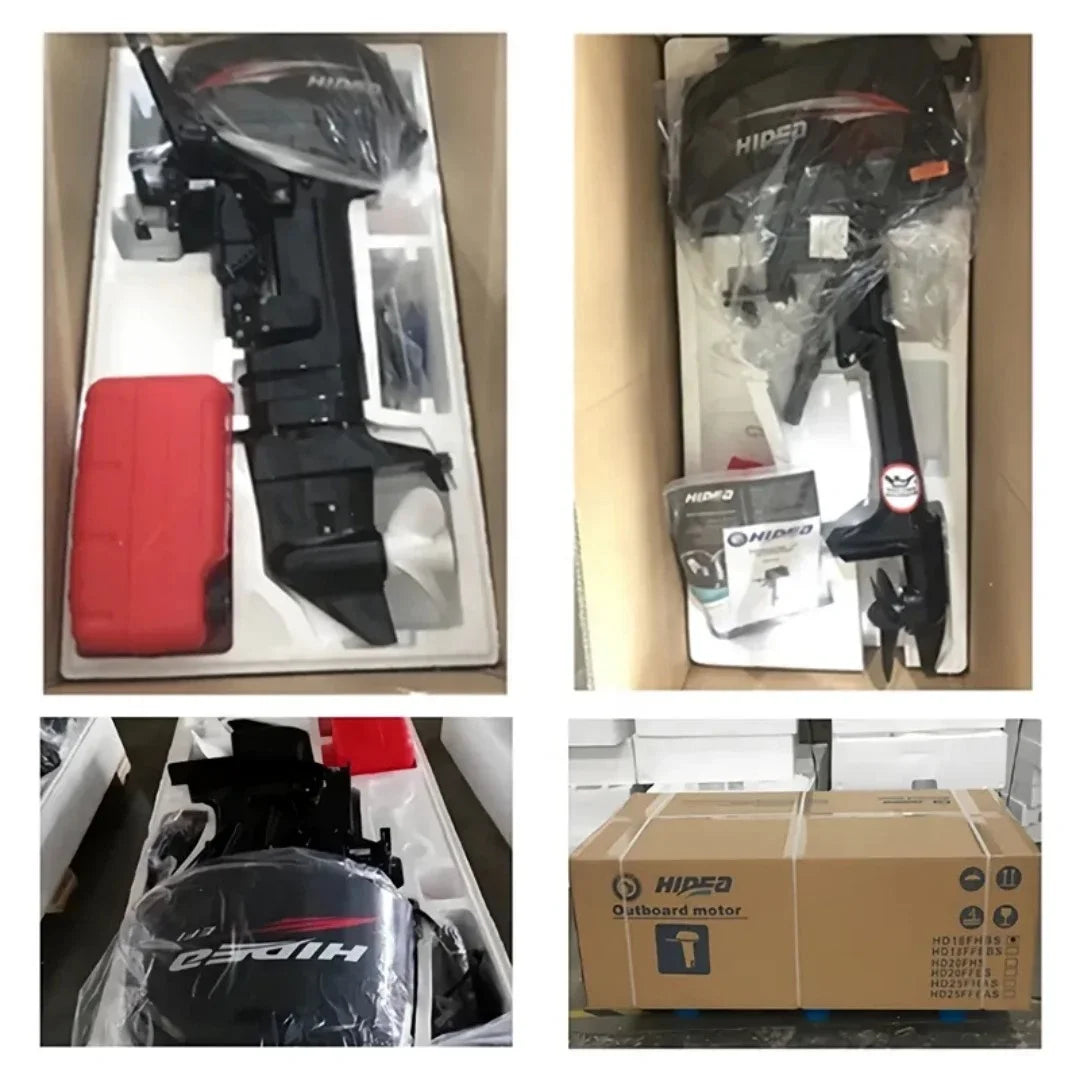

Packing & Delivery

Package List:

1 x Propeller
1 x Funnel
1 x sca-le Pot
1 x Water Impeller
1 x Instruction
1 x Start Rope
1 Pack of Tools
