Difference between short shaft and long shaft of engine:

# Short shaft: the shaft length is 381 mm (15 inches), which is suitable for ships with stern plate height of 44cm and below
# Long shaft: the shaft length is 508mm (20 inches), which is suitable for ships with stern plate height of 45cm-55cm

Notes:

it is strictly forbidden to start the machine on shore. The two-stroke outboard engine should use the mixture of two-stroke engine oil and gasoline.The running in period of the new machine is within 10 hours, and the fuel ratio is 30L gasoline:1l engine oil,After 10 hours, the proportion is 50L: 1L of engine oil. It must be ensured that gasoline and engine oil are fully mixed,Otherwise, the machine will be damaged.

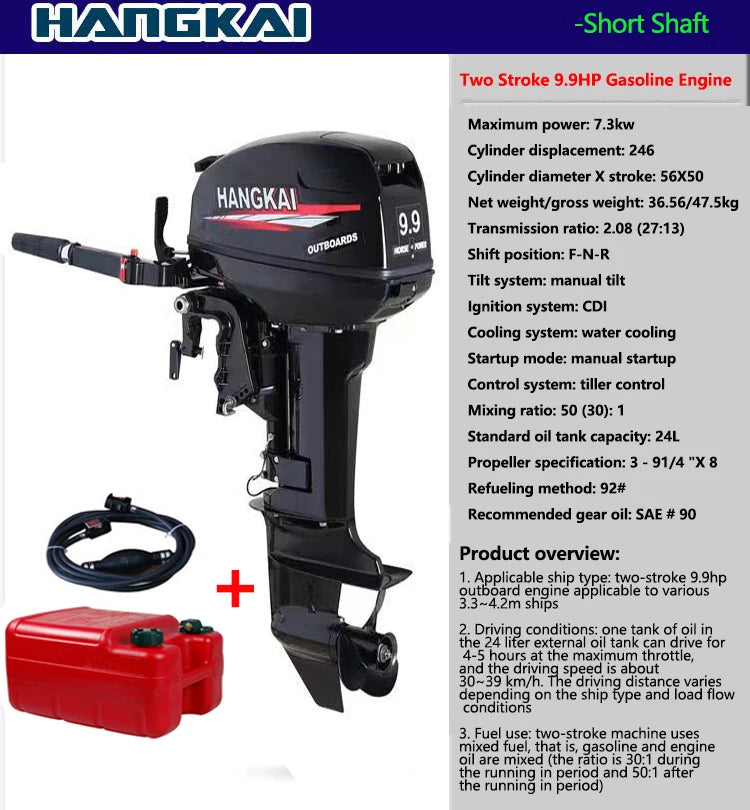

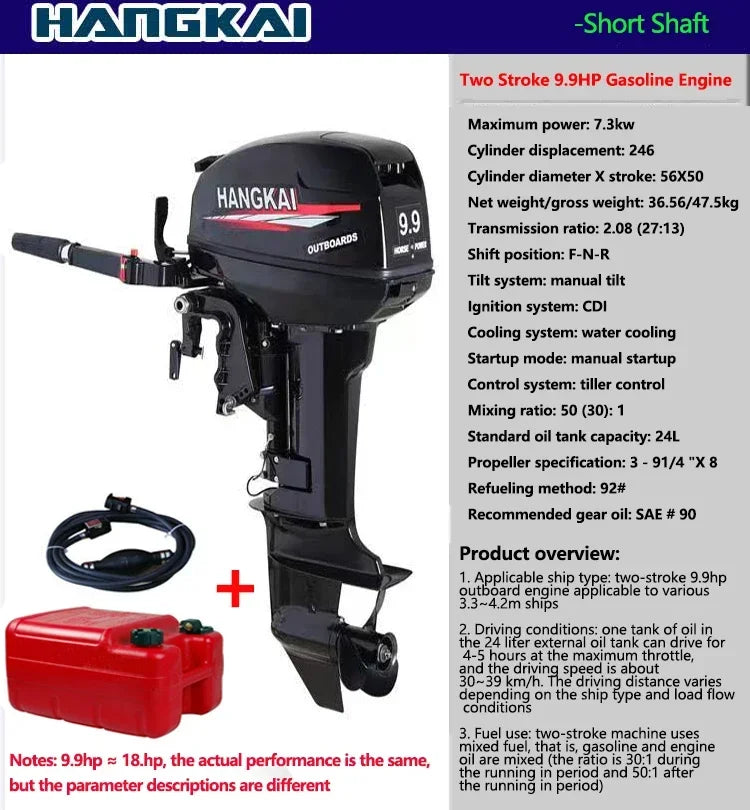

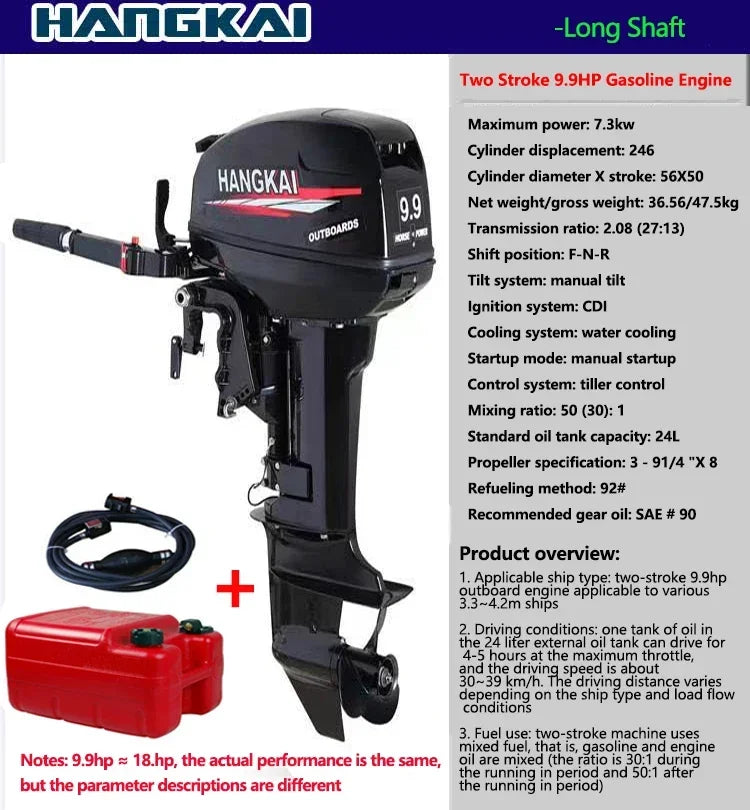

Two stroke 9.9hp gasoline engine

Maximum power: 7.3kw
Cylinder displacement: 246
Cylinder diameter X stroke: 56X50
Net weight/gross weight: 36.56/47.5kg
Transmission ratio: 2.08 (27:13)
Shift position: F-N-R
Tilt system: manual tilt
Ignition system: CDI
Cooling system: water cooling
Startup mode: manual startup
Control system: tiller control
Mixing ratio: 50 (30): 1
Standard oil tank capacity: 24L
Propeller specification: 3 - 91/4 "X 8
Refueling method: 92#
Recommended gear oil: SAE # 90

Product overview:

1. Applicable ship type: two-stroke 9.9hp outboard engine applicable to various 3.3~4.2m ships
2. Driving conditions: one tank of oil in the 24 liter external oil tank can drive for 4-5 hours at the maximum throttle, and the driving speed is about 30~39 km/h. The driving distance varies depending on the ship type and load flow conditions
3. Fuel use: two-stroke machine uses mixed fuel, that is, gasoline and engine oil are mixed (the ratio is 30:1 during the running in period and 50:1 after the running in period)

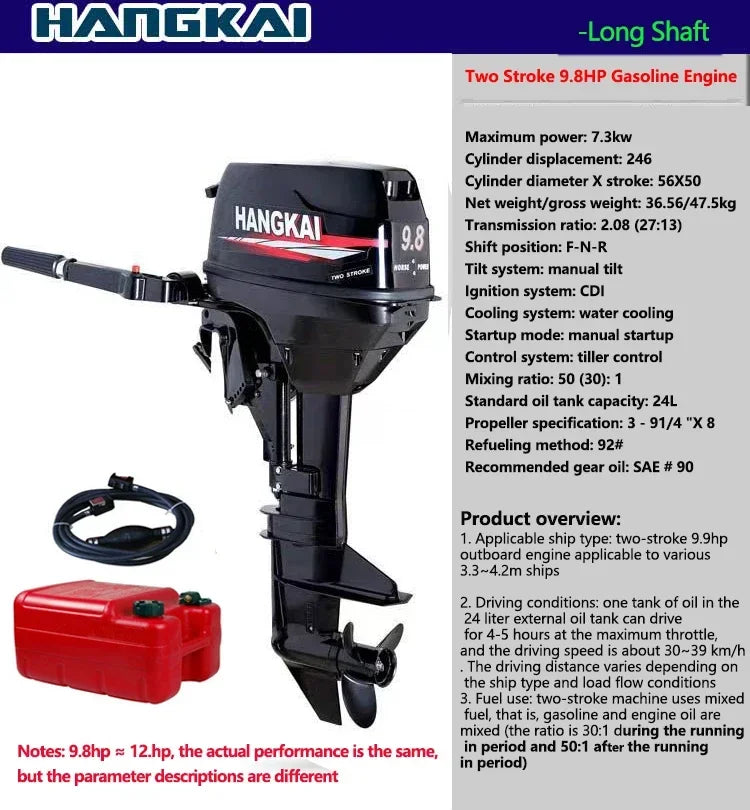

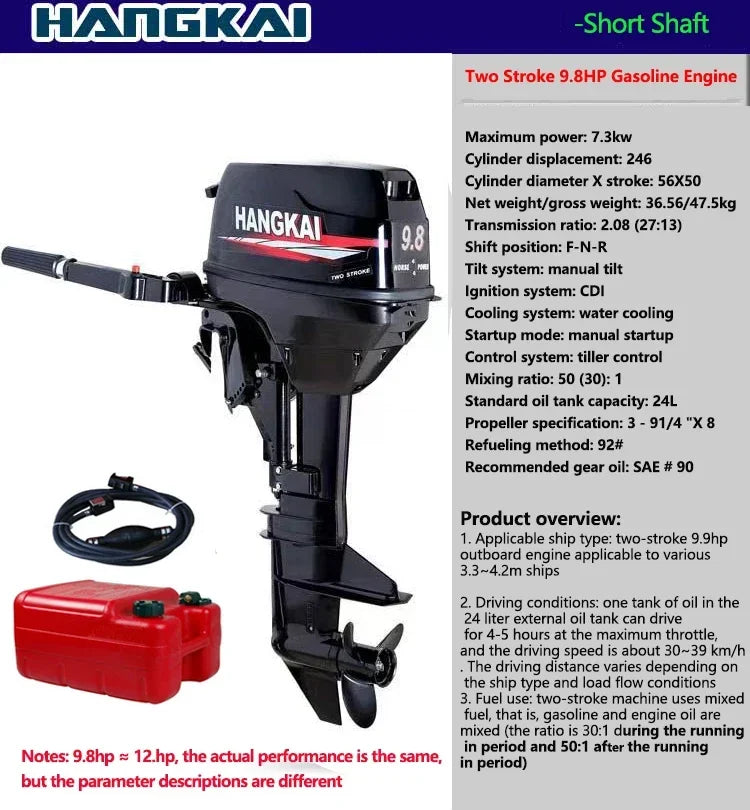

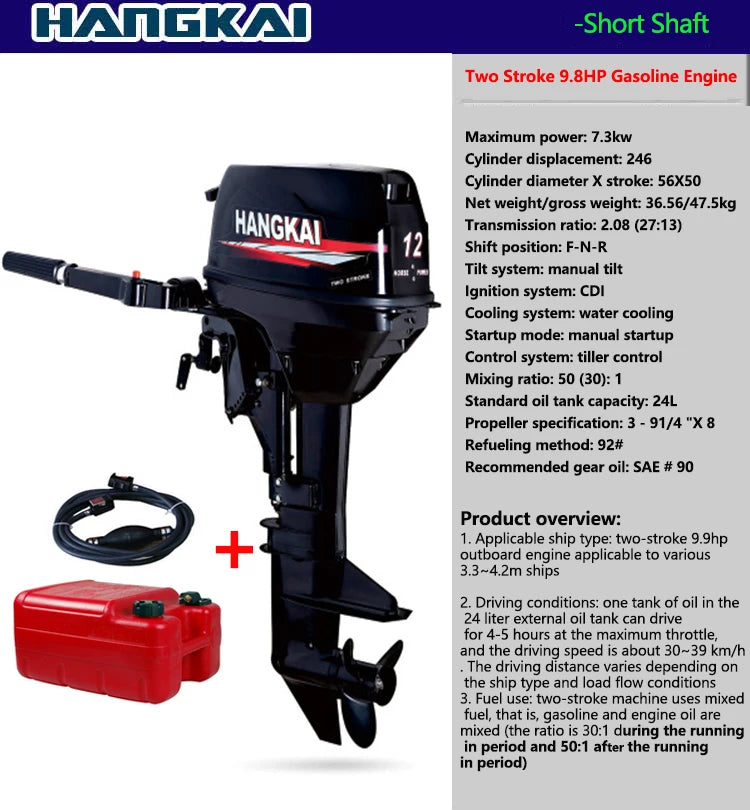

Two Stroke 9.8HP Gasoline Engine

Maximum power: 7.3kw
Cylinder displacement: 246
Cylinder diameter X stroke: 56X50
Net weight/gross weight: 36.56/47.5kg
Transmission ratio: 2.08 (27:13)
Shift position: F-N-R
Tilt system: manual tilt
Ignition system: CDI
Cooling system: water cooling
Startup mode: manual startup
Control system: tiller control
Mixing ratio: 50 (30): 1
Standard oil tank capacity: 24L
Propeller specification: 3 - 91/4 "X 8
Refueling method: 92#
Recommended gear oil: SAE # 90

Product overview:


1. Applicable ship type: two-stroke 9.9hp

outboard engine applicable to various
3.3~4.2m ships

2. Driving conditions: one tank of oil in the
24 liter external oil tank can drive

for 4-5 hours at the maximum throttle,
and the driving speed is about 30~39 km/h
. The driving distance varies depending on
the ship type and load flow conditions
3. Fuel use: two-stroke machine uses mixed

fuel, that is, gasoline and engine oil are
mixed (the ratio is 30:1 during the running

in period and 50:1 after the running
in period)

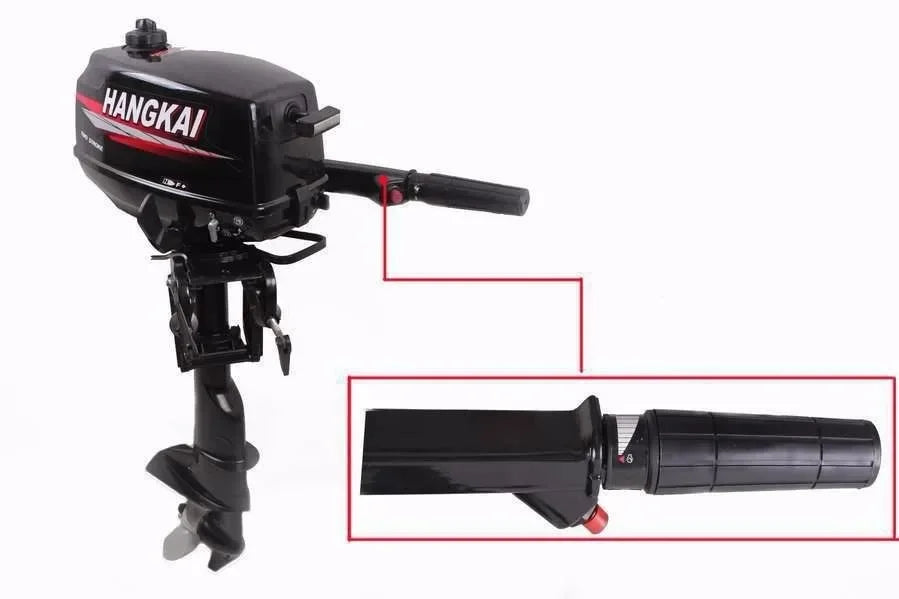

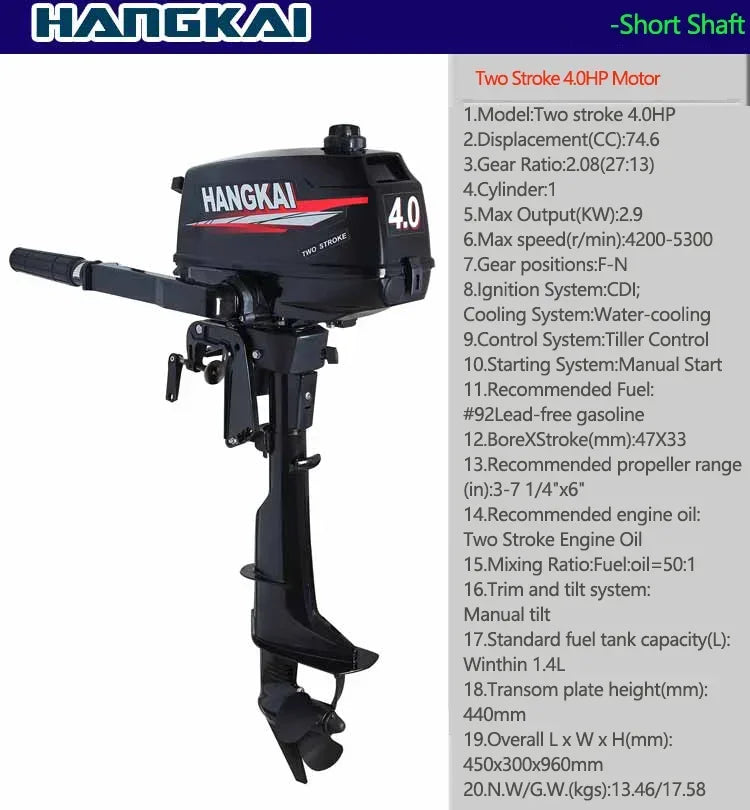

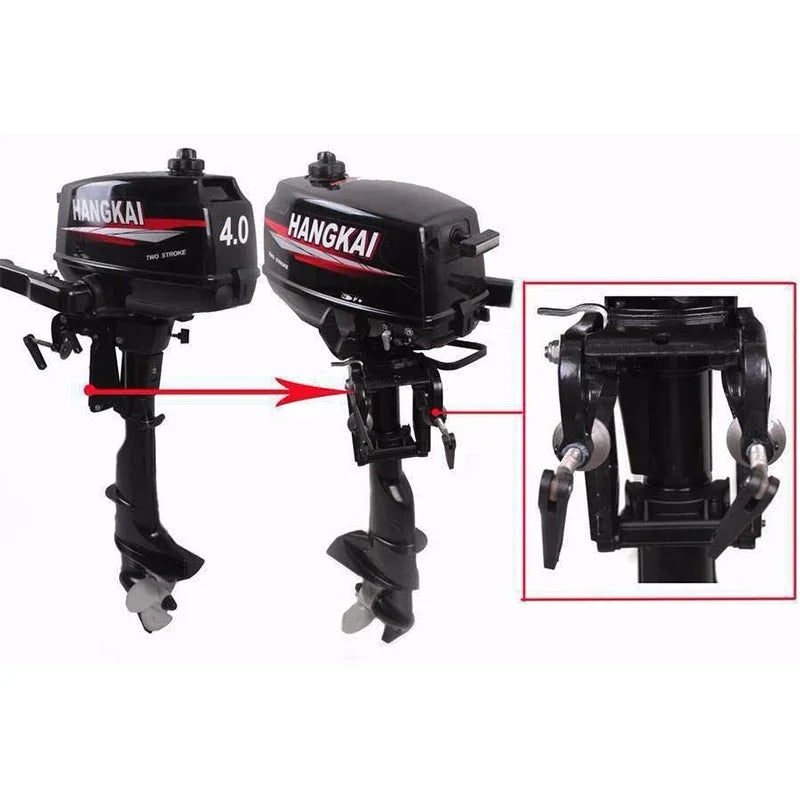

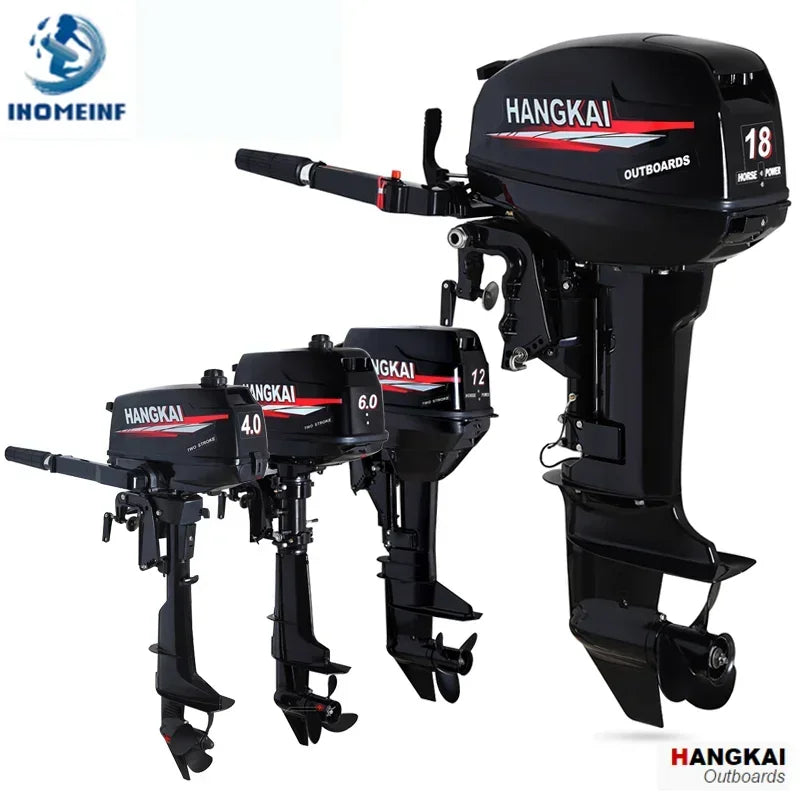

TWO STROKE 4.0HP TECHNICAL PARAMETER

1.Model:Two stroke 4.0HP
2.Displacement(CC):74.6
3.Gear Ratio:2.08(27:13)
4.Cylinder:1
5.Max Output(KW):2.9
6.Max speed(r/min):4200-5300
7.Gear positions:F-N
8.Ignition System:CDI; Cooling System:Water-cooling
9.Control System:Tiller Control
10.Starting System:Manual Start
11.Recommended Fuel:#92Lead-free gasoline
12.BoreXStroke(mm):47X33
13.Recommended propeller range(in):3-7 1/4"x6"
14.Recommended engine oil:Two Stroke Engine Oil
15.Mixing Ratio:Fuel:oil=50:1
16.Trim and tilt system:Manual tilt
17.Standard fuel tank capacity(L):Winthin 1.4L
18.Transom plate height(mm):440mm
19.Overall L x W x H(mm):450x300x960mm
20.N.W/G.W.(kgs):13.46/17.58

Accessories: 1* English instruction manual, 1* proportioning pot, 1* tool kit, 1* funnel,1 * start the pull rope, 1* water pump impeller, 1* flameout rope.

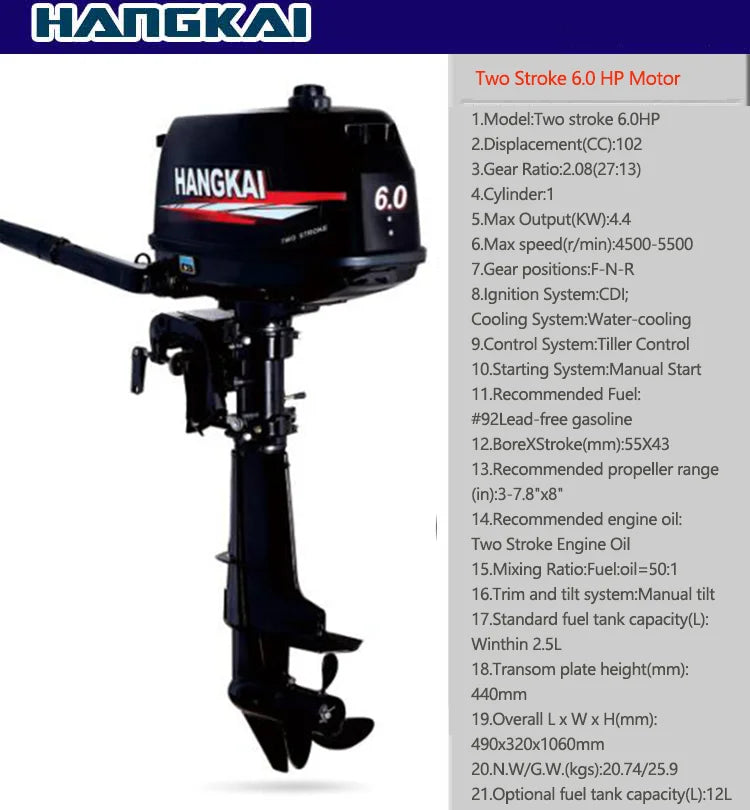

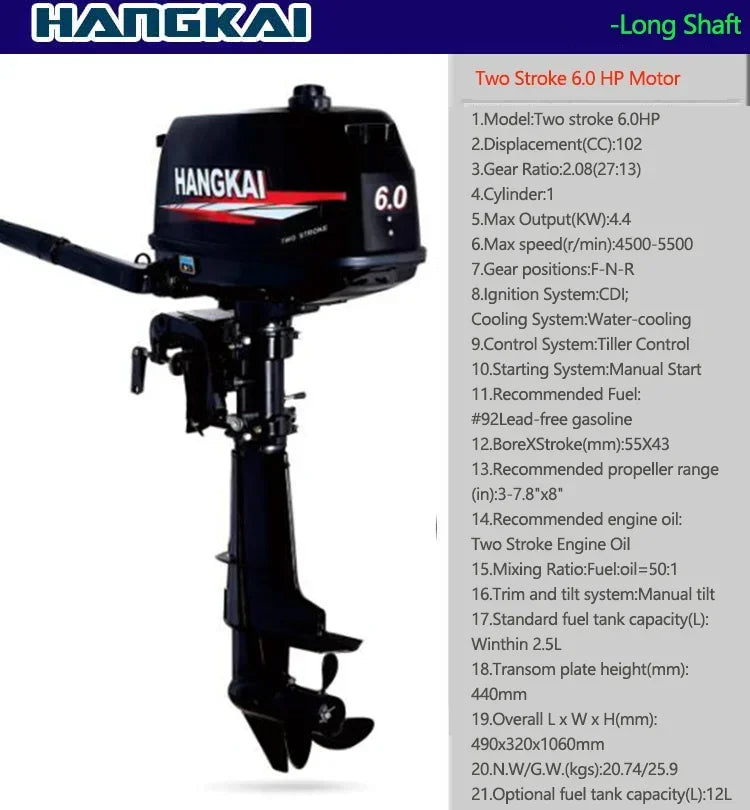

TWO STROKE 6.0HP TECHNICAL PARAMETER

1.Model:Two stroke 6.0HP
2.Displacement(CC):102
3.Gear Ratio:2.08(27:13)
4.Cylinder:1
5.Max Output(KW):4.4
6.Max speed(r/min):4500-5500
7.Gear positions:F-N-R
8.Ignition System:CDI; Cooling System:Water-cooling
9.Control System:Tiller Control
10.Starting System:Manual Start
11.Recommended Fuel:#92Lead-free gasoline
12.BoreXStroke(mm):55X43
13.Recommended propeller range(in):3-7.8"x8"
14.Recommended engine oil:Two Stroke Engine Oil
15.Mixing Ratio:Fuel:oil=50:1
16.Trim and tilt system:Manual tilt
17.Standard fuel tank capacity(L):Winthin 2.5L
18.Transom plate height(mm):440mm
19.Overall L x W x H(mm):490x320x1060mm
20.N.W/G.W.(kgs):20.74/25.9
21.Optional fuel tank capacity(L):12L

Accessories: 1 * English manual, 1* matching pot, 1* tool kit, 1* funnel, 1* cotter pin,1 * start the pull rope, 1* water pump impeller, 1* flameout rope.

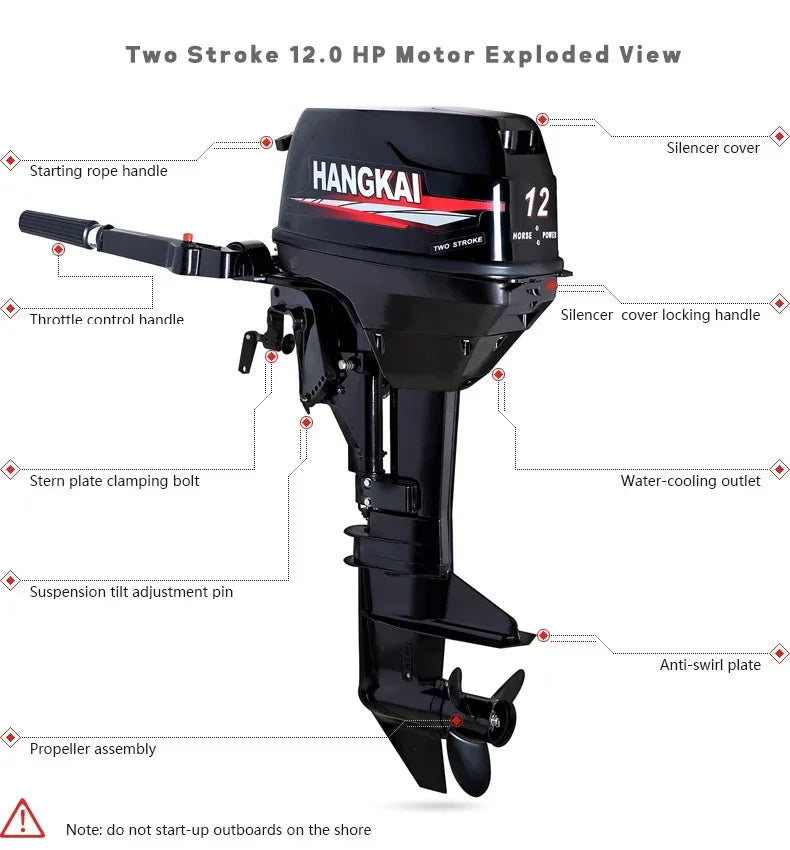

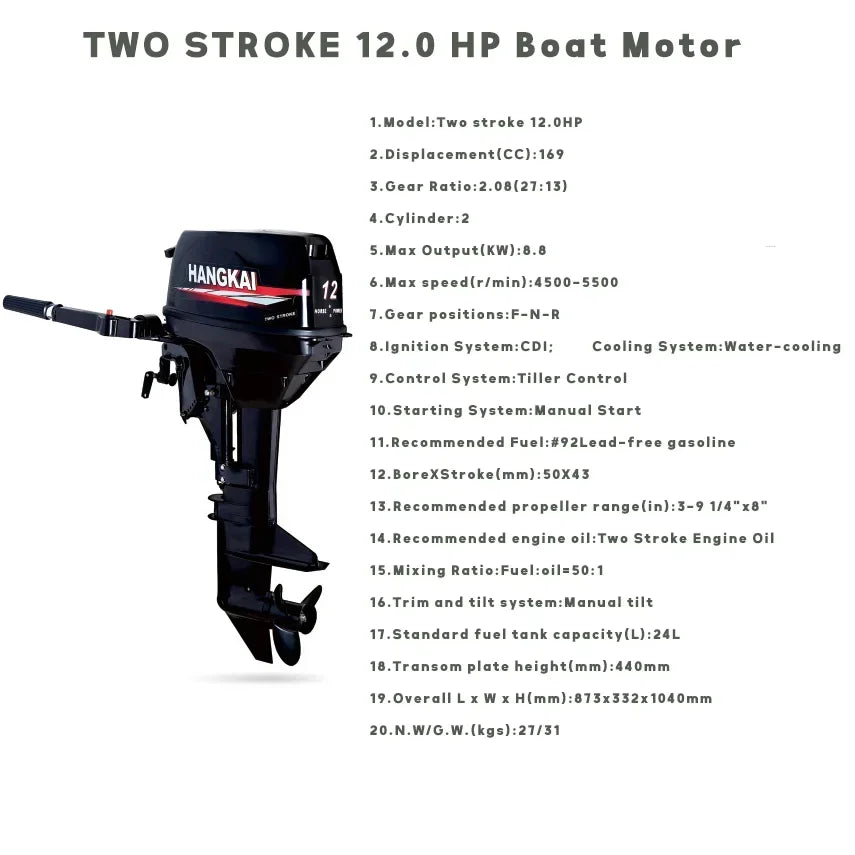

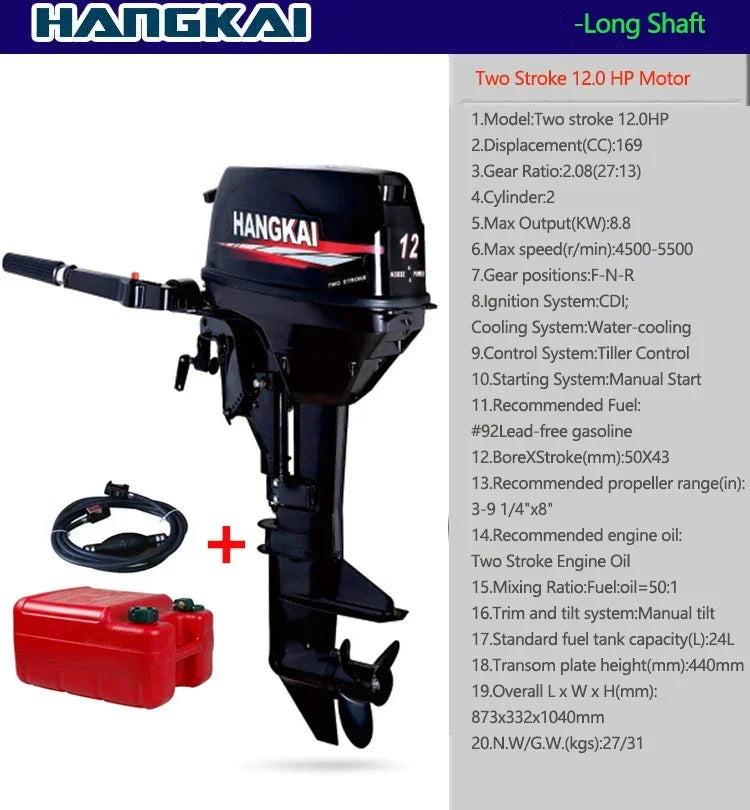

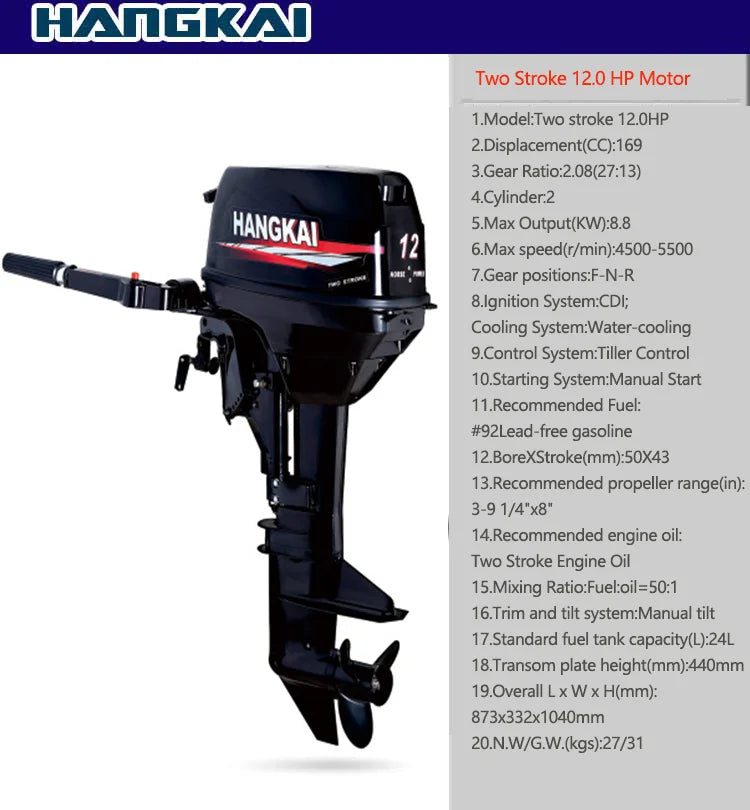

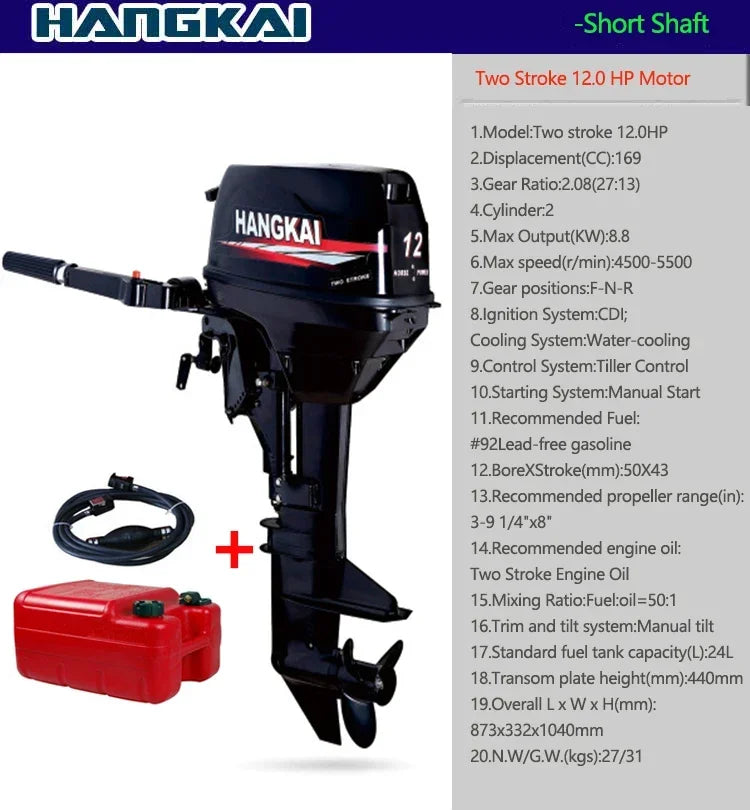

TWO STROKE 12.0HP TECHNICAL PARAMETER

1.Model:Two stroke 12.0HP
2.Displacement(CC):169
3.Gear Ratio:2.08(27:13)
4.Cylinder:2
5.Max Output(KW):8.8
6.Max speed(r/min):4500-5500
7.Gear positions:F-N-R
8.Ignition System:CDI; Cooling System:Water-cooling
9.Control System:Tiller Control
10.Starting System:Manual Start
11.Recommended Fuel:#92Lead-free gasoline
12.BoreXStroke(mm):50X43
13.Recommended propeller range(in):3-9 1/4"x8"
14.Recommended engine oil:Two Stroke Engine Oil
15.Mixing Ratio:Fuel:oil=50:1
16.Trim and tilt system:Manual tilt
17.Standard fuel tank capacity(L):24L
18.Transom plate height(mm):440mm
19.Overall L x W x H(mm):873x332x1040mm
20.N.W/G.W.(kgs):27/31

Accessories: 1 * English instruction manual, 1* flameout rope, 1* oil pipe, 1* tool kit,1* spark plug, 1* paper pad, 1* cotter pin, 1* starting pull rope, 1* water pump impeller, 1* 24 liter oil tank.

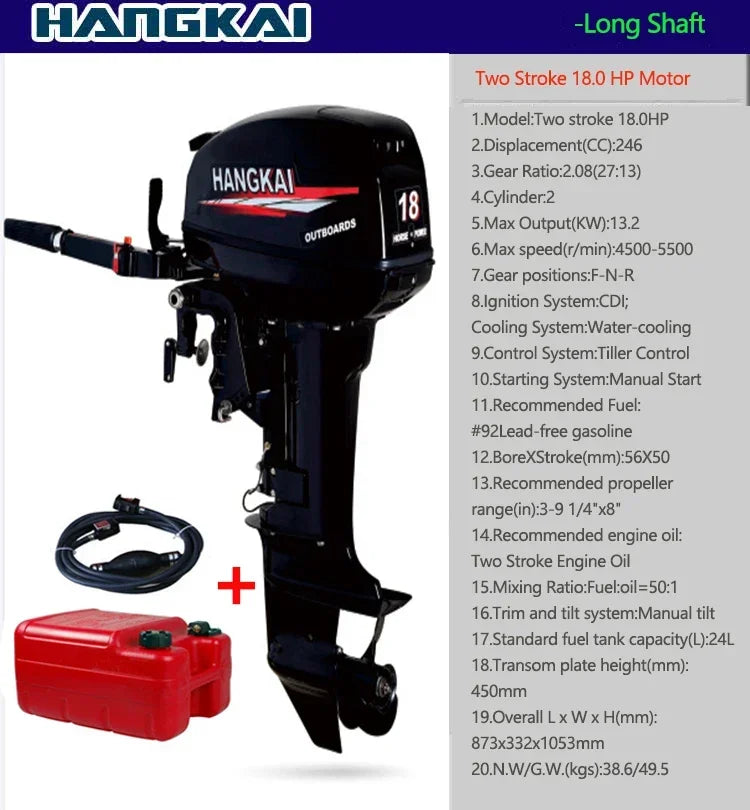

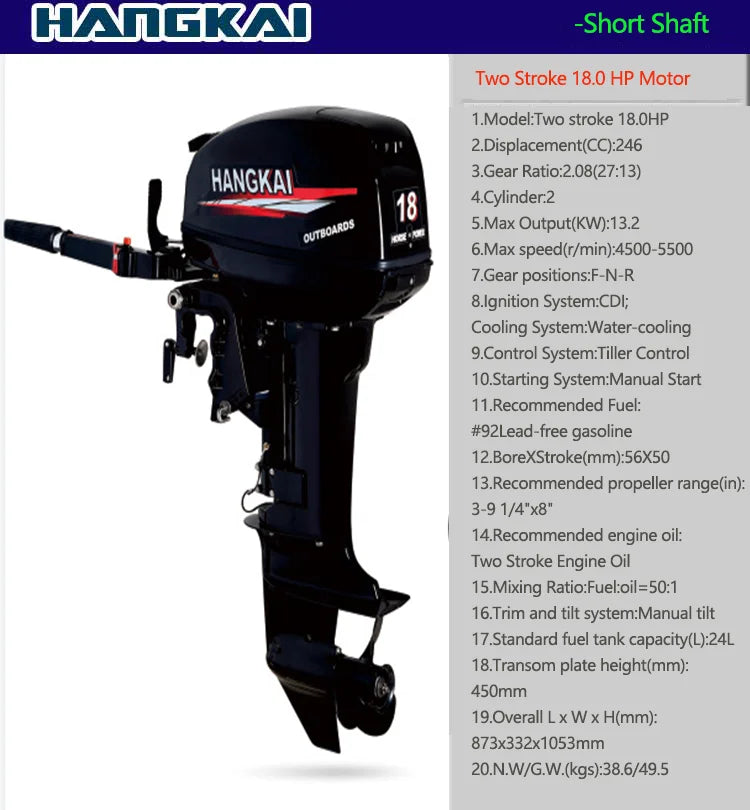

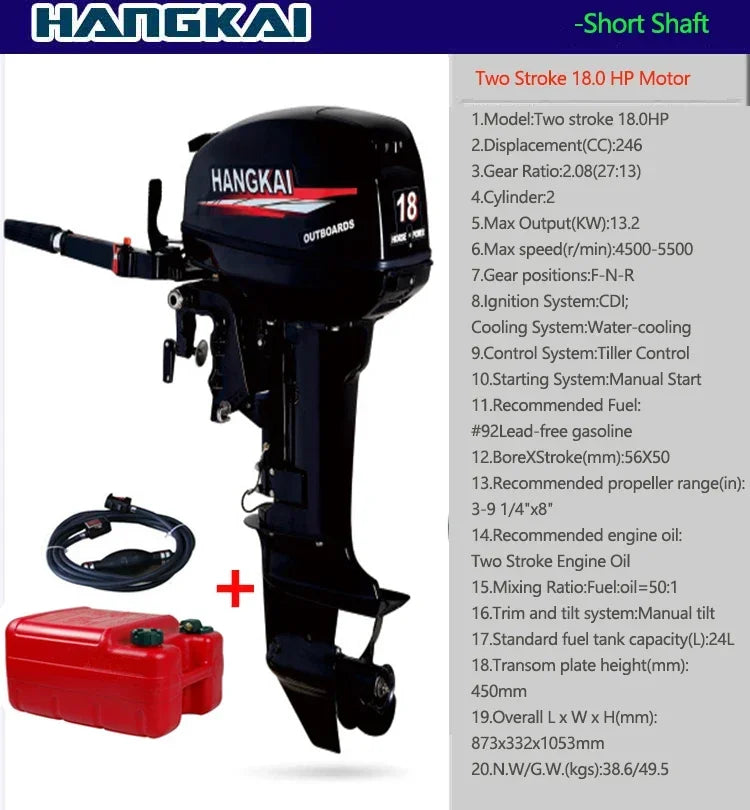

TWO STROKE 18.0HP TECHNICAL PARAMETER

1.Model:Two stroke 18.0HP
2.Displacement(CC):246
3.Gear Ratio:2.08(27:13)
4.Cylinder:2
5.Max Output(KW):13.2
6.Max speed(r/min):4500-5500
7.Gear positions:F-N-R
8.Ignition System:CDI; Cooling System:Water-cooling
9.Control System:Tiller Control
10.Starting System:Manual Start
11.Recommended Fuel:#92Lead-free gasoline
12.BoreXStroke(mm):56X50
13.Recommended propeller range(in):3-9 1/4"x8"
14.Recommended engine oil:Two Stroke Engine Oil
15.Mixing Ratio:Fuel:oil=50:1
16.Trim and tilt system:Manual tilt
17.Standard fuel tank capacity(L):24L
18.Transom plate height(mm):450mm
19.Overall L x W x H(mm):873x332x1053mm
20.N.W/G.W.(kgs):38.6/49.5

Accessories: 1 * English instruction manual, 1* flameout rope, 1* oil pipe, 1* sealing ring, 1* tool kit,1* spark plug, 1* paper pad, 1* cotter pin, 1* starting pull rope, 1* water pump impeller, 1* 24 liter oil tank.
