Product Overview
SPECIFICATIONS
Brand Name: NONE
Cell size: 182mm*48mm
Color: Black
Connector Accessories: XT60 Female to Anderson/GX16/GX20/MC4
Folded Size: 610*600*50mm
High-concerned chemical: None
Imp: 11.4A
Isc: 11.8A
Max. Power: 400W
Model Number: JXY-FR400B
Number of Cells: 6*33
Origin: Mainland China
Output Cables: 1M, 4.0mm² Photovoltaic Cable + XT60 Male Connector
Panel Dimensions: 2090*1195*15mm
Panel Efficiency: 26%
Place of Origin: Guangdong, China
Solar cell: LONGI HPBC Mono-crystalline Silicon Cell M11POB
Vmp: 36.0V
Voc: 45.0V
Weight: 8.1kg
max. power: 400W
Dear customer,my name is Shane Ning Welcome to my store,There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and accurate prices, please add WA for confirmation Manager: Shane WhatsApp:+86 18627604199 Email：Qianruiyan8@gmail.com
Electrical Characteristics
| Item | Value |
|---|---|
| Model | JXY-FR400B |
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 36.0V |
| Open-circuit Voltage (Voc) | 45.0V |
| Maximum Power Current (Imp) | 11.1A |
| Short-circuit Current (Isc) | 11.8A |
| Cells Efficiency | 26% |
| Operating Temperature | -40℃ ~ 85℃ |
| Nominal Module Operating Temperature (NOMT) | 41±2℃ |
| Temperature Coefficient of Pmax | -0.32% / ℃ |
| Temperature Coefficient of Voc | -0.26% / ℃ |
| Temperature Coefficient of Isc | +0.046% / ℃ |
| STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5. Tolerances of Pmax, Voc and Isc are within ±5% |
|
Mechanical Characteristics
| Item | Value |
|---|---|
| Solar Cell | LONGI HPBC Mono-crystalline Silicon Cell M11POB (182mm×48mm) |
| Number of Cells | 198 (6×33) |
| Extending Size | 2090 × 1195 × 15 mm |

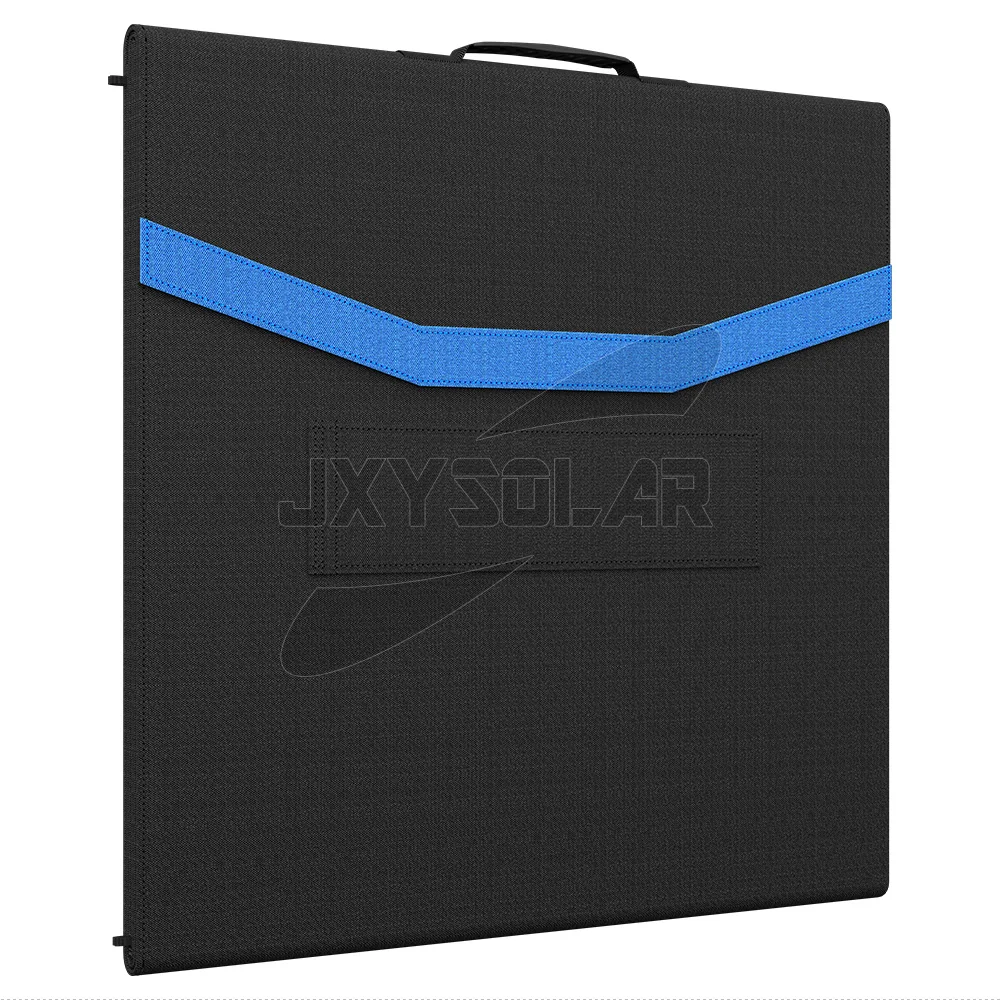

| Folding Size | 610 × 600 × 50 mm |
| Weight | 8.1 kg |
| Output Cables | 1.0M, 4.0mm² Photovoltaic Cable + XT60 Male Connector |
| Connector Accessories | XT60 Female to Anderson/GX16/GX20/MC4 |
