Product Overview
SPECIFICATIONS
Application: Fishboat
Brand Name: YAHATSU
Color: YAMAHA Gray Color
Condition: New,New
Control System: Tiller Control
Cylinders: 2
Displacement: 362 Cc
Engine: 4 Stroke,4 STROKE
Engine Position: OUTBOARD
Engine type: 1 Cylinder Gasoline Engine
Fuel Type: Gasoline,Gaoline

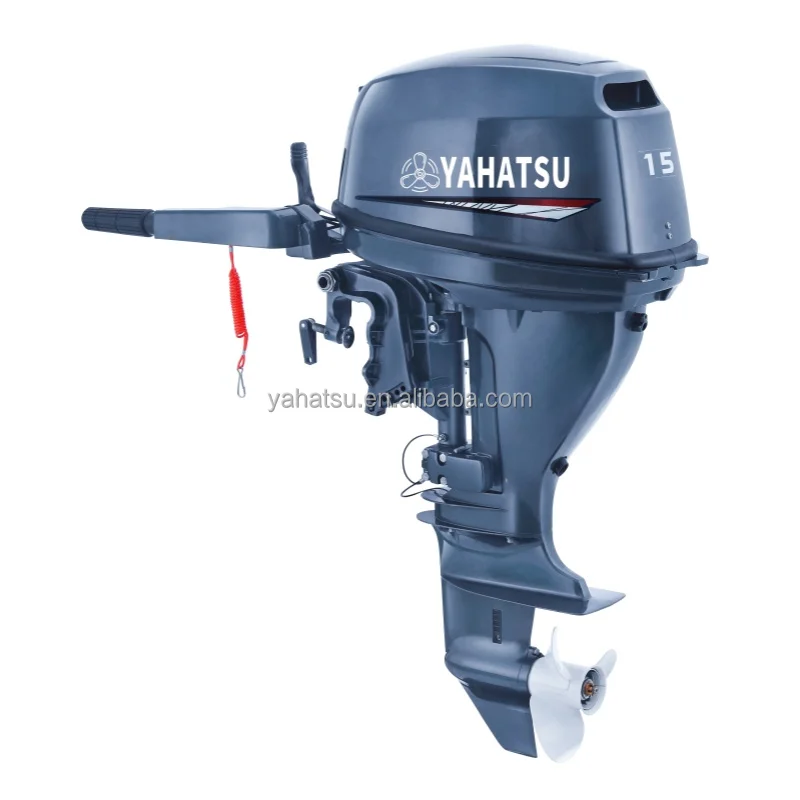

Model Number: F15S/L
Place of Origin: Zhejiang, China
Product Name: Gasoline Outboard Engine Boat Motor
Purpose: for manufacturing
Starting system: Manual
Warranty: 1 Year

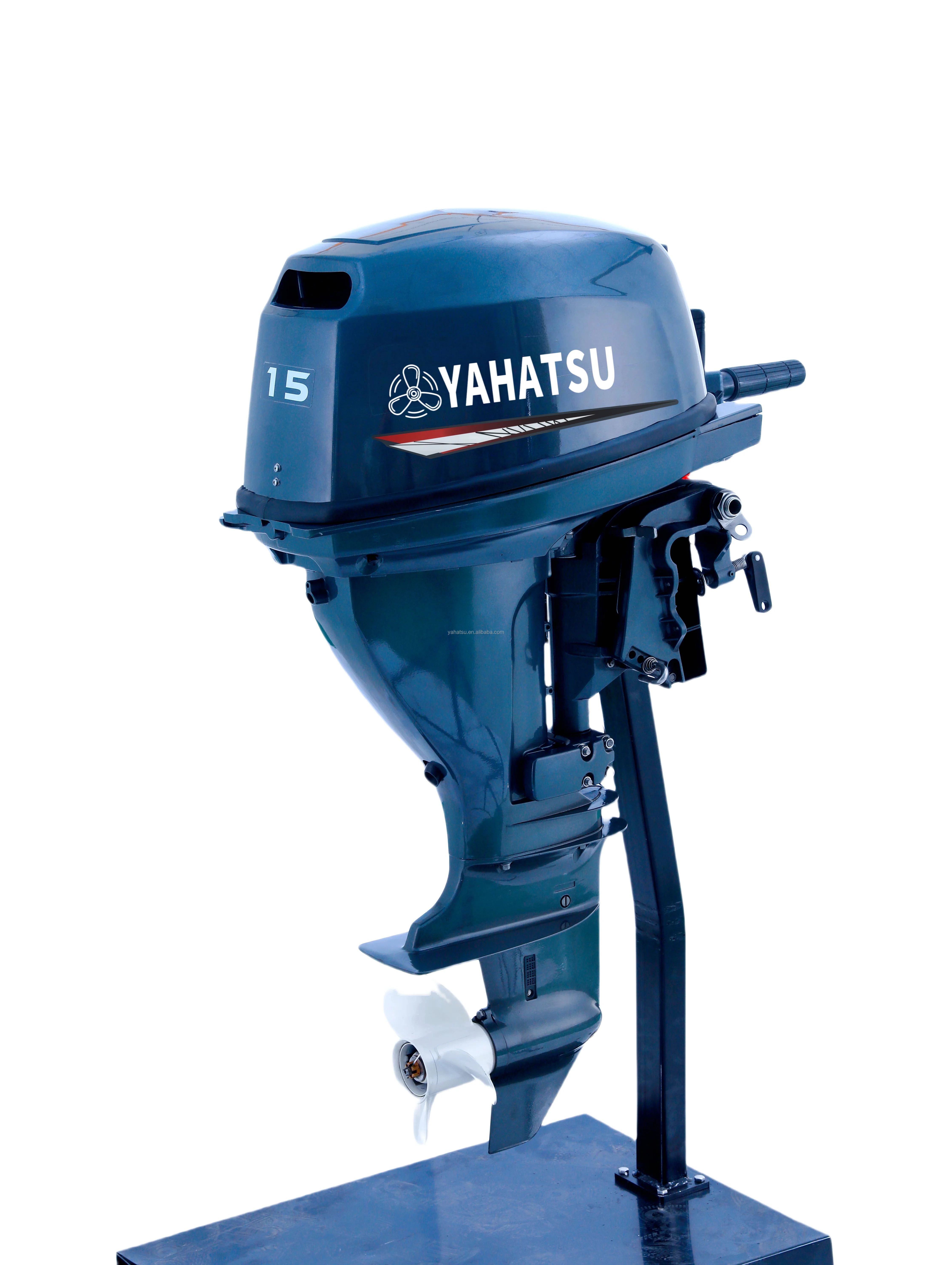

| Characteristics | F15 | F9.8 |
| Motor type | 2 Cylinder | 2 Cylinder |
| Displacement | 362cc | 212cc |
| Bore*Stroke | 63*58.1mm | 56*43mm |
| Compression ratio | 9.30 | 9.40 |
| Full throttle speed range | 15HP@5500rpm | 9.8HP@5500rpm |
| Max.rpm Range | 5000-6000 | 5000-6000 |
| Fuel Induction System | SOHC | SOHC |
| Intake | carburetor | carburetor |
| Exhaust | Through Prop pele r | Through Prop pele r |
| Cooling | Water/Thermostatic Control | |
| lgn ii on System | CDI MicroComputer | CDI |
| Alternator output | 12V/10A | 12V/16A |
| Starter | Manual/Electric | Manual |
| Engine Oil Capacity | 1.8L/1.6Lw/without filter | 1.8L/1.6Lw/without fter |
| Gear Ratio | 2.08 | 2.08 |
| GearShift | Forward,Neutral,Reverse | |
| Shaft Length | S=15"L=20" | S=17"L=22" |
| Dry Weight | 53.7kg | 40kg |
| Steering Angle(maximum) | 45 from center, either direction | |
