SPECIFICATIONS

Blade quantity: 3/5

Brake mode: Electromagnetic/Wind wheel partial side

Brand Name: Wonderful-online

Certification: CE/RoHS/ISO

Customized: Yes

Max power: 130W

Model Number: WON-WT-HS100

Output Voltage: 12/24V

Place of Origin: Jiangsu, China

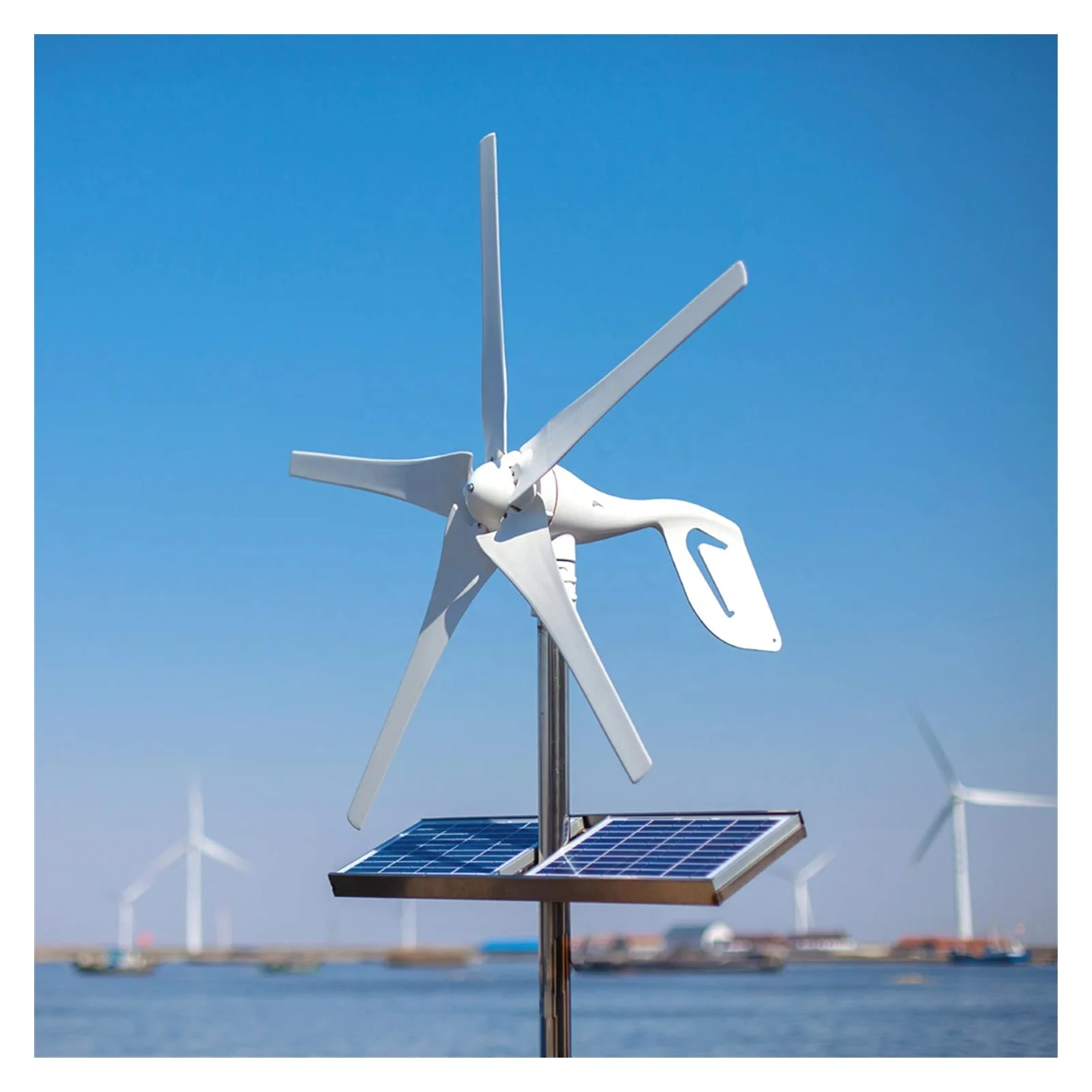

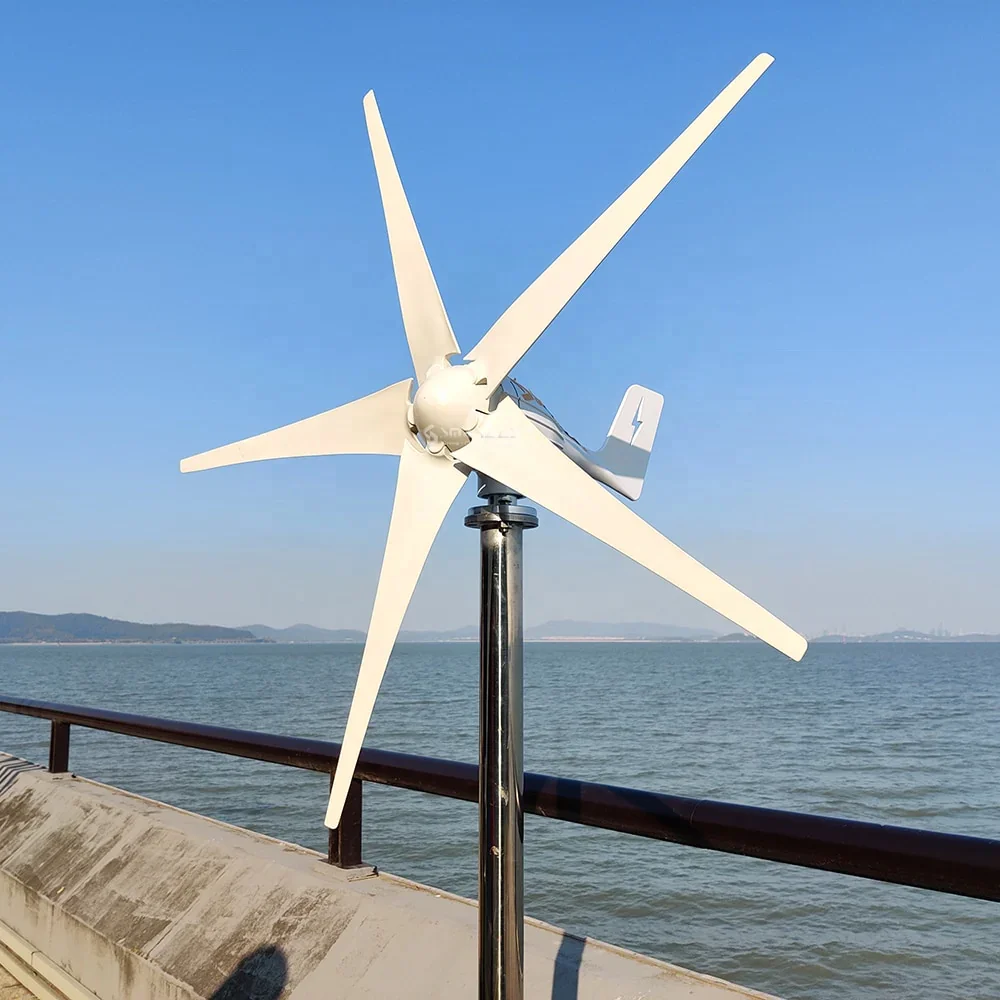

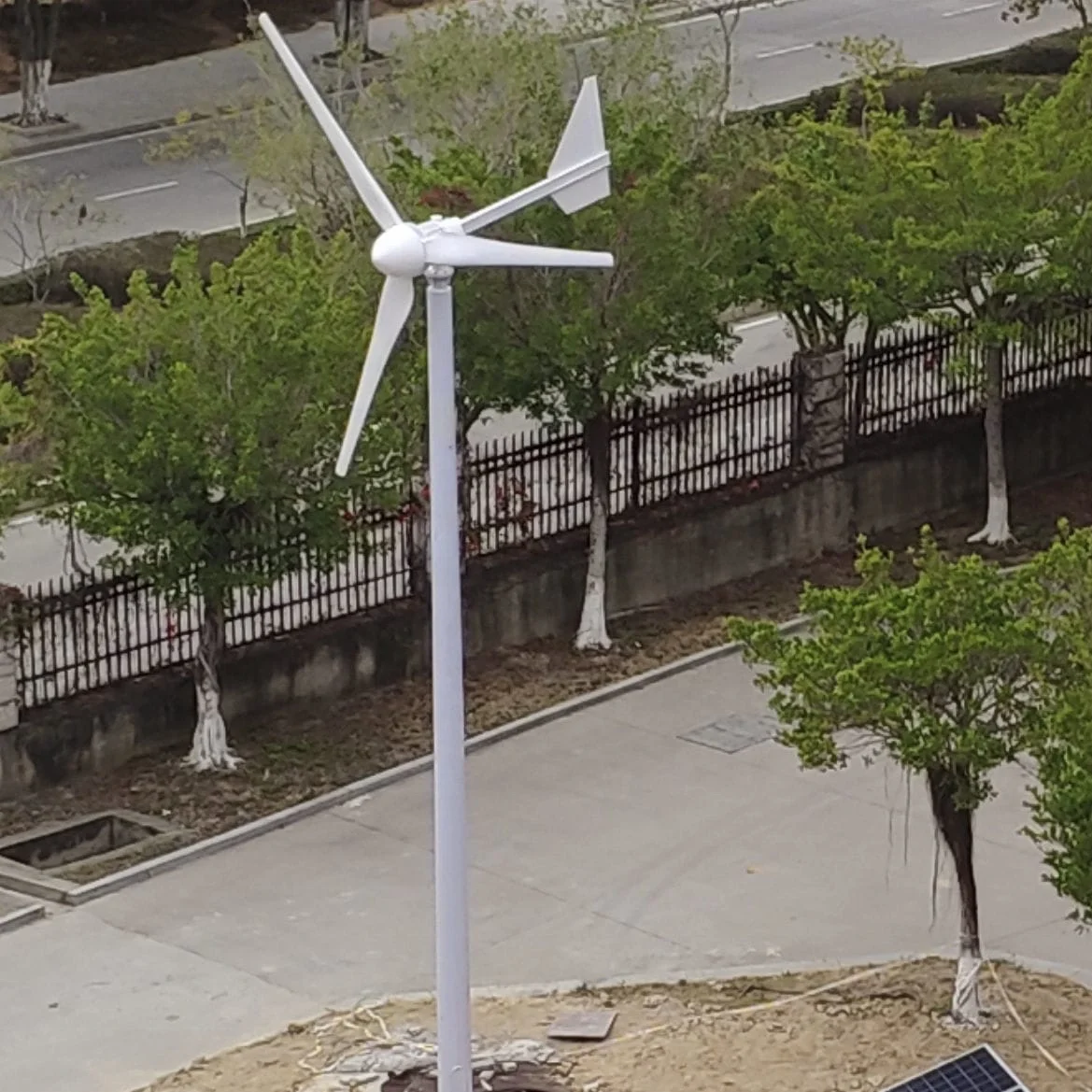

Product name: Horizontal Axis Wind Generator

Rated voltage: 12/24V

Rated wind speed: 10.0m/s

Rotor Diameter: 1.2m

Start wind speed: 2.0m/s

The wind adjustment: Automatically adjust windward direction

Warranty: 2 years

Working temperature: -40°C-80°C

rotor diameter: 1.2m

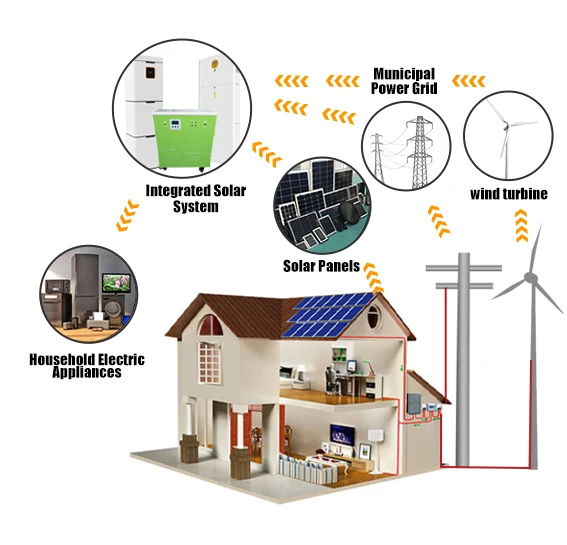

Household solar power

supplysystem

By storing energy during the day and meetingthe needs of household appliances at nightwe can save your electricity costs and saveenergy and environmental protection.

As an emergency backup power source forhouseholds, providing power support in caseof power outages or other emergencysituations

Name/Model	WON-WT-HS100
Rated Power	100W
Max Power	130W
Start-up Wind Speed	2.0m/s
Rated Wind Speed	10.0m/s
Survival Wind Speed	55.0m/s
Rated Voltage	12/24V
Wheel Diameter	1.2m
Top N.W	6.0kg
Gross weight	7.5kg

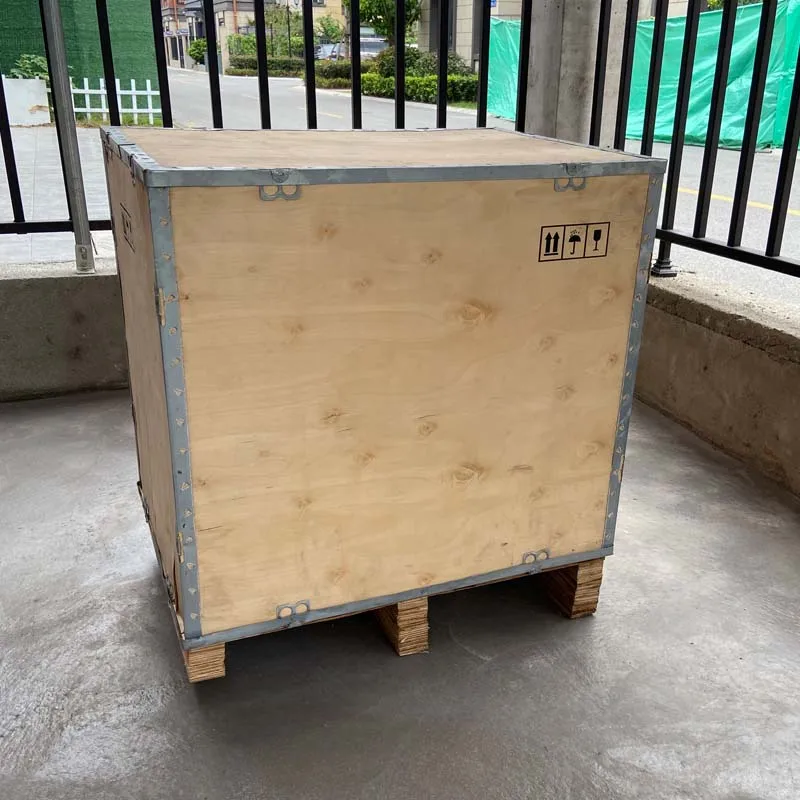

Packing size	682819cm
Number of Blades	3/5
Blades Material	Nylon fiber
Generator	Three phase AC permanent magnet synchronous generator
Control System	Electromagnetic/Wind wheel partial side
Direction Regulation Method	Automatically adjust windward direction
Working Temperature	-40℃-80℃
Tower Type	Guyed tower
