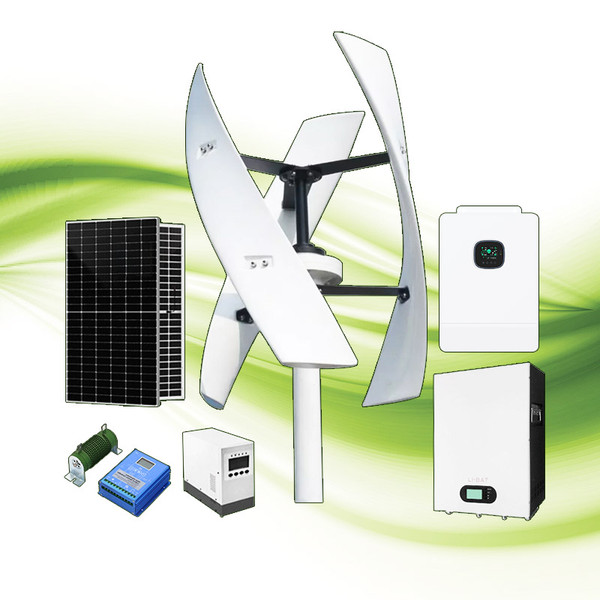

Product Overview
SPECIFICATIONS
Application: On / Off grid
Battery Type: Lithium Ion
Brand Name: RY
Guarantee period: Wind turbine 5Y / solar panel 25Y / inverter 5Y / battery 1Y
Model Number: RY-5KW
Output Frequency: 50Hz / 60Hz
Output Voltage: 12V/24V/48V
Output Voltage (V): 220VAC
Place of Origin: Jiangsu, China,Jiangsu, China
Pre-sales project design: Yes
Rated Voltage: 220V / 380V
Rated power: 5KW wind + 5KW solar =10kw
Surpport equipment: Controller, inverter, battery, etc

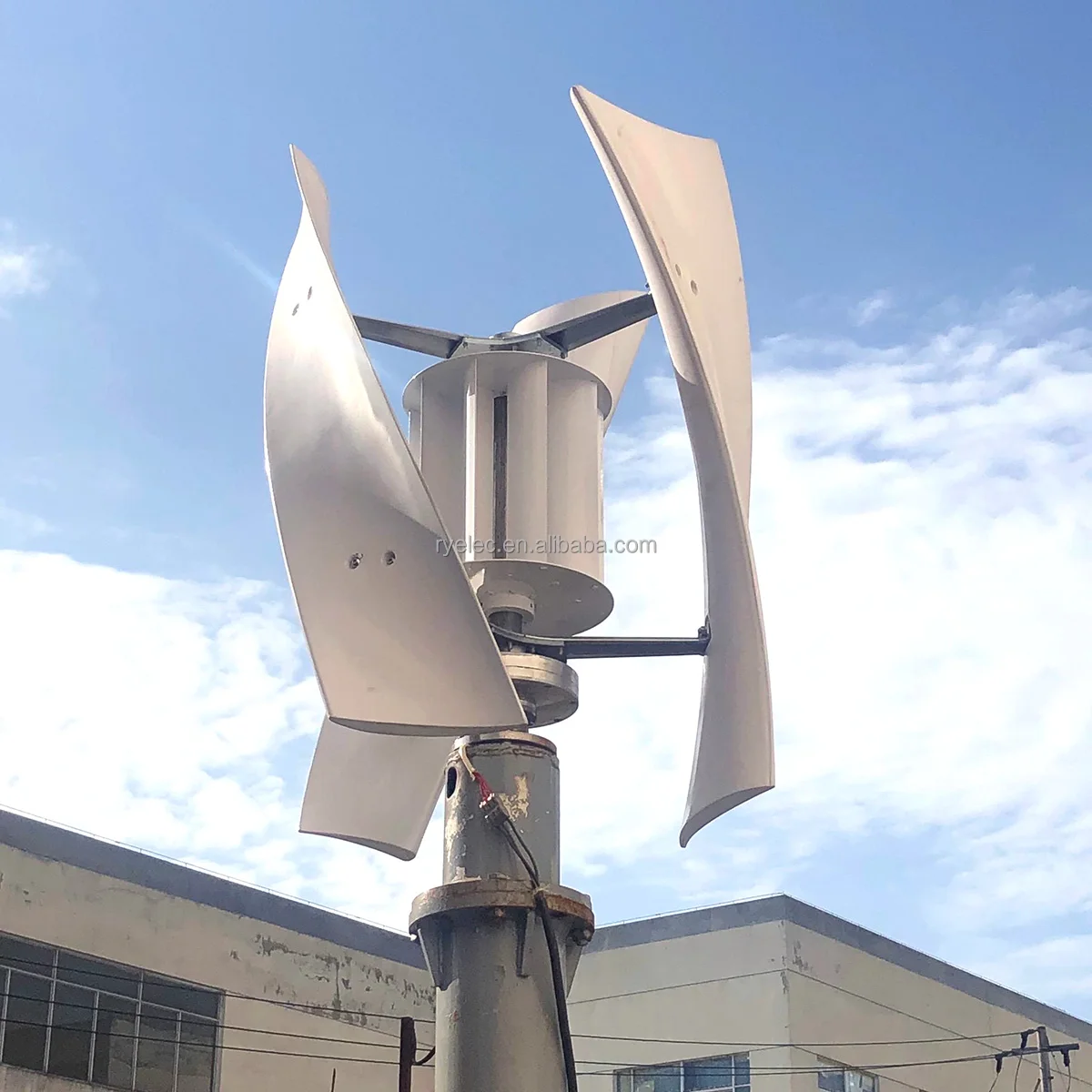

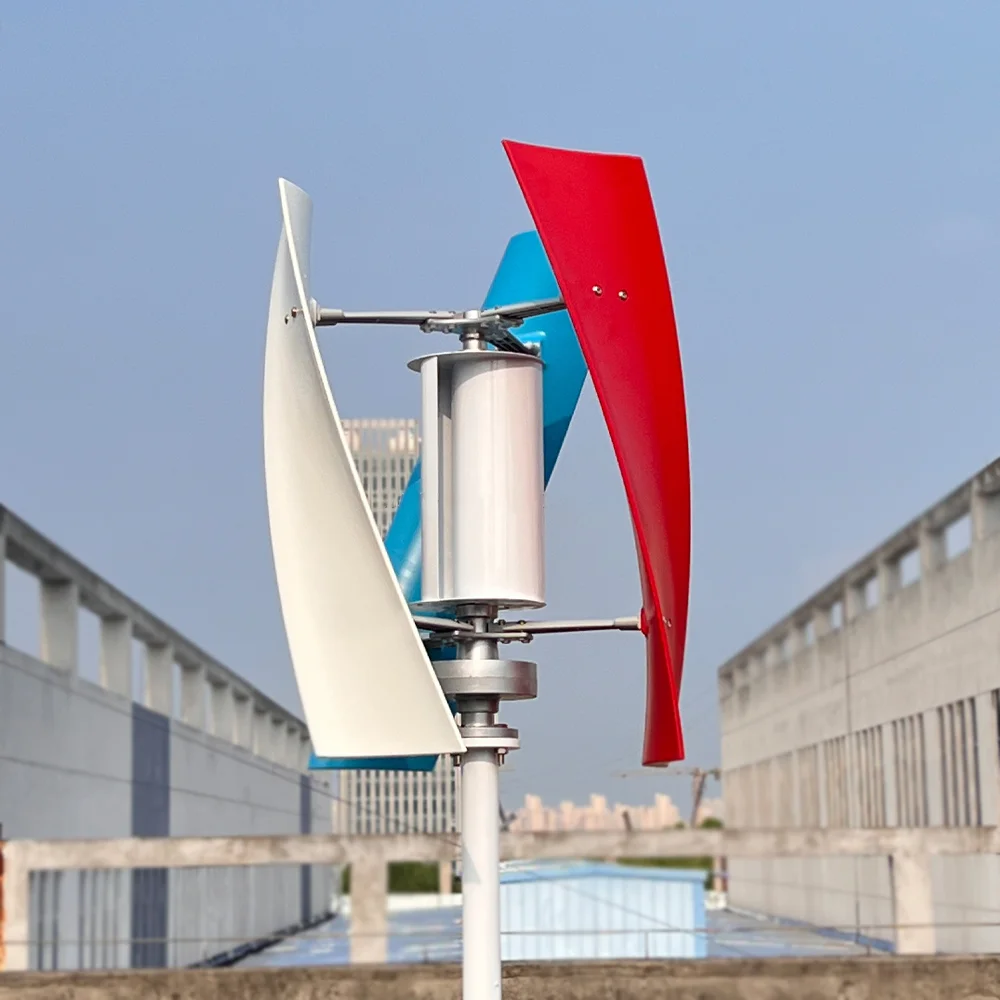

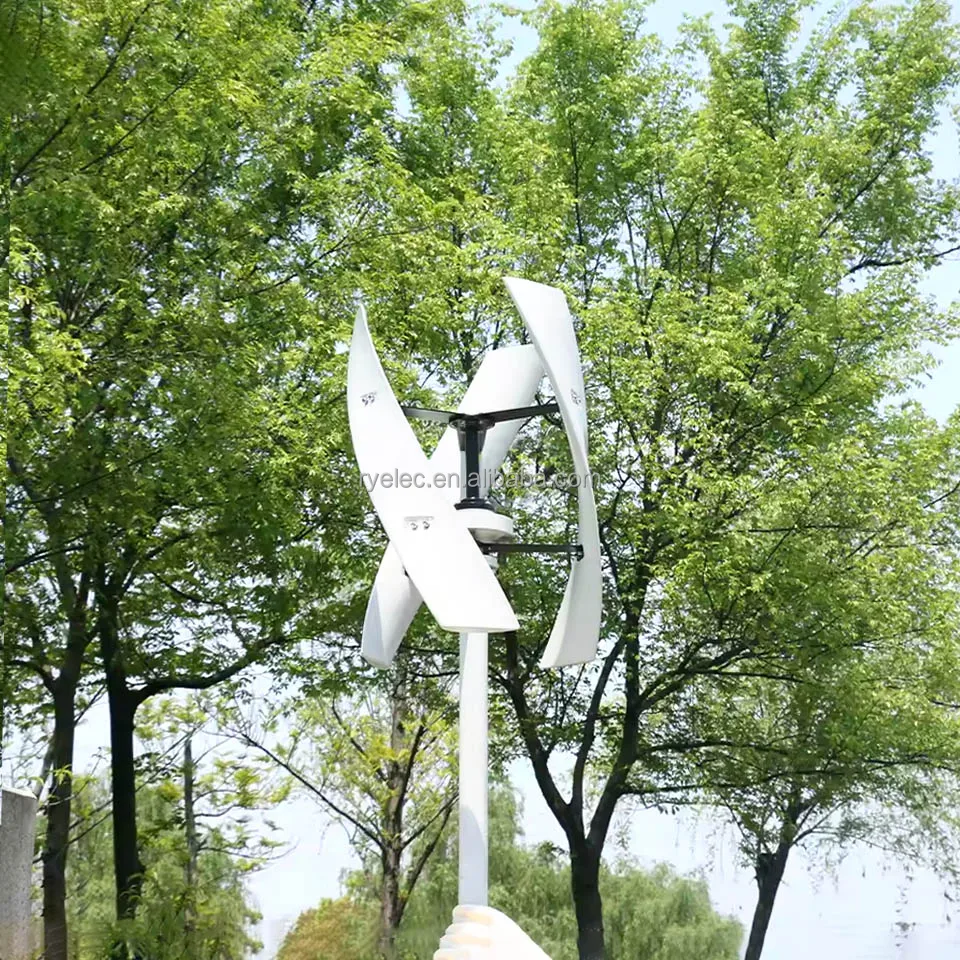

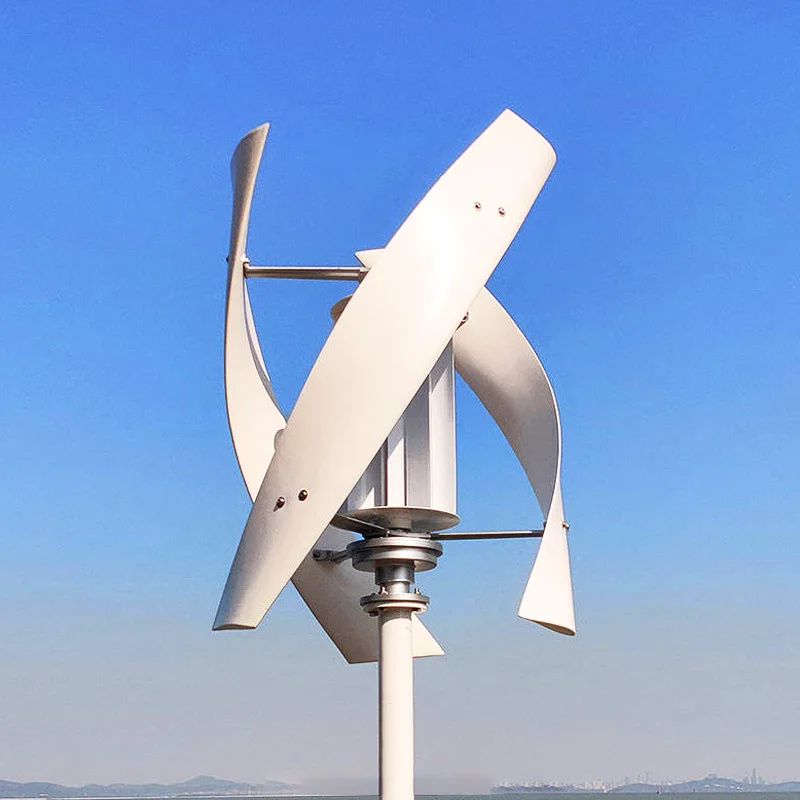

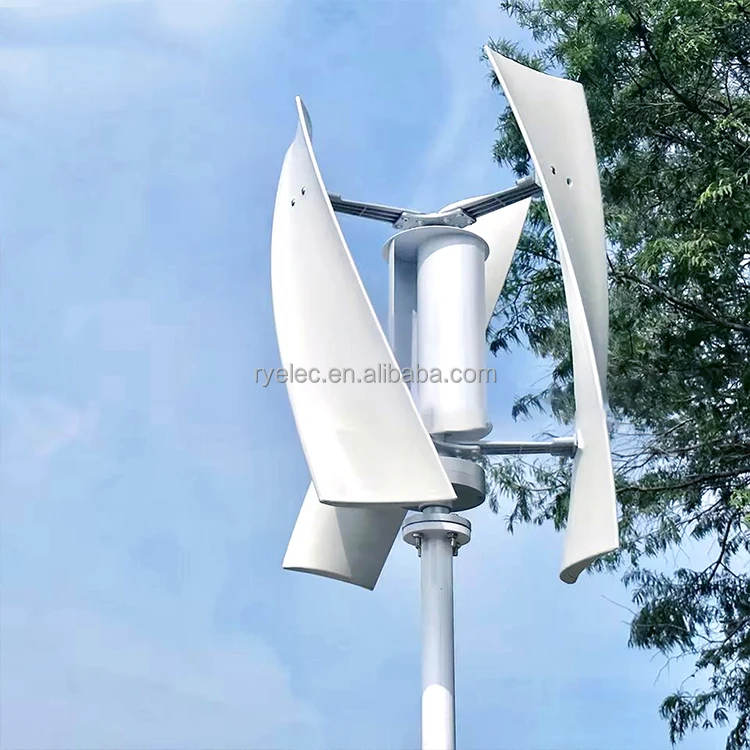

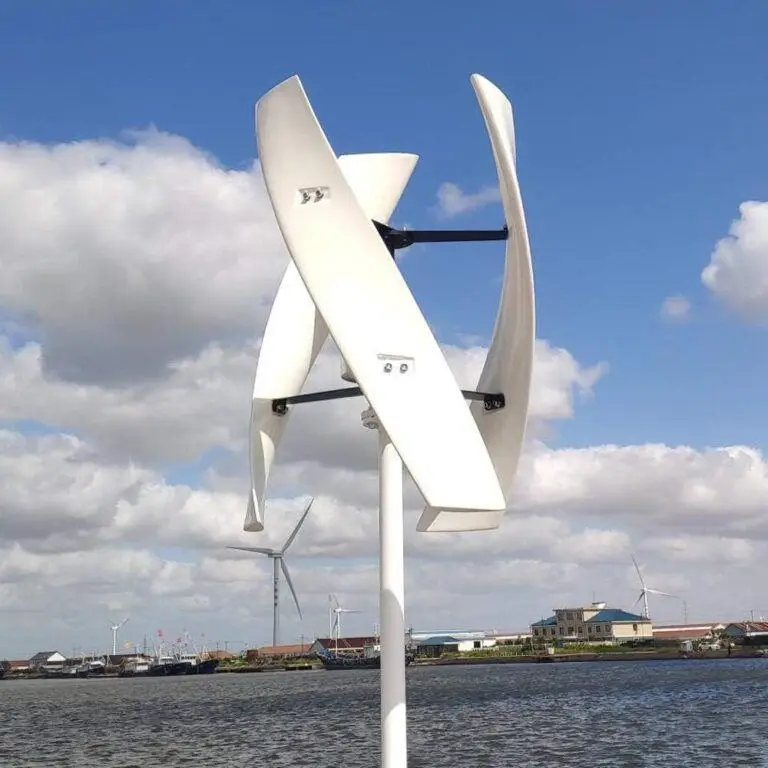

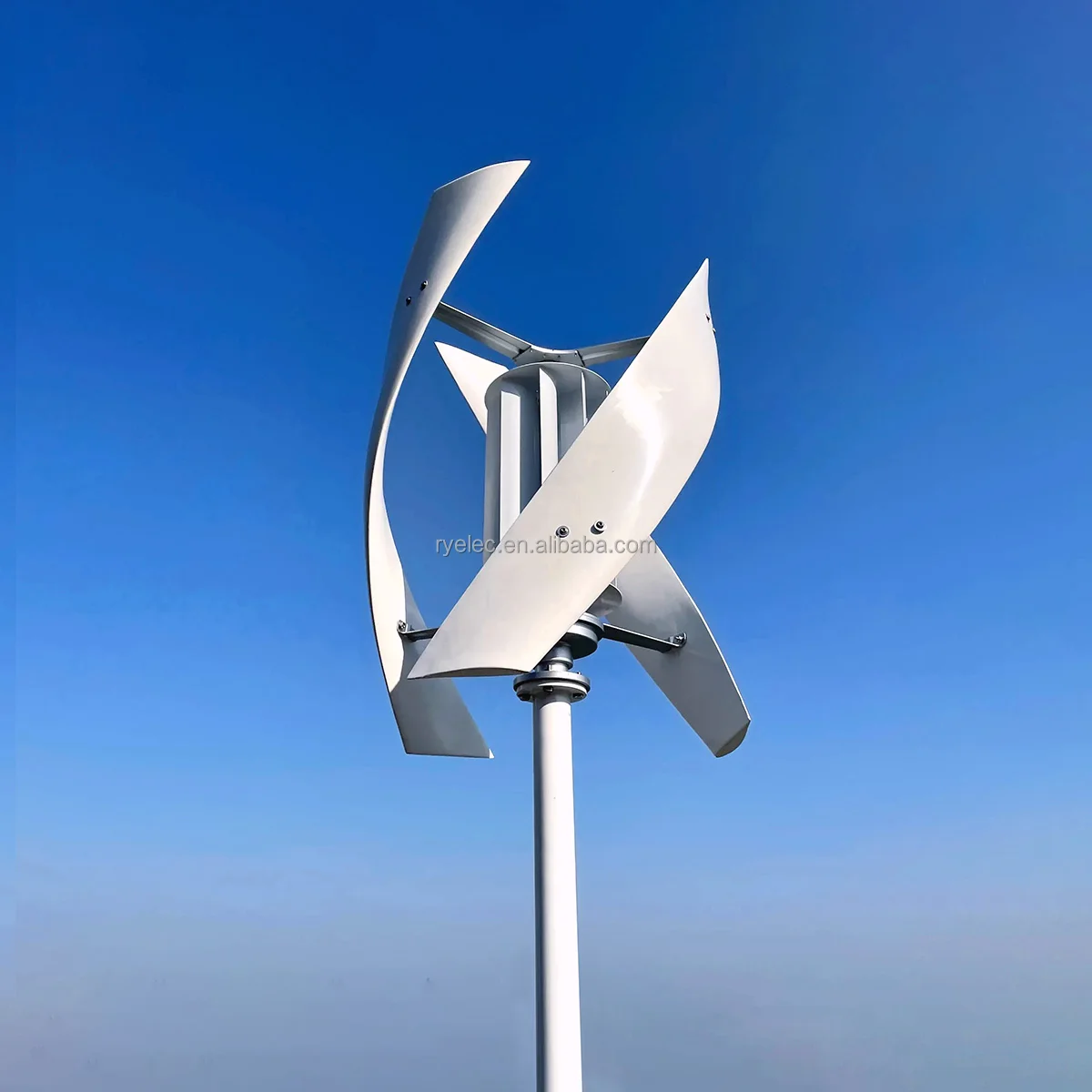

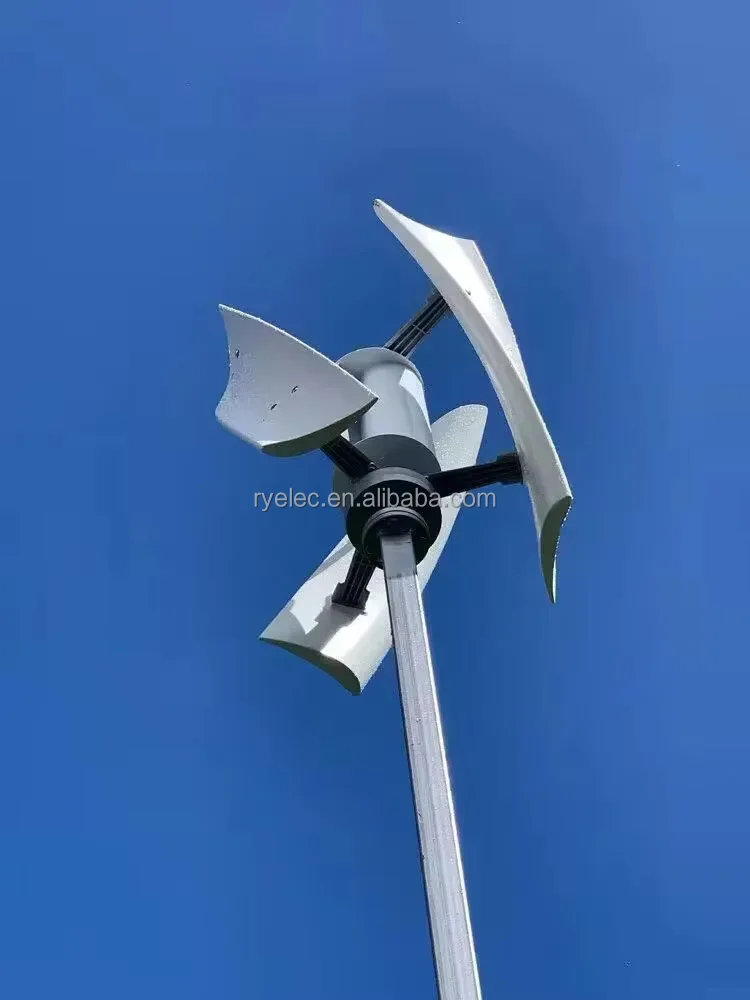

Composition and Function of Vertical Axis Wind Turbine
1. Blade: Reduce the starting wind speed, enhance the wind catching ability, usually using aluminum alloy or fiberglass, balancing strength and weather resistance.
2. Spindle: a carrier for converting wind energy into mechanical energy, with high strength and torsional resistance.
3. Generator: Convert mechanical energy into electrical energy, usually using magnetic levitation generators, which are very suitable for low-speed operation.
Model | RY-RX-800W | RY-RX-1000W | RY-RX-3000W | RY-RX-5000W | |
Rated power | 800W | 1000W | 3000W | 5000W | |
Maximum power | 850W | 1500W | 3500W | 5500W | |
Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | |
Start-up wind speed | 1.3 m/s | 1.3 m/s | 1.3 m/s | 1.3 m/s | |
Rated wind speed | 10m/s | 10m/s | 10m/s | 10m/s | |
Cut-in wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | |
Yaw mode: | automatic windward angle | automatic windward angle | Body material: | glass fibre | |
Generator: | Ironless magnetic levitation 3phase motor | Number of blades: | 3 pieces | ||
Control system: | electromagnetic brake | Working temperature: | -25~+45°C | ||




Breakthrough in wind turbine technology in low wind areas
1. Design breakthrough: Redesign the blade profile angle and blade edge optimization, focusing on laminar air capture and thereby enhancing torque.
2. Material breakthrough: Adopting independently developed new generation glass fiber materials, optimizing the proportion of resin, MgO, SiO ₂ and other elements in the composition, making the blades more elastic, with better ductility and a wider range of wind harvesting.
3. Generator breakthrough: Adopting a coreless magnetic levitation generator with low torque and no rotor, even though the efficiency is not as good as a permanent magnet generator at high power, it is already sufficient for household use.

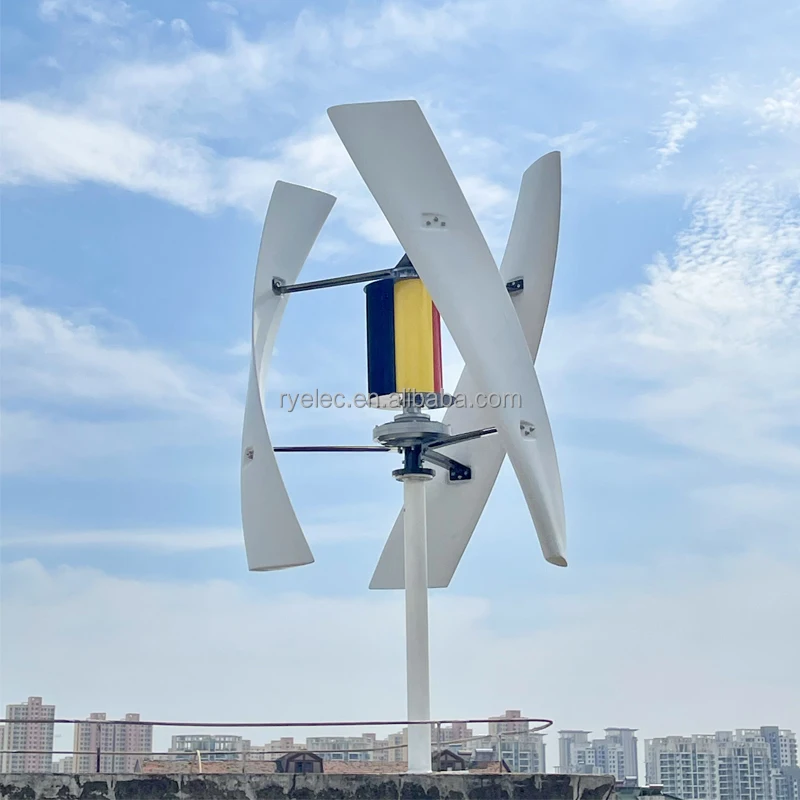

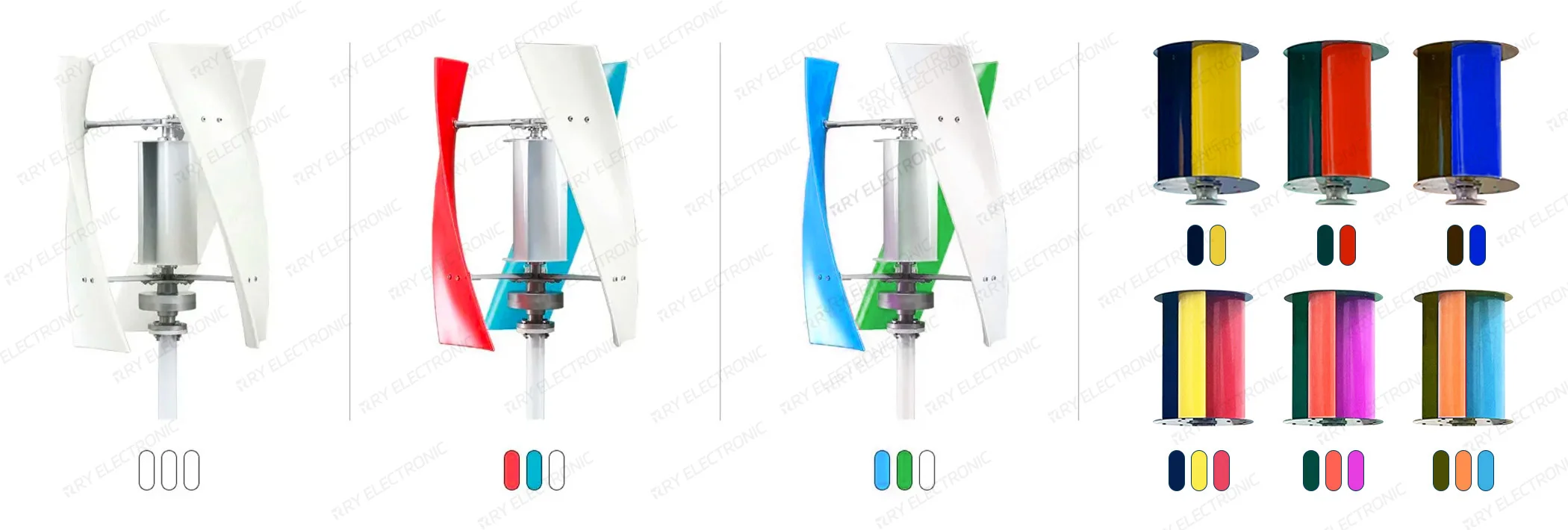

4. Breakthrough in drum design: Multiple styles of drums suitable for different wind conditions can effectively reduce the starting wind speed to 1.5m/s.



The huge advantages of permanent magnet generators in the household field
1. Zero friction of bearings: Within the observable range, there is almost zero mechanical friction, which fundamentally reduces the friction loss of the generator and greatly reduces the operating torque.
2. Daily zero maintenance: The power generation function relies on the mutual magnetic field between the electromagnetic coil and the permanent magnet to do work, and there is zero mechanical friction, so that the generator does not need any maintenance during its basic service life.
3. High speed: The upper limit of the speed is much higher than that of the permanent magnet generator, making it less prone to spontaneous combustion and damage at high wind speeds, reducing damage in extreme weather conditions.

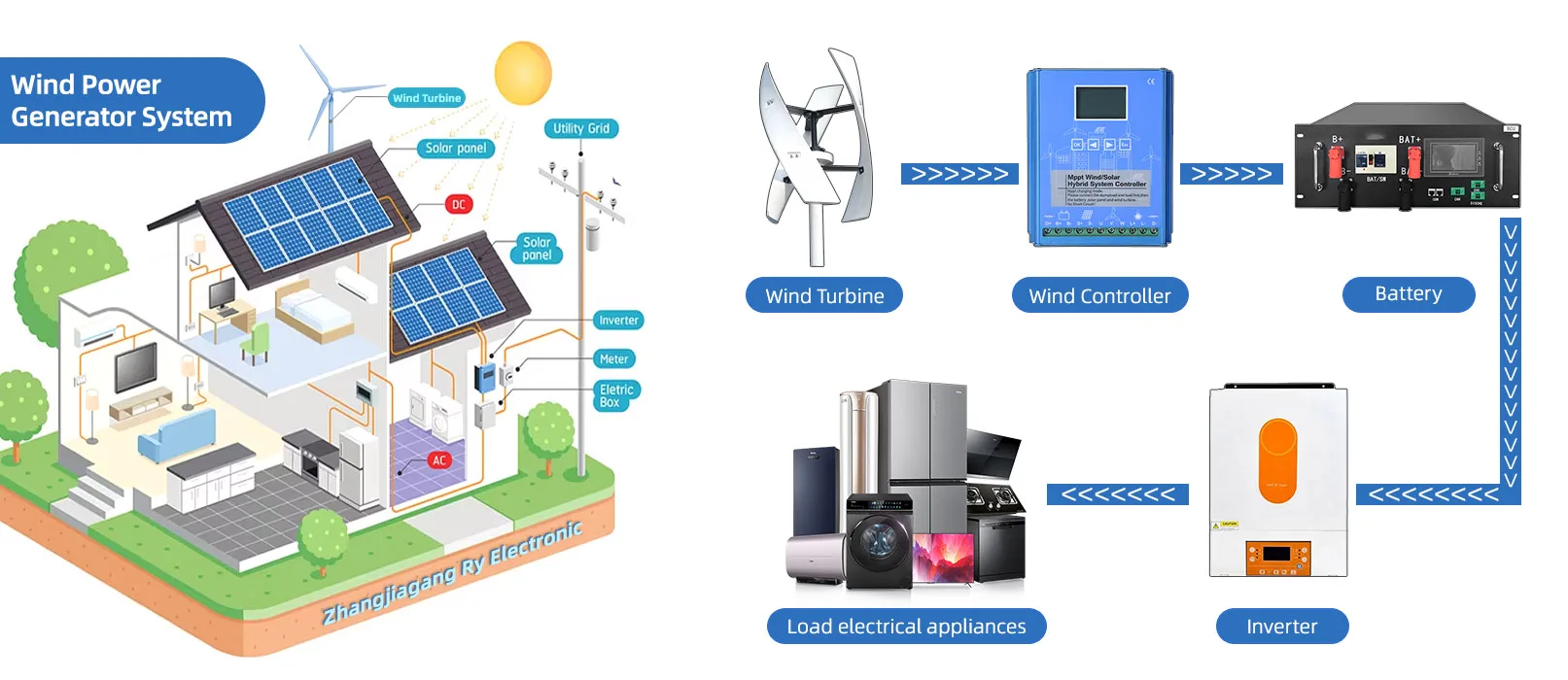

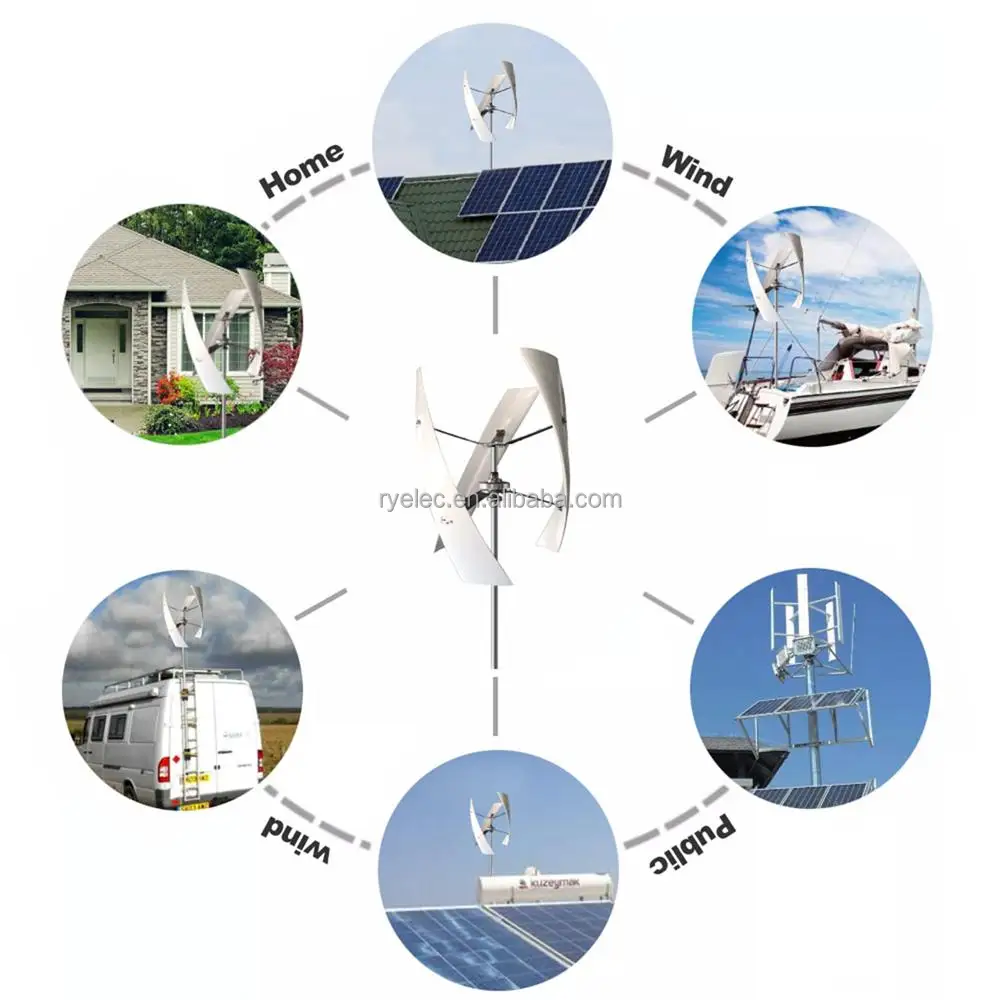

The versatility of wind solar complementary systems
1. Off-Grid Wind Turbine System
A standalone system that generates electricity from wind, storing energy in batteries for use without grid connection. Includes a turbine, charge controller, battery bank, and inverter. Ideal for remote areas.

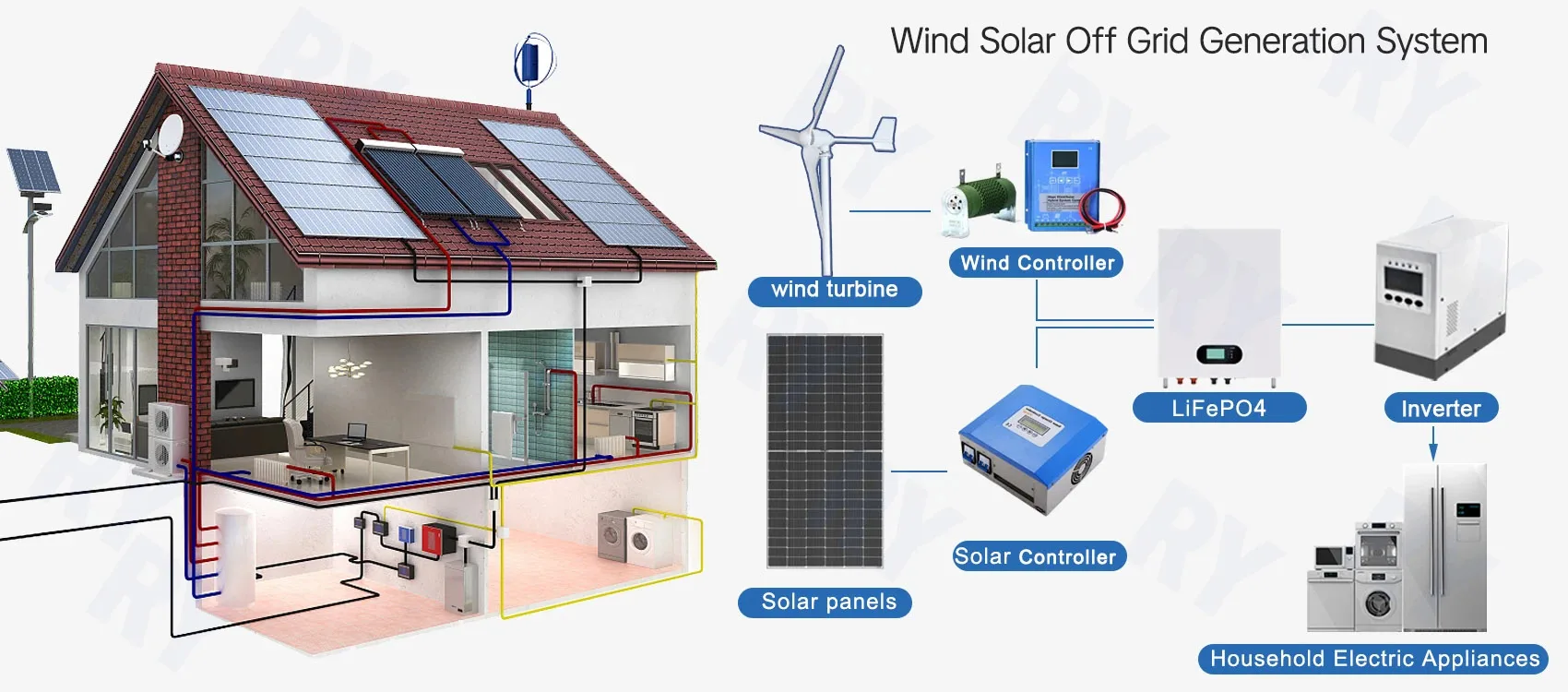

2. Off-Grid Wind-Solar Hybrid System
Combines wind and solar power for reliable off-grid energy. Uses turbines, solar panels, a hybrid charge controller, batteries, and an inverter. Best for locations with varying weather.

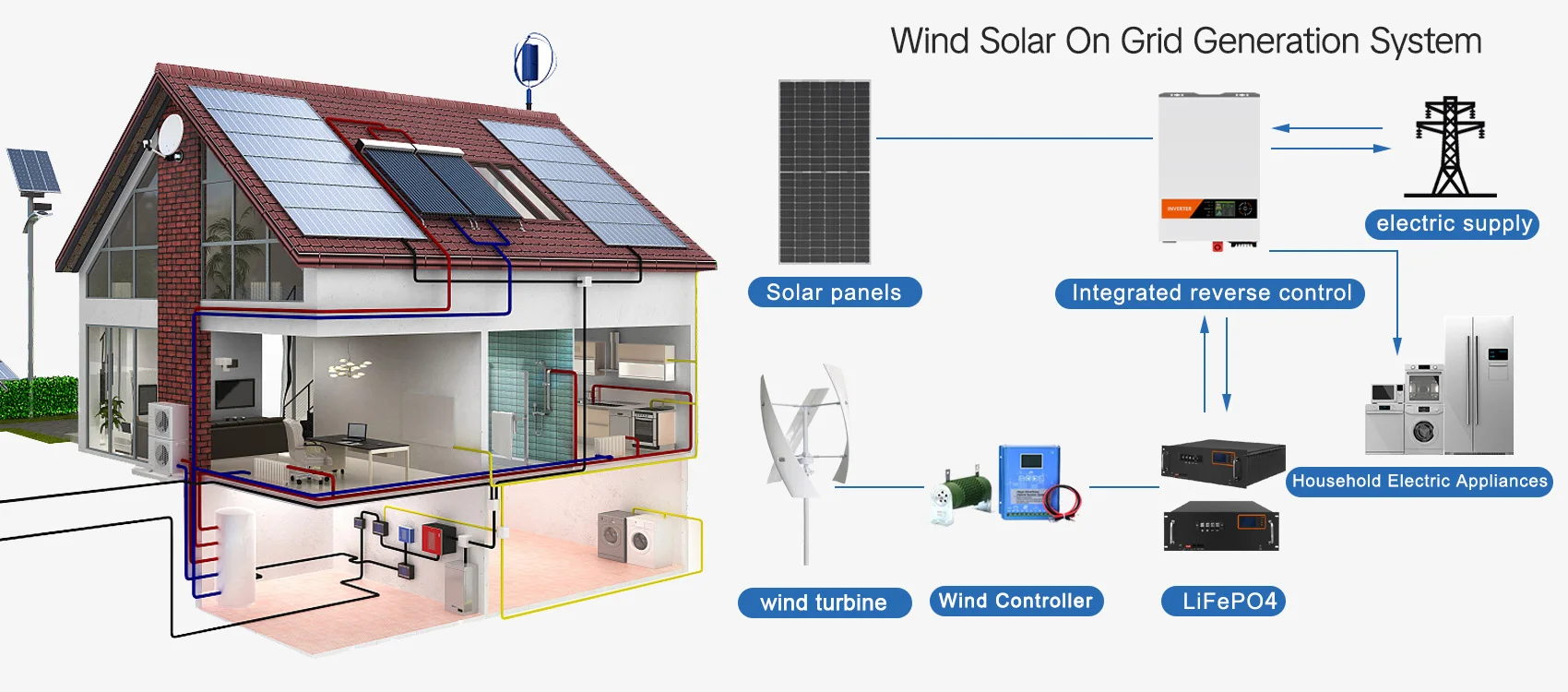

3. Grid-Tied Wind-Solar Hybrid System
Connects wind and solar power to the grid, allowing excess energy to be fed back. Includes turbines, solar panels, a hybrid
inverter, and grid interface. Reduces electricity costs and supports renewable energy.
A standalone system that generates electricity from wind, storing energy in batteries for use without grid connection. Includes a turbine, charge controller, battery bank, and inverter. Ideal for remote areas.
2. Off-Grid Wind-Solar Hybrid System
Combines wind and solar power for reliable off-grid energy. Uses turbines, solar panels, a hybrid charge controller, batteries, and an inverter. Best for locations with varying weather.
3. Grid-Tied Wind-Solar Hybrid System
Connects wind and solar power to the grid, allowing excess energy to be fed back. Includes turbines, solar panels, a hybrid
inverter, and grid interface. Reduces electricity costs and supports renewable energy.
