Product Overview
SPECIFICATIONS
Blade Material: Nylon Fiber
Blades numbers: 3/5pcs
Brand Name: ENGELEC
Item: small wind turbine generator 12v
Max. power: 410W
Model Number: EN-400W-S
Output Voltage: 12V/24V
Place of Origin: Zhejiang, China
Rated Voltage: 12/24V
Rated power: 400W
Rated wind speed: 13m/s
Start wind speed: 1.5m/s
Start-up wind speed: 2.0m/s
Survival wind speed: 50m/s
Wind wheel diameter: 1.4m
rotor diameter: 1.4M

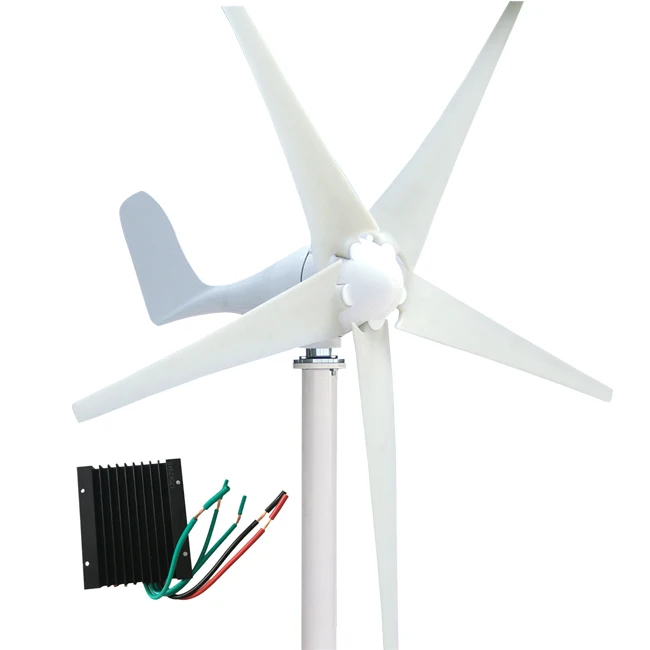

Garden Power Supply 400W Wind Generator Solar Hybrid Quick Charge For Home TV Fans Lights Small Wind Turbine Generator 12V
Products Description
5pcs Blades
3pcs Blades
The small-scale horizontal axis wind turbine designed for residential, off-grid, or supplemental energy applications.
Features
1. It is highly efficient at converting wind energy into electricity, even at lower wind speeds.
2. Provides clean, sustainable power, reducing reliance on fossil fuels.
3. Low Maintenance: Simple design with fewer moving parts compared to some vertical axis turbines.
4. Cost-Effective: Affordable for small-scale applications and can reduce electricity bills over time.
Applications:
1. Residential Use: Powers small homes, cabins, or sheds, especially in remote or off-grid locations.
2. Battery Charging: Charges batteries for RVs, boats, or telecommunications equipment.
3. Supplemental Power: Complements solar panels or other renewable energy systems in hybrid setups.
4. Agricultural Use: Powers water pumps, lighting, or small equipment on farms.
5. It can power small appliances like lights, fans, TVs, or refrigerators in an off-grid cabin. When paired with a battery
system, it can store energy for use during calm periods.
Features
1. It is highly efficient at converting wind energy into electricity, even at lower wind speeds.
2. Provides clean, sustainable power, reducing reliance on fossil fuels.
3. Low Maintenance: Simple design with fewer moving parts compared to some vertical axis turbines.
4. Cost-Effective: Affordable for small-scale applications and can reduce electricity bills over time.
Applications:
1. Residential Use: Powers small homes, cabins, or sheds, especially in remote or off-grid locations.
2. Battery Charging: Charges batteries for RVs, boats, or telecommunications equipment.
3. Supplemental Power: Complements solar panels or other renewable energy systems in hybrid setups.
4. Agricultural Use: Powers water pumps, lighting, or small equipment on farms.
5. It can power small appliances like lights, fans, TVs, or refrigerators in an off-grid cabin. When paired with a battery
system, it can store energy for use during calm periods.

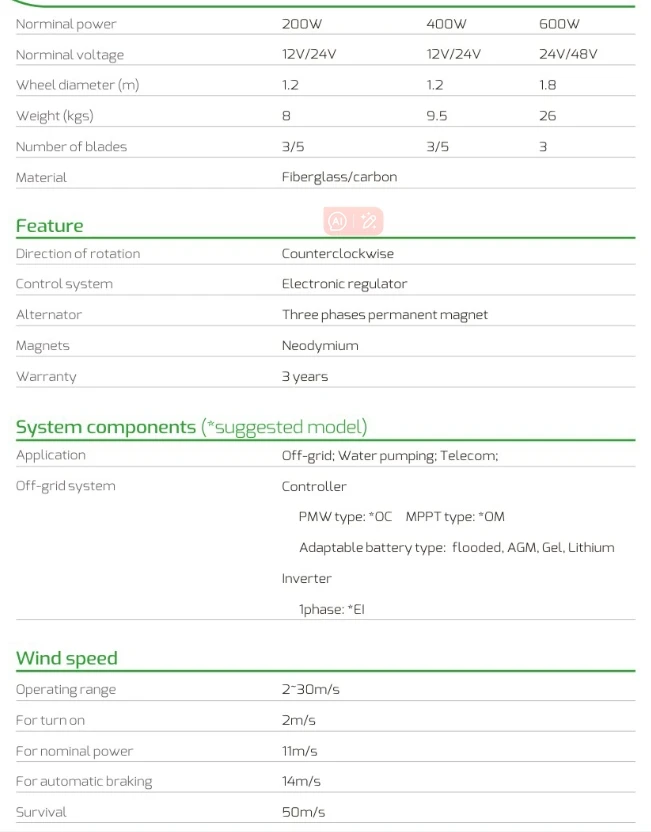

Product Paramenters
Model | EN-100W-S | EN-200W-S | EN-300W-S | EN-400W-S | |||
Rated Power | 100W | 200W | 300W | 2000W | |||
Max. power | 120W | 220W | 310W | 2300W | |||
Rated voltage | 12/24V | 12/24V | 12/24V | 48V/96V | |||
Start-up wind speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s | |||
Rated wind speed | 10m/s | 11m/s | 12m/s | 12m/s | |||
Survival wind speed | 55m/s | 55m/s | 55m/s | 55m/s | |||
Top net weight | 6kg | 6.2kg | 6.5kg | 6.8kg | |||
Wind wheel diameter | 1.2m | 1.3m | 1.35m | 1.4m | |||
Number of blades | 3/5pcs | ||||||
Blades material | Nylon fiber | ||||||
Generator | Three phase AC permanent magnet generator | ||||||
Magnetic steel | NdFeB | ||||||
Controller system | Electromagnet | ||||||
Speed regulation | The wind Angle automatically | ||||||
Working temperature | -40°C~80°C | ||||||
Generator case | Die-casting aluminium | ||||||

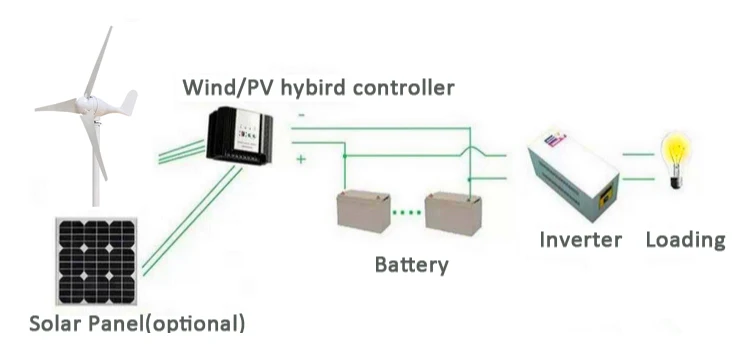

System Connection
Project Sample

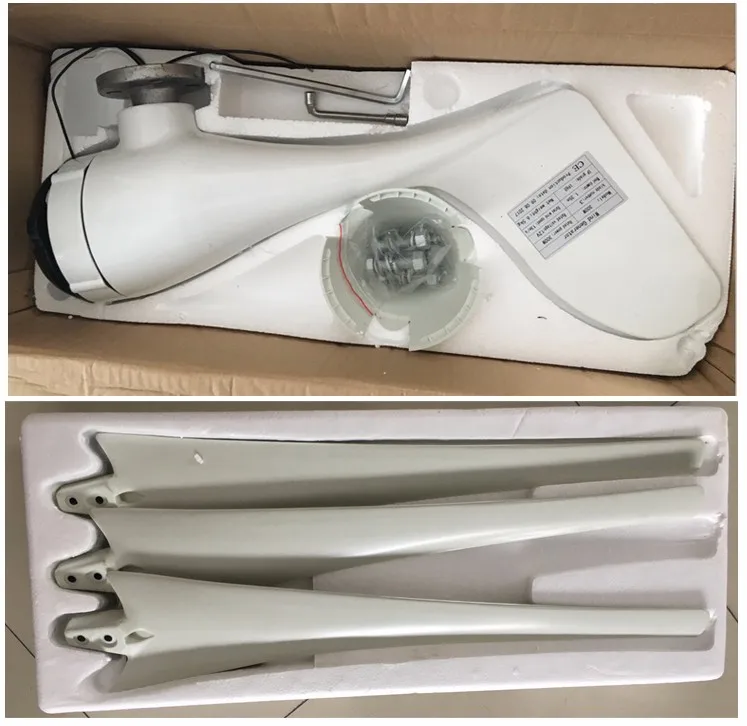

Packing
Factory Show
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 1-3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Sample is available ,but sample should be paid in advance.
Q7. How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 1-3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Sample is available ,but sample should be paid in advance.
Q7. How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
